Description

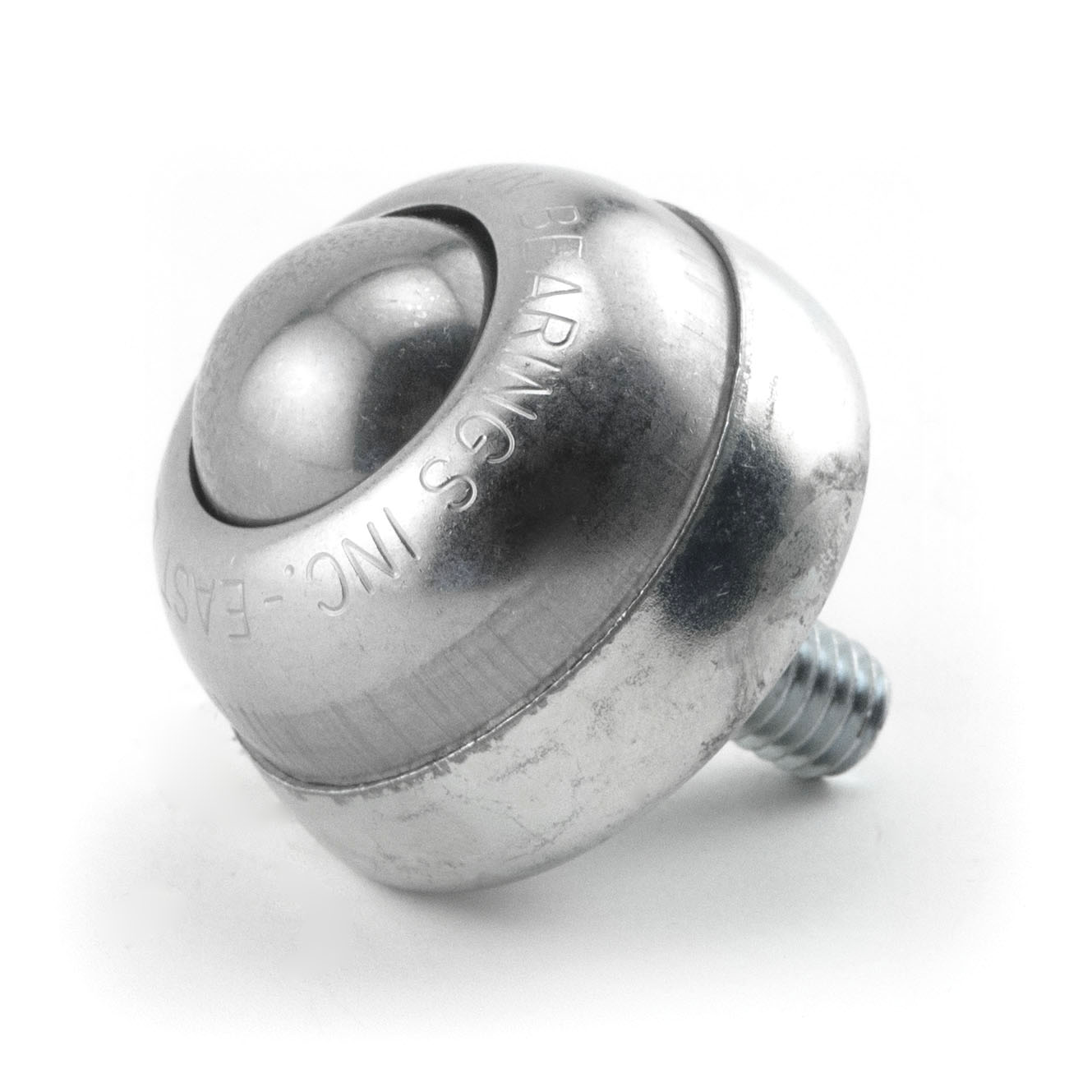

STUD-MOUNTED, ALL-STEEL
- Threaded stud sizes available: 1/4-20, 5/16-18, 3/8-16
- 1” Main ball rotates on 1/8” support balls.
- Ball support cup is hardened and plated.
- Protective cover assures low torque and longevity.

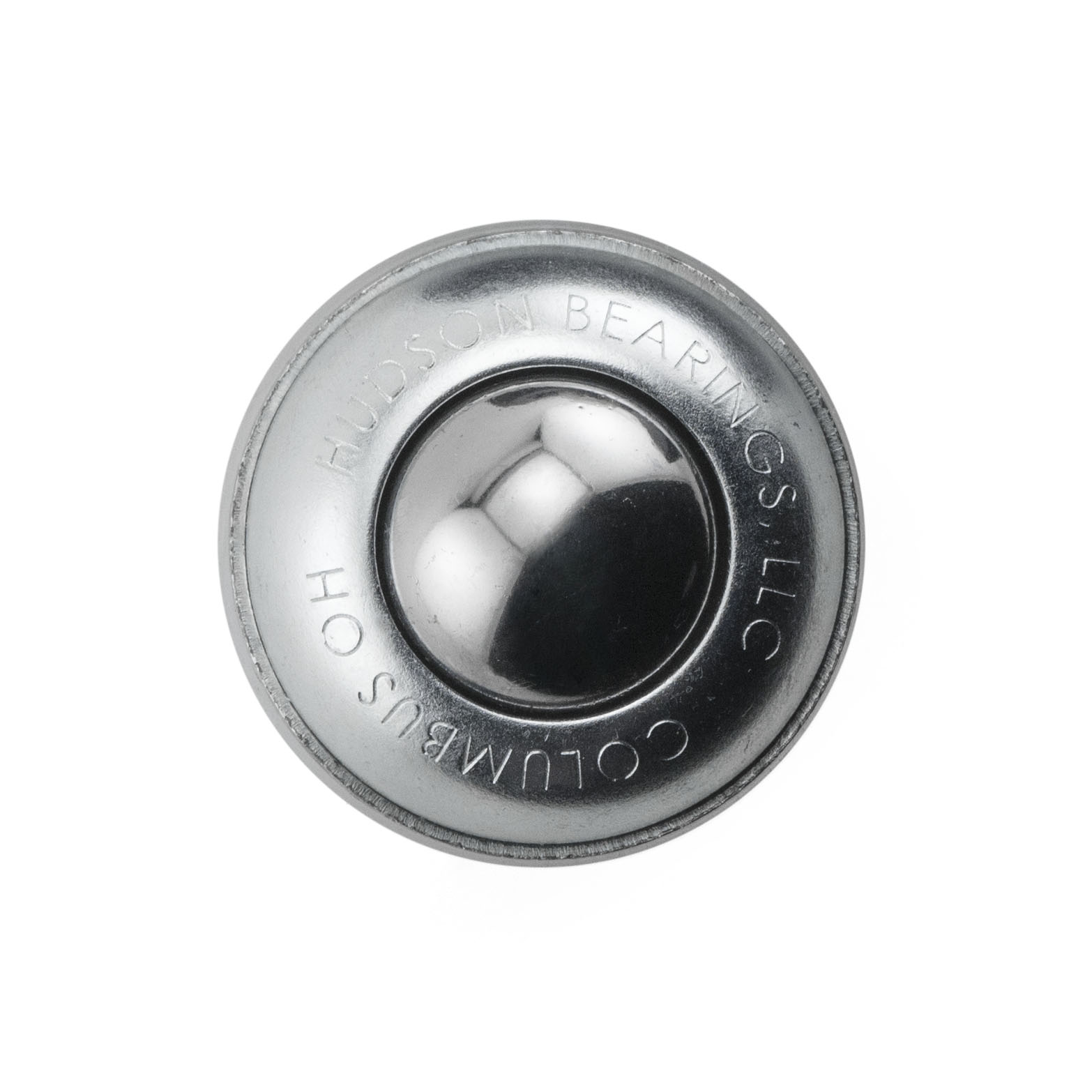

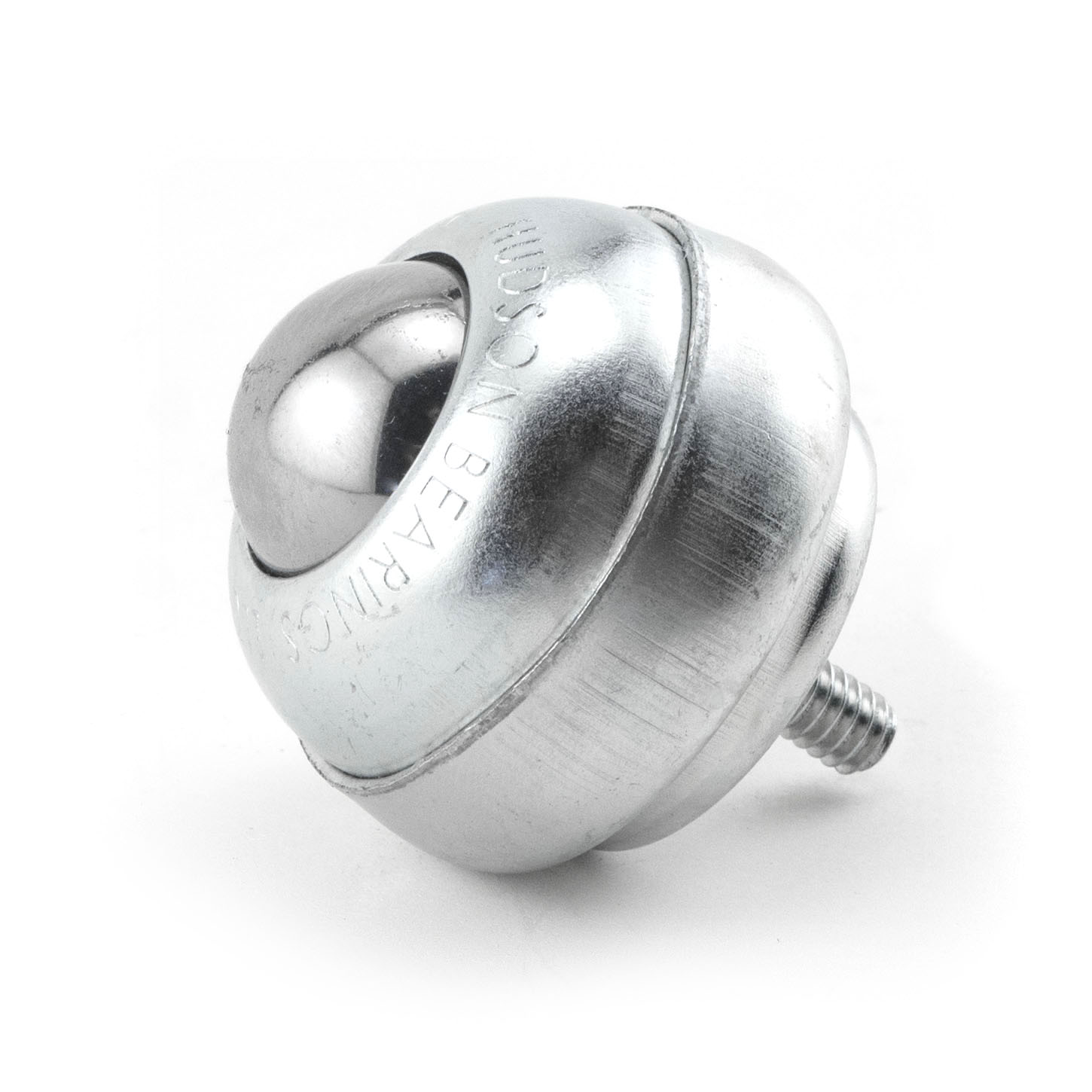

NOTE: Also available with a base to ball height of 1-17/32” in 1/4” stud only (Part number DSBT 1)
Download the SBT-1 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|
| SBT 1 CS | Carbon Steel | Carbon Steel | 75 lbs |
| NSBT 1 CS | Nylon | Carbon Steel | 75 lbs |
| SBT 1 CS/SS | Stainless Steel | Carbon Steel | 75 lbs |
| SBT 1 SS | Stainless Steel | Stainless Steel | 75 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every SBT-1 Series part number:

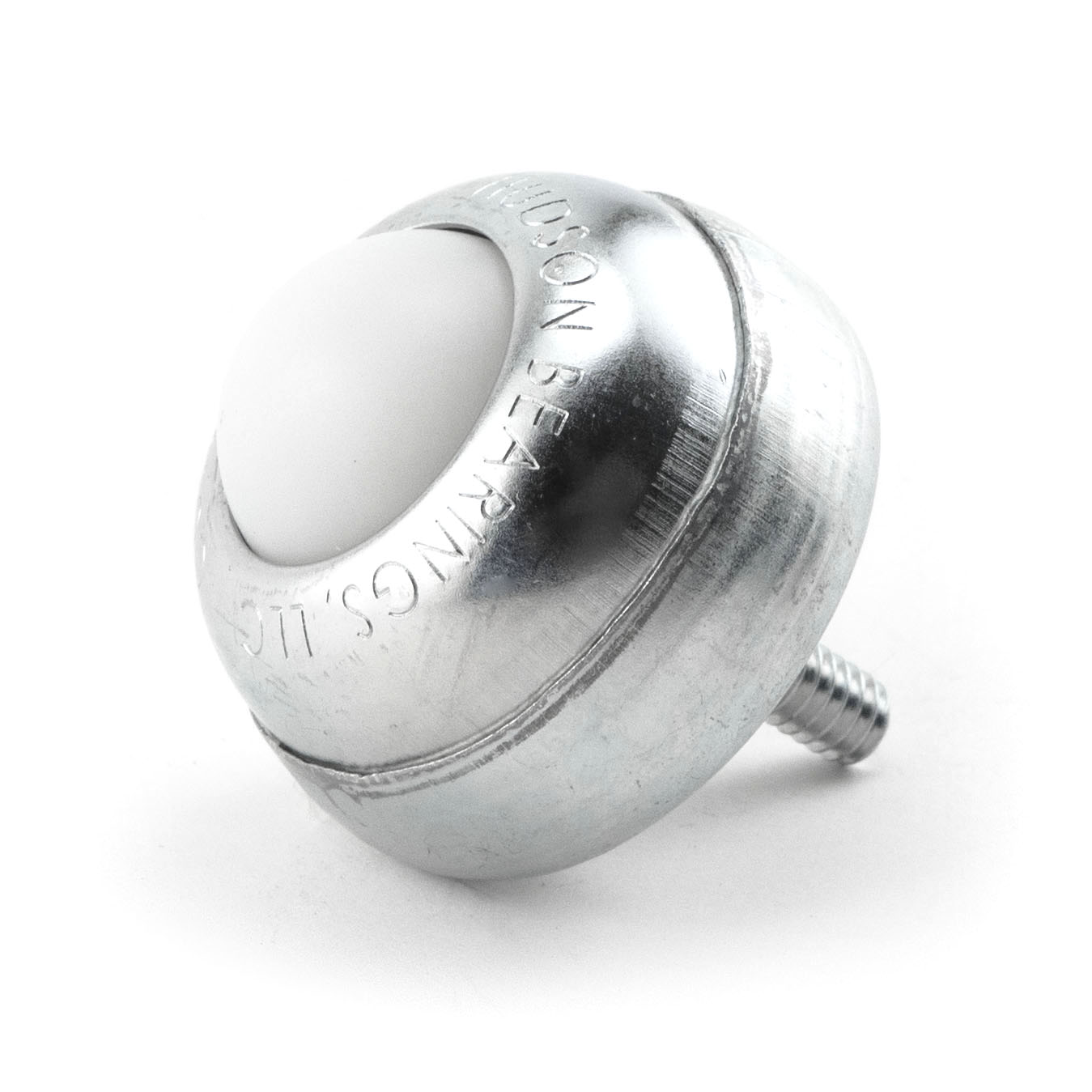

- NSBT-1CS 1/4 – nylon, 75 lbs, 1/4-20 stud

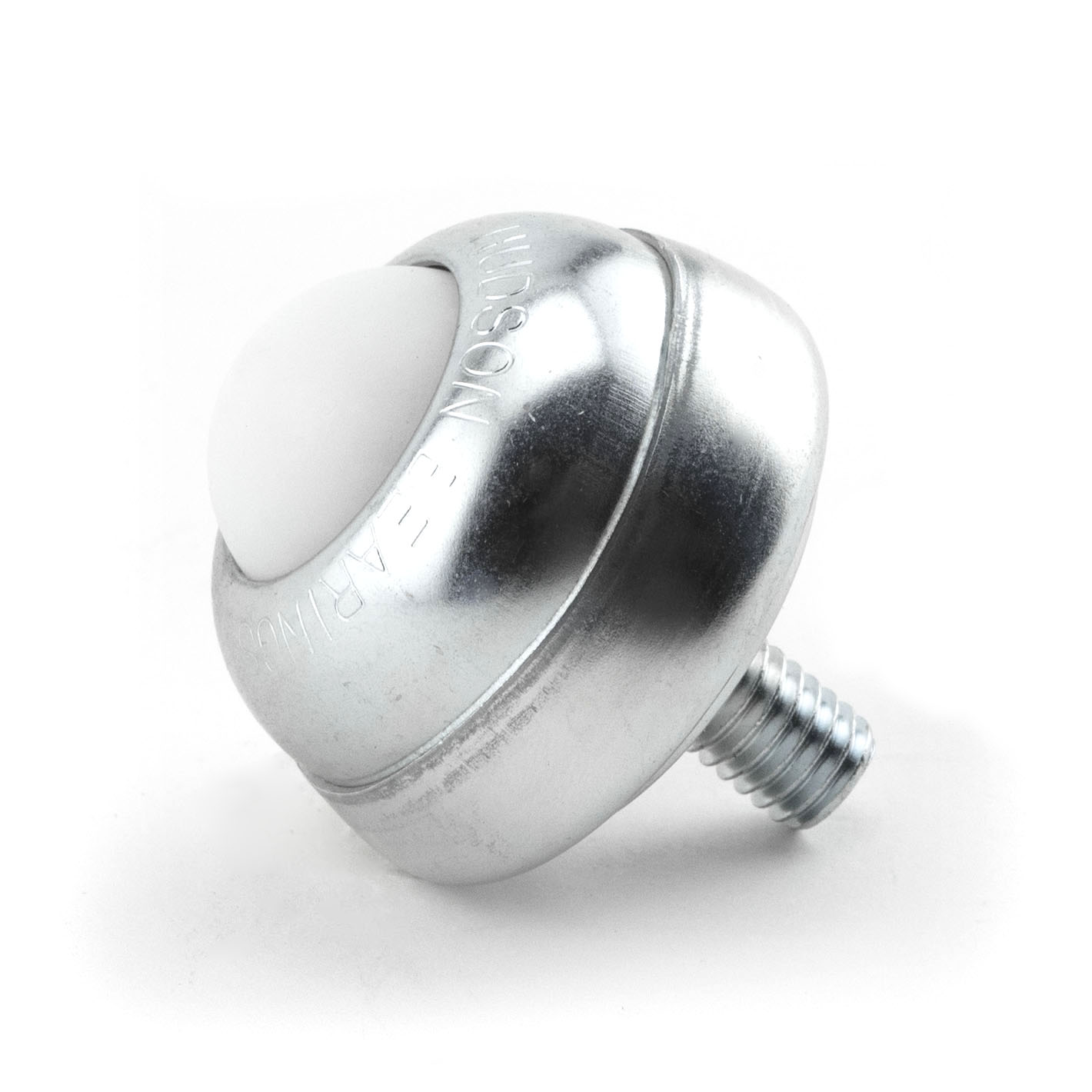

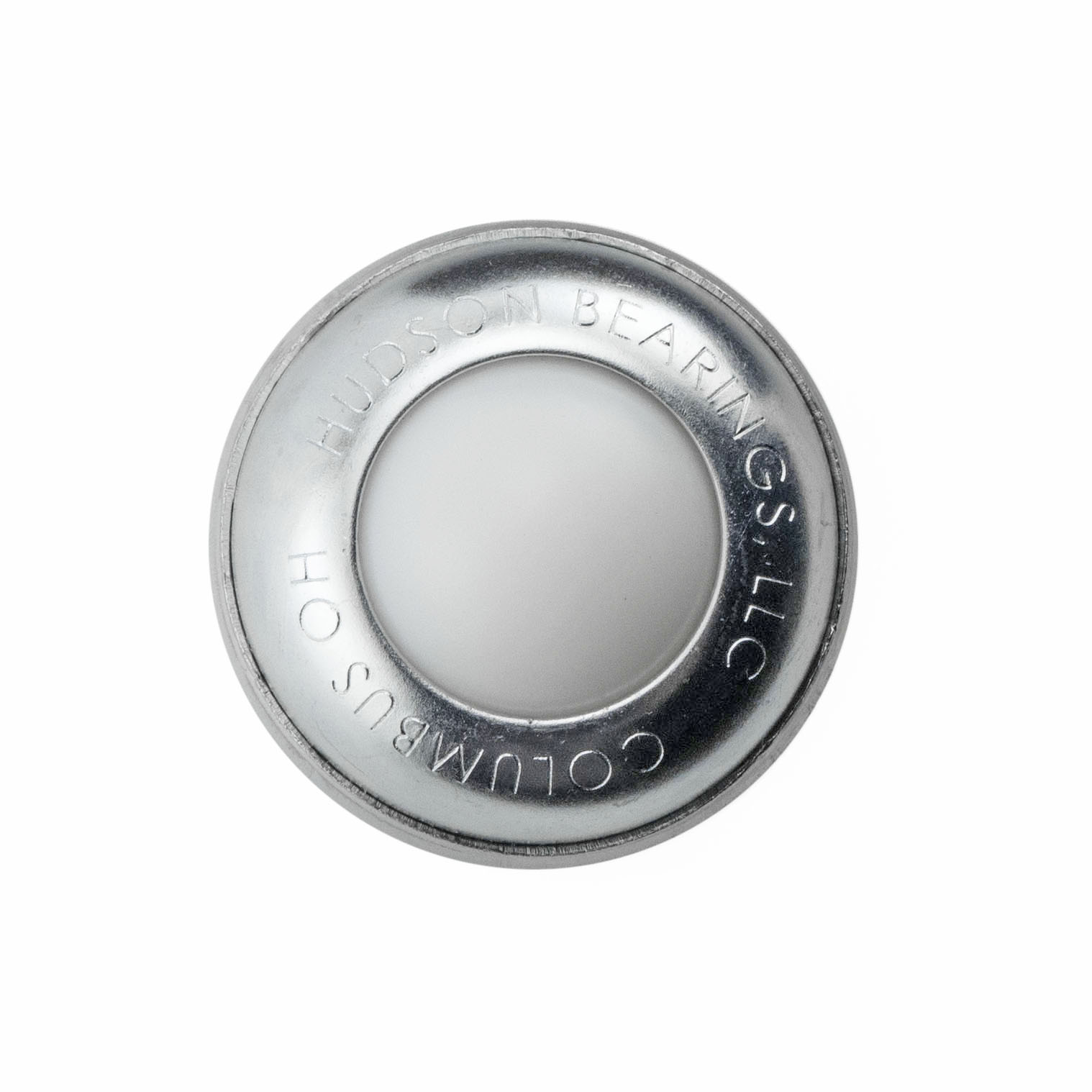

- NSBT-1CS 3/8 – nylon, 75 lbs, 3/8-16 stud

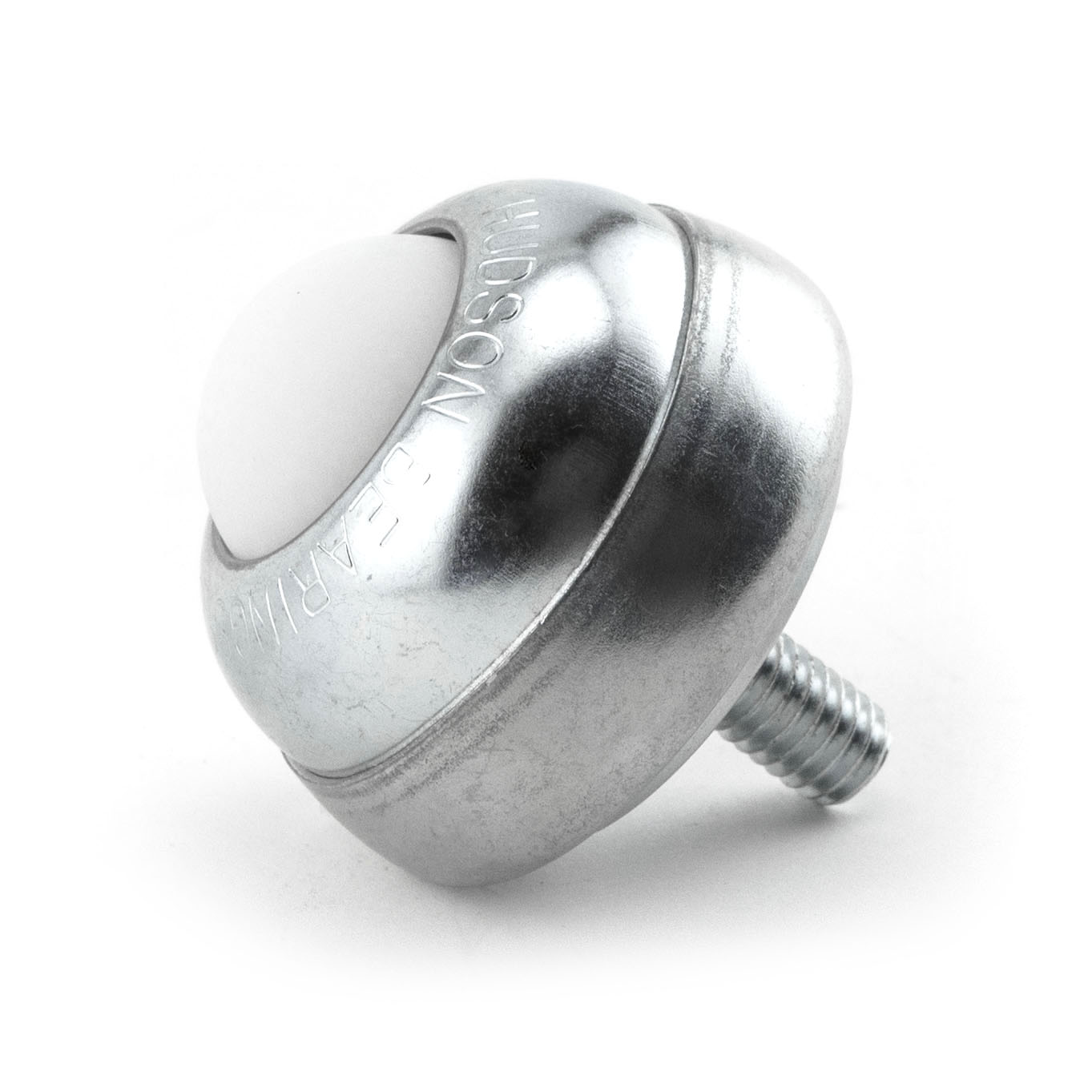

- NSBT-1CS 5/16 – nylon, 75 lbs, 5/16-18 stud
- NSBT-1CS/SS 1/4 – nylon, 1/4-20 stud
- NSBT-1CS/SS 3/8 – nylon, 3/8-16 stud
- NSBT-1CS/SS 5/16 – nylon, 5/16-18 stud
- NSBT-1SS 1/4 – nylon, 1/4-20 stud
- NSBT-1SS 3/8 – nylon, 3/8-16 stud
- NSBT-1SS 5/16 – nylon, 5/16-18 stud
- SBT-1 CS/SS 1/4 – stainless steel, 75 lbs, 1/4-20 stud

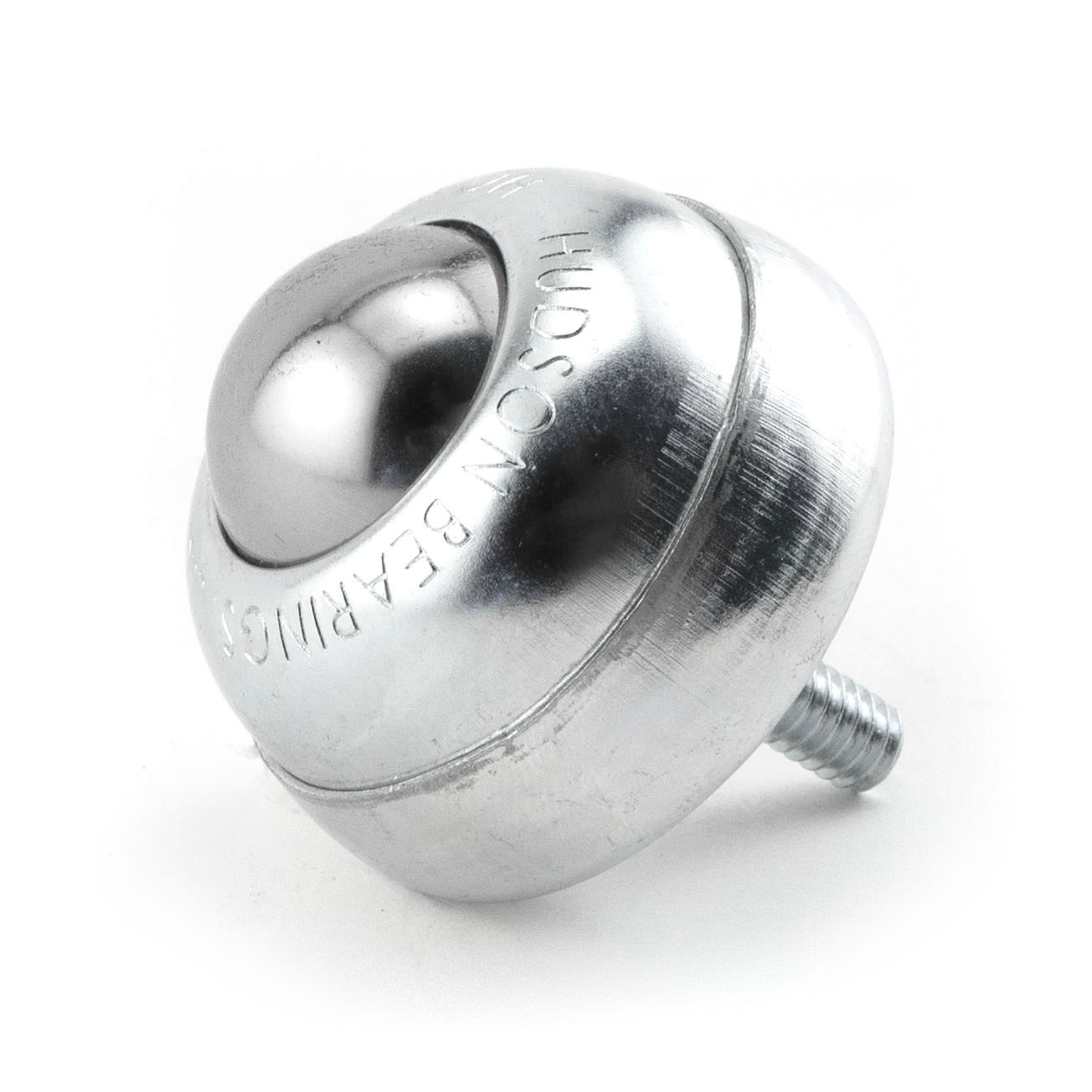

- SBT-1CS 1/4 – carbon steel, 75 lbs, 1/4-20 stud
- SBT-1CS 3/8 – carbon steel, 75 lbs, 3/8-16 stud

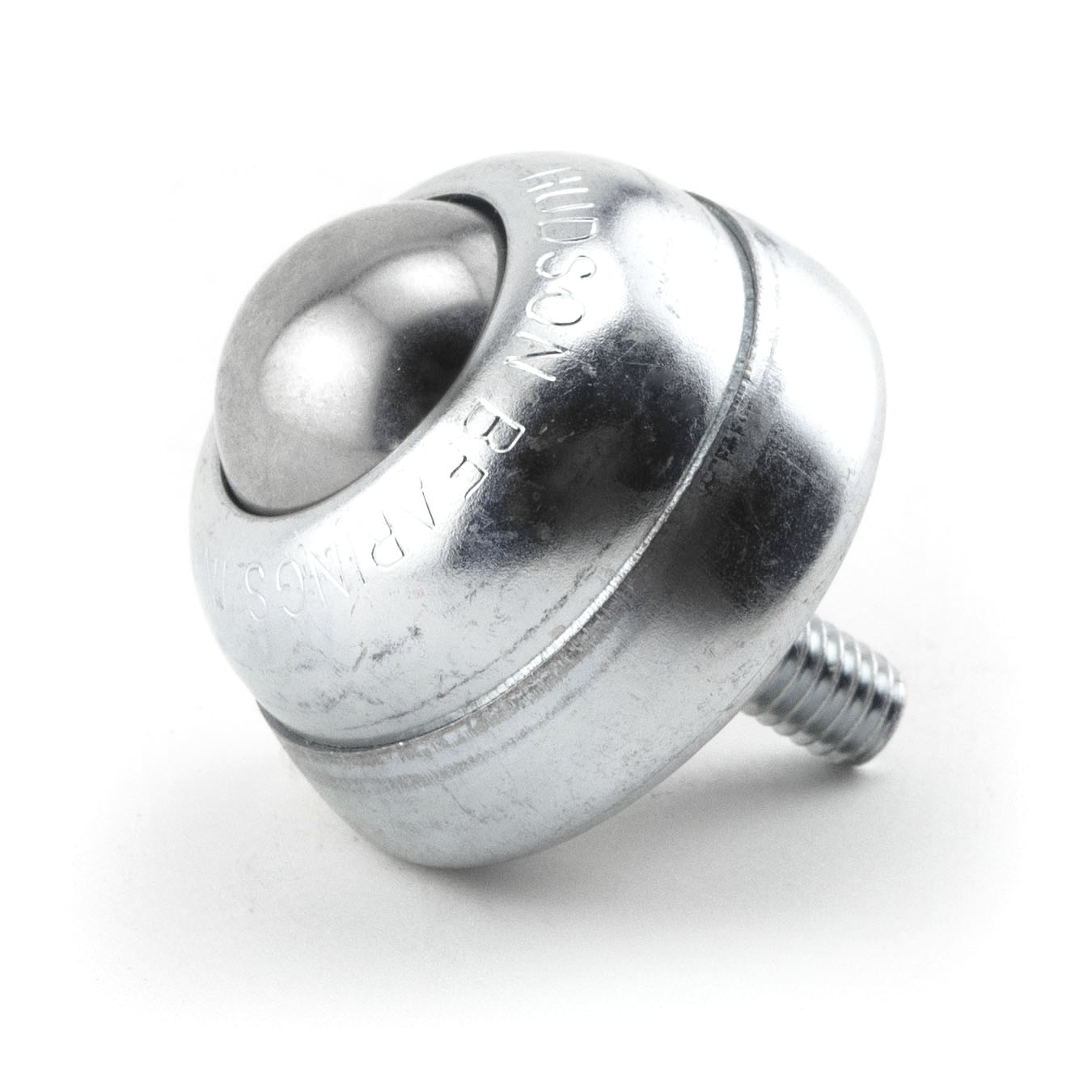

- SBT-1CS 5/16 – carbon steel, 75 lbs, 5/16-18 stud
- SBT-1CS/SS 3/8 – stainless steel, 75 lbs, 3/8-16 stud
- SBT-1CS/SS 5/16 – stainless steel, 75 lbs, 5/16-18 stud
- SBT-1SS 1/4 – stainless steel, 75 lbs, 1/4-20 stud
- SBT-1SS 3/8 – stainless steel, 75 lbs, 3/8-16 stud
- SBT-1SS 5/16 – stainless steel, 75 lbs, 5/16-18 stud
