Description

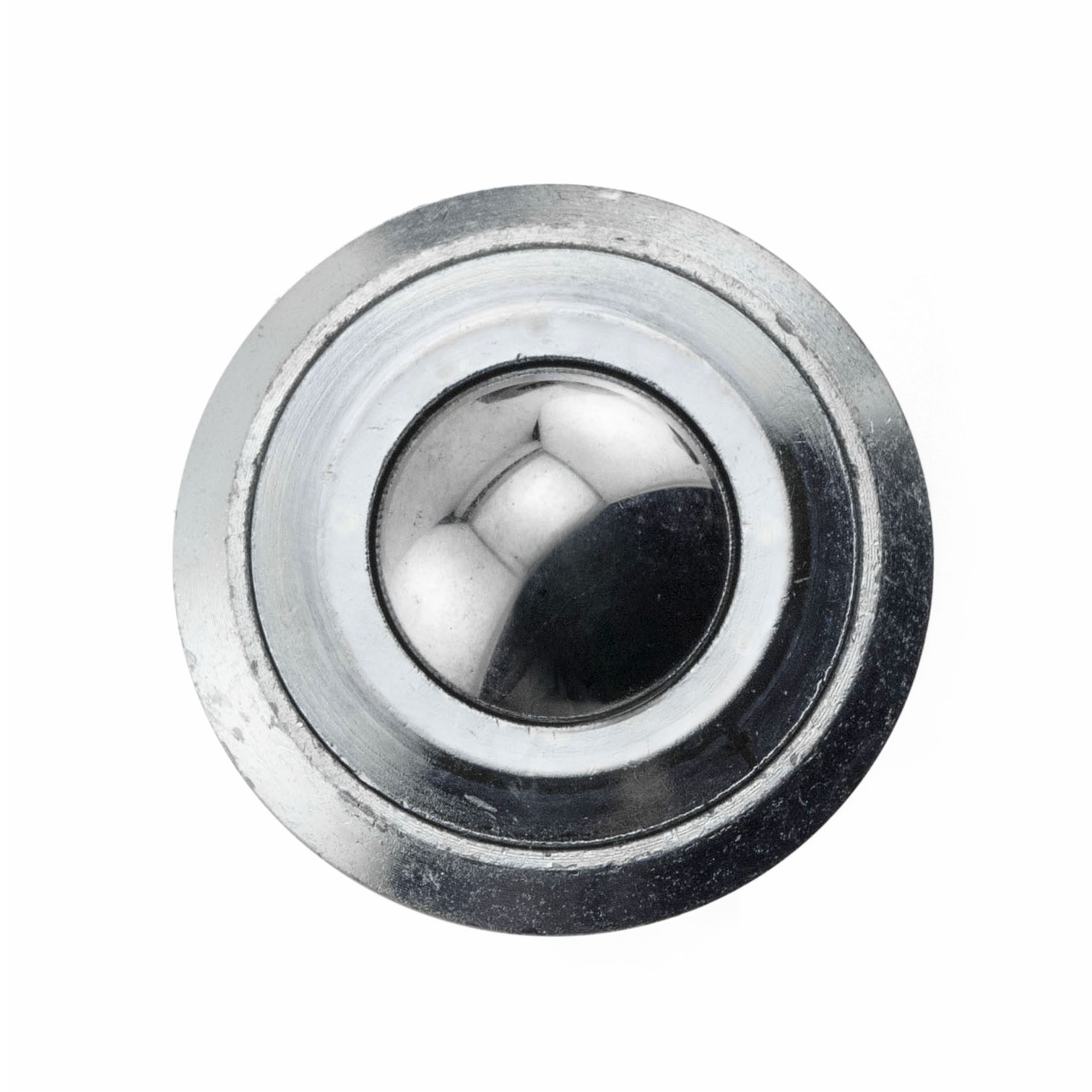

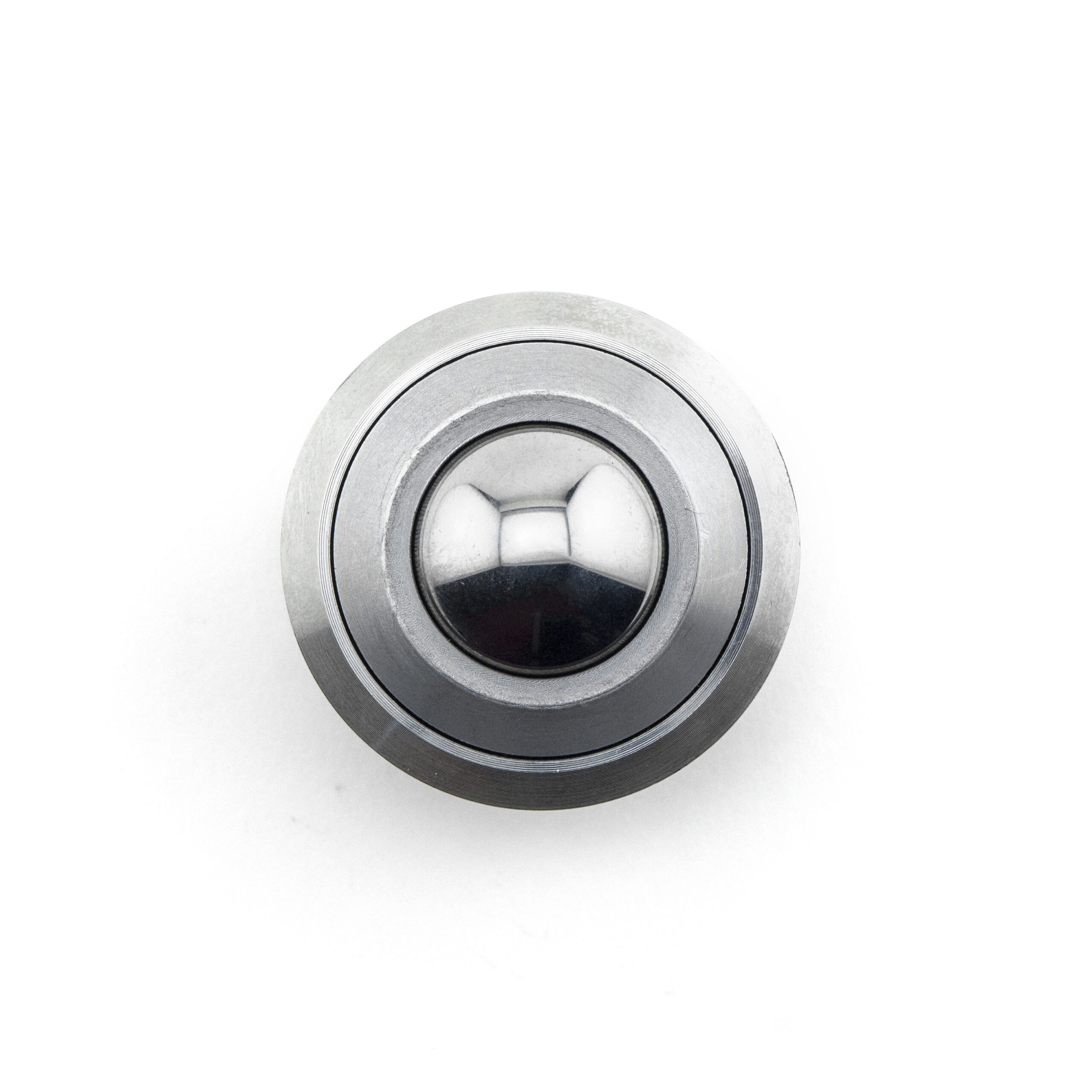

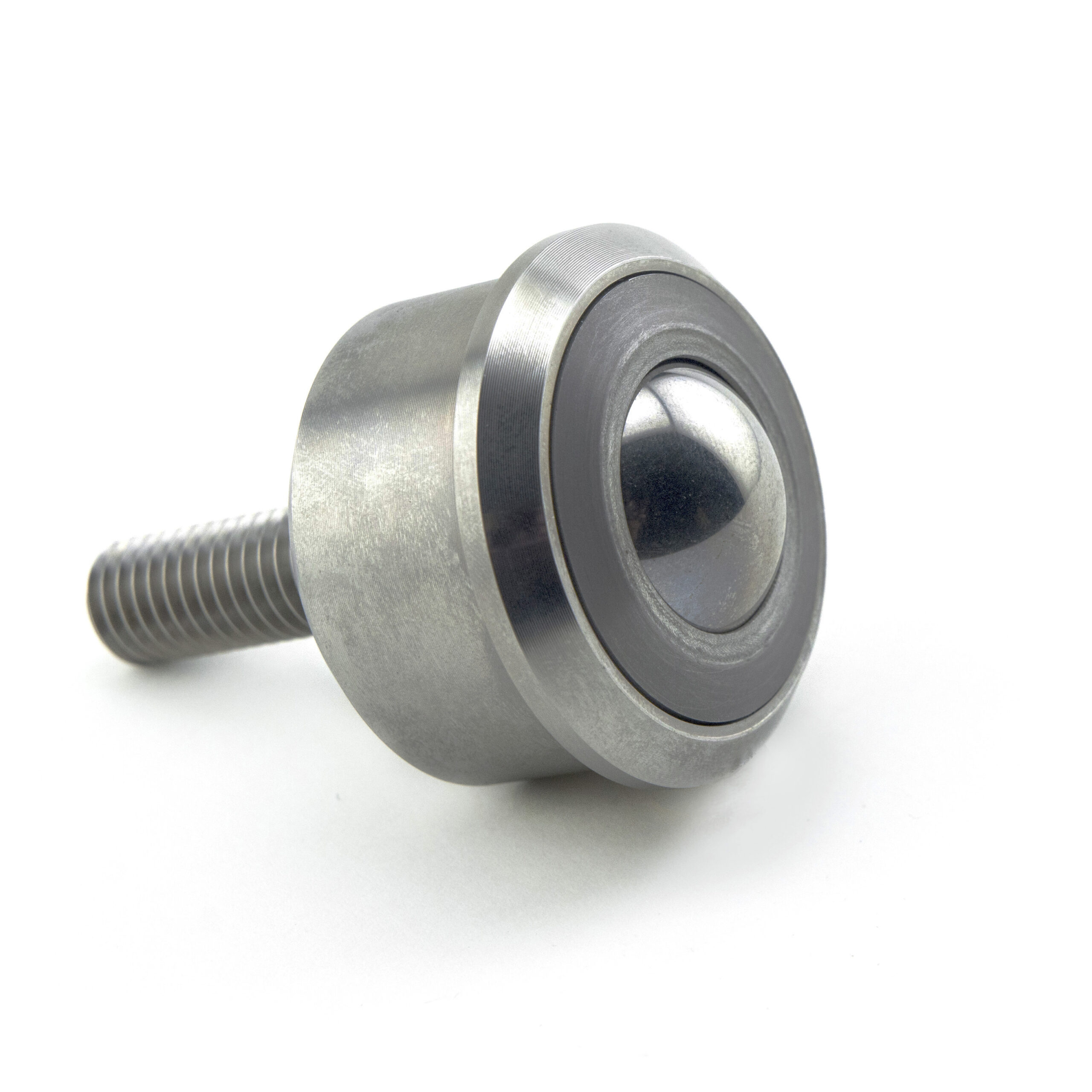

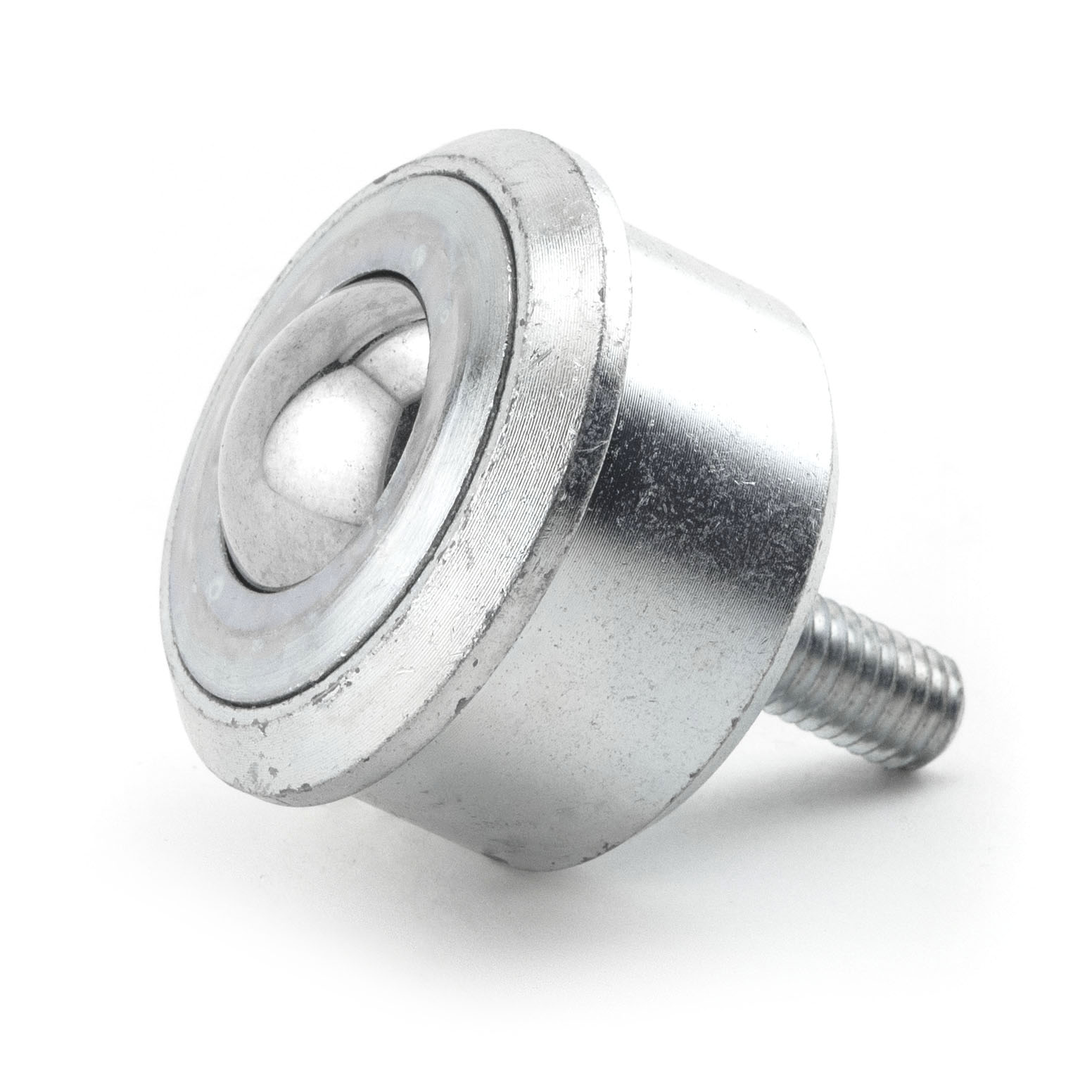

STUD MOUNTED, 750 LB. CAPACITY
- Metal-cap standard.
- 1-3/16” Main ball rotates on 1/8” support balls.
- Carbon steel ball support cup is machined from solid steel and is hardened and plated.
- Available in stainless steel for additional corrosion resistance.
Download the SHDBT 1-3/16 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|
| SHDBT 1-3/16 CS | Carbon Steel | Carbon Steel | 750 lbs |
| SHDBT 1-3/16 CS/SS | Stainless Steel | Carbon Steel | 750 lbs |
| SHDBT 1-3/16 SS | Stainless Steel | Stainless Steel | 750 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every SHDBT 1-3/16 Series part number:
- SHDBTM 1 3/16 CS/SS – stainless steel
- SHDBTM 1 3/16″ CS – carbon steel
- SHDBTM 1 3/16″ SS – stainless steel
