Description

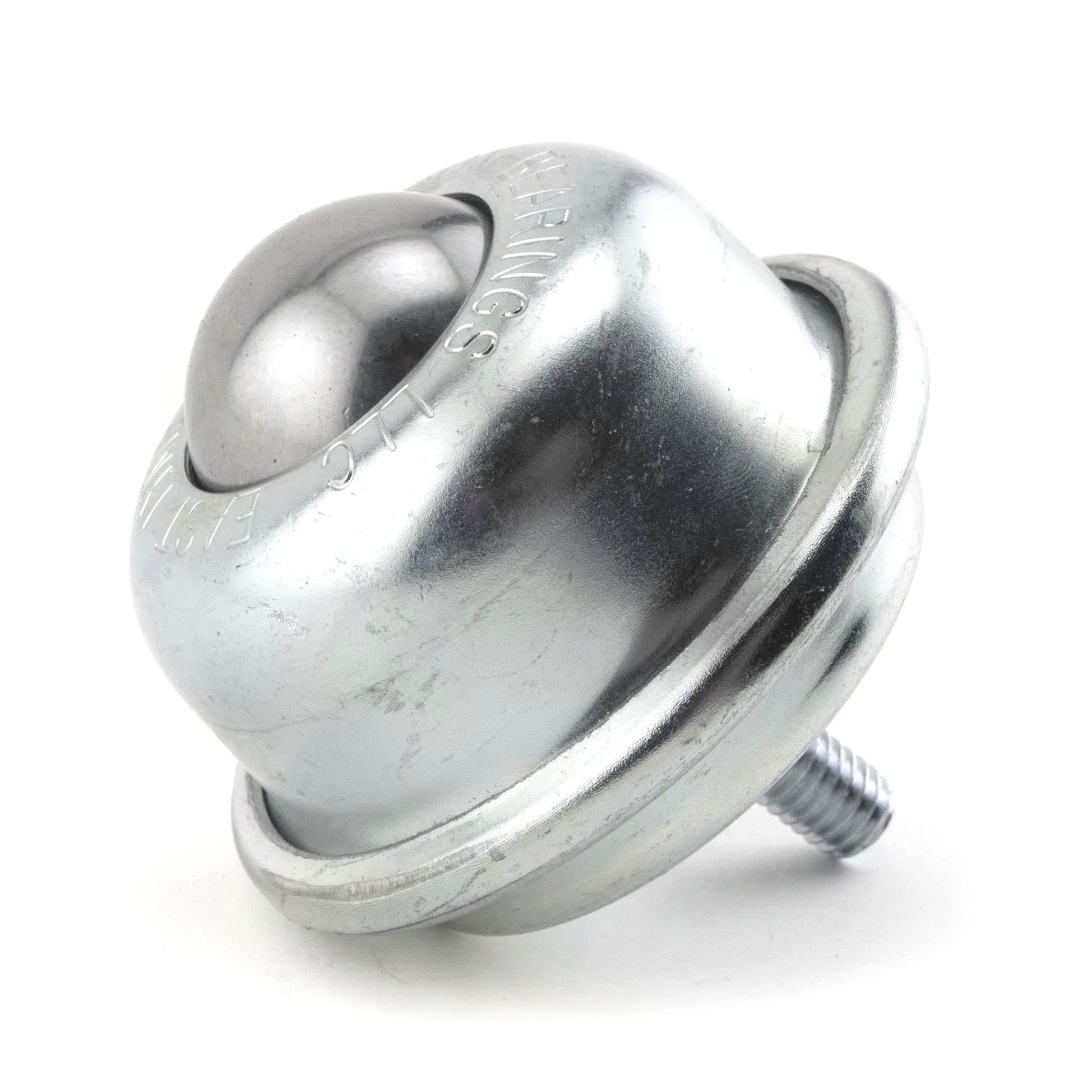

STUD-MOUNTED, ALL-STEEL, FOR HEAVY-DUTY APPLICATIONS
- Threaded stud size: 3/8-16.
- 1-1/2” Main ball rotates on 3/16” support balls.
- Ball support cup is hardened and plated.
- Protective cover assures low torque and longevity.

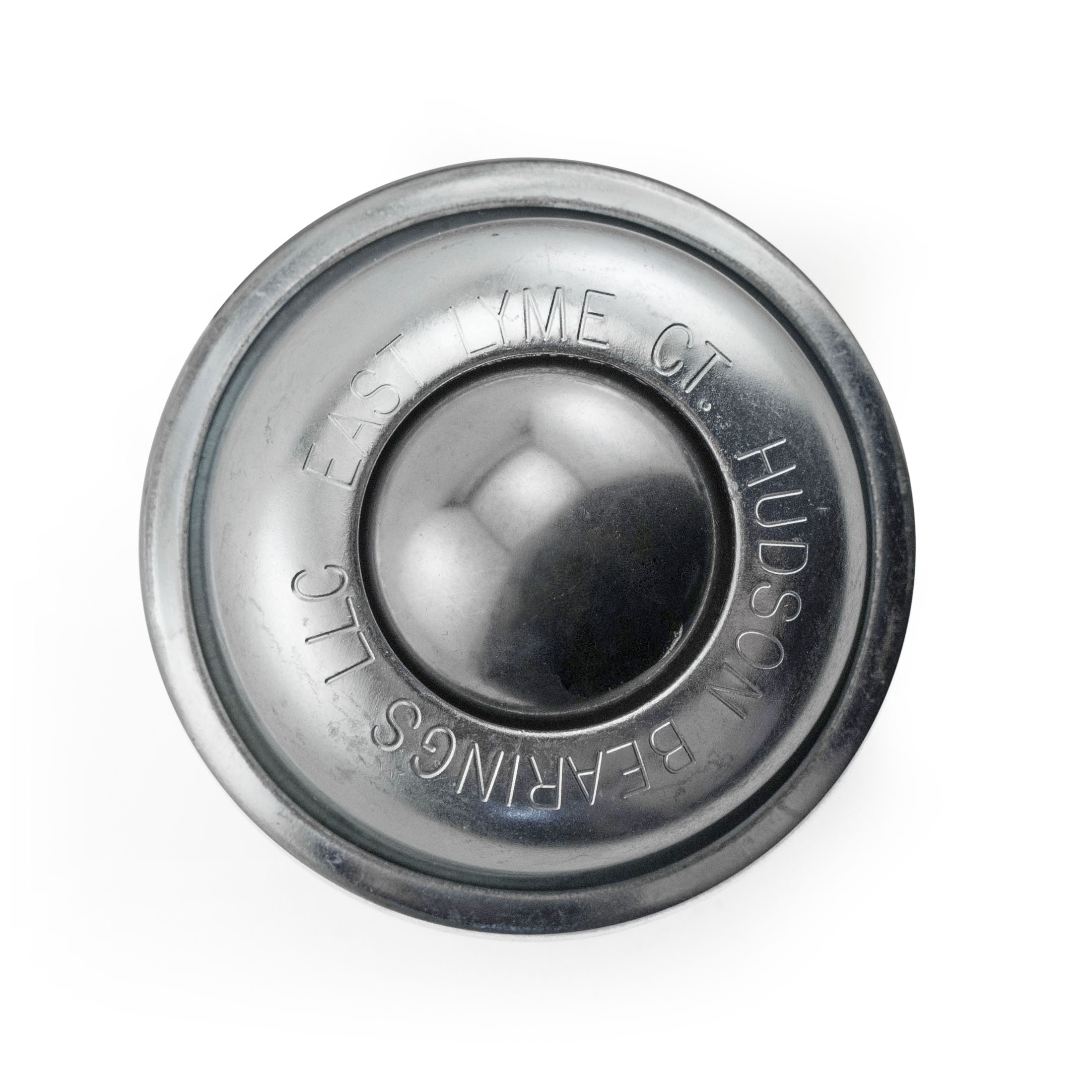

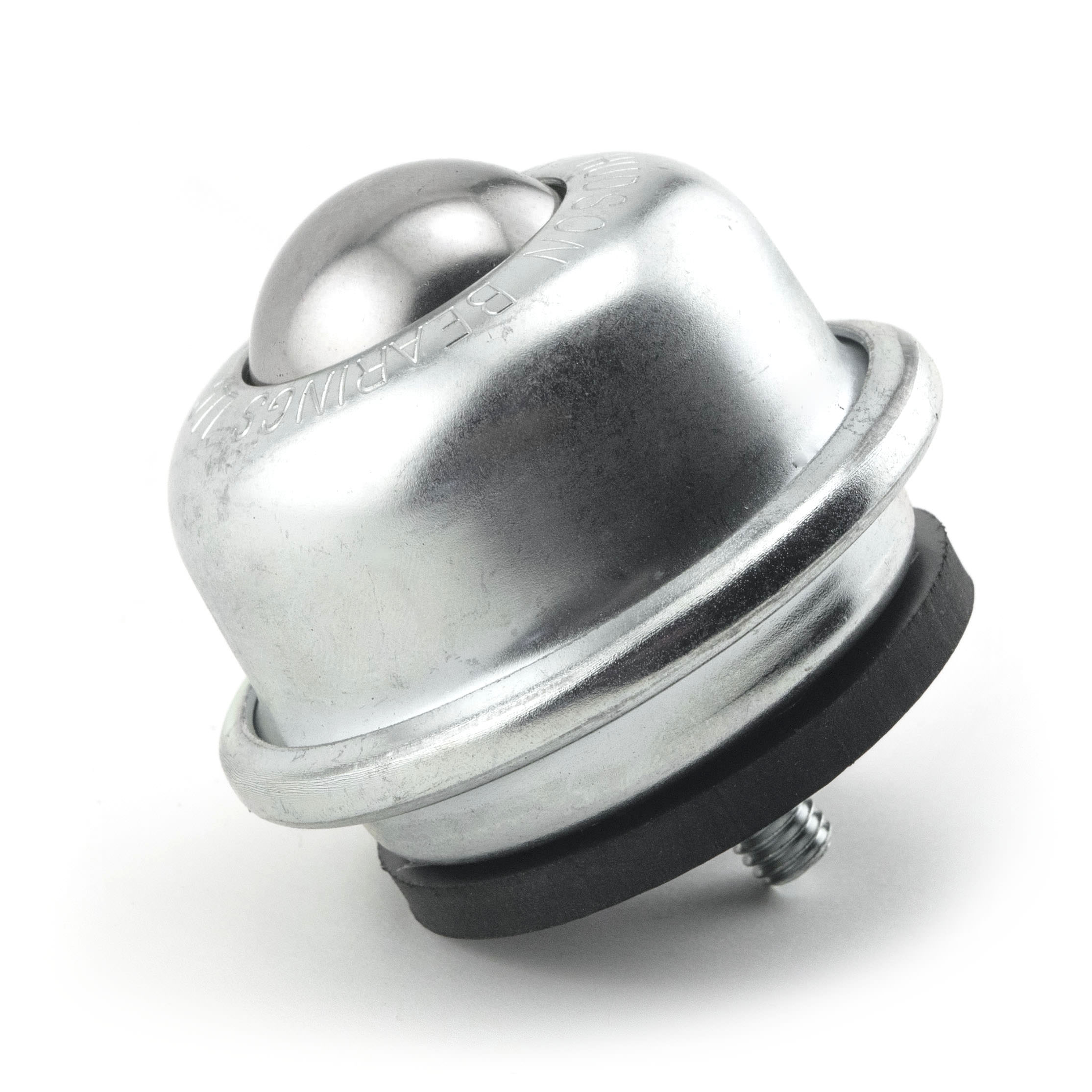

NOTE: Neoprene cushion available to permit vertical deflection and assist with uniform load distribution (Part number CSBT 1-1/2)
Download the SBT 1-1/2 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

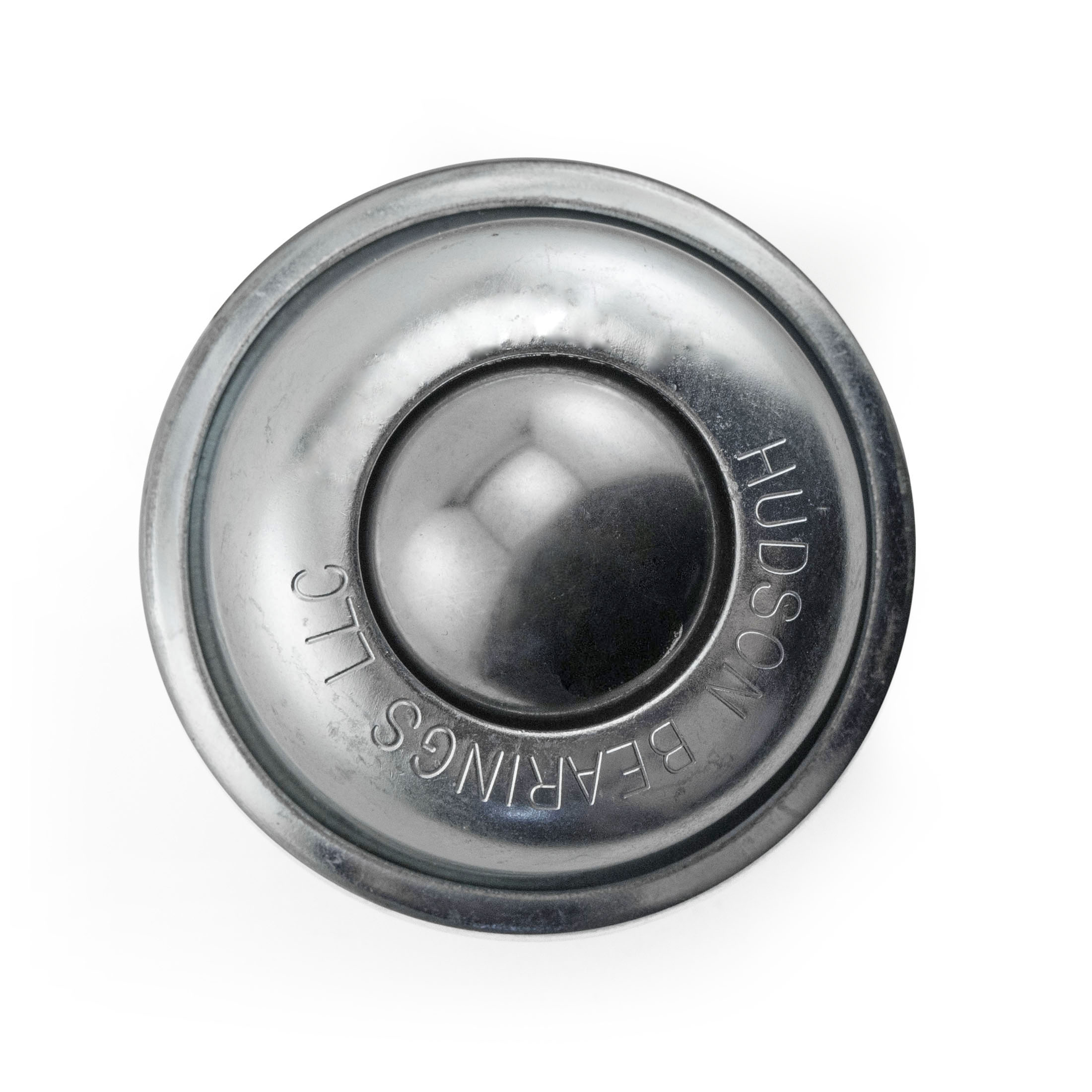

| SBT 1-1/2 CS | Carbon Steel | Carbon Steel | 250 lbs |

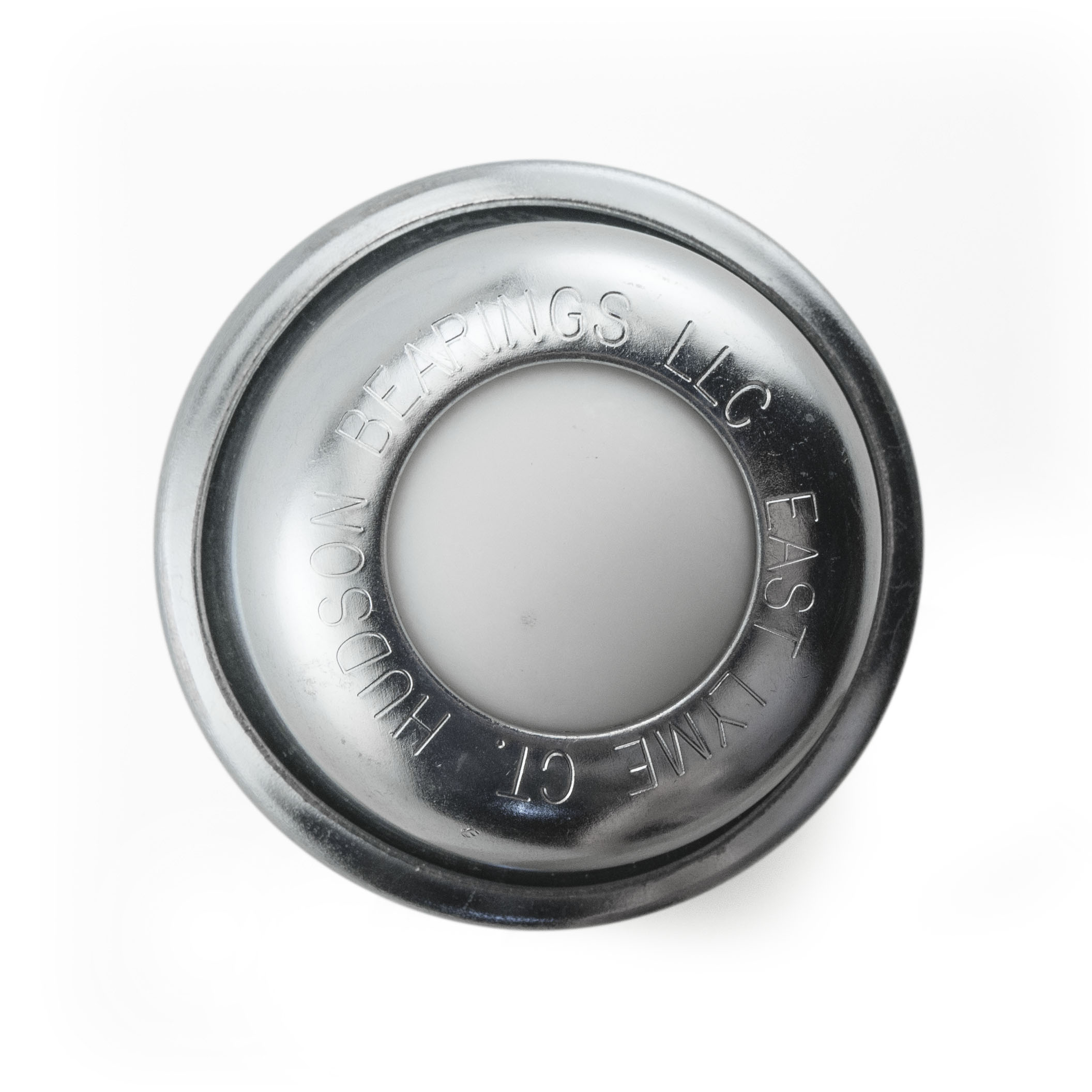

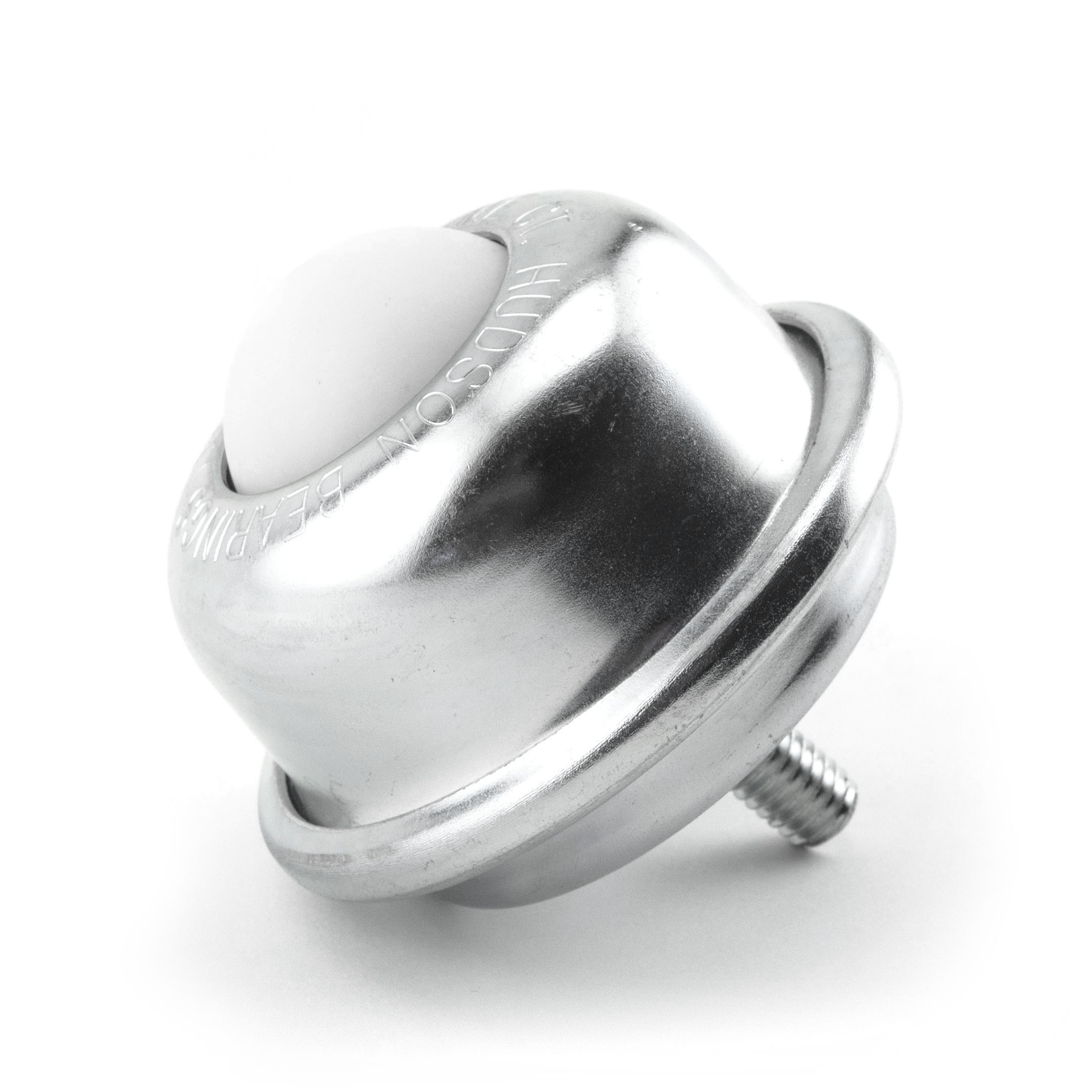

| NSBT 1-1/2 CS | Nylon | Carbon Steel | 250 lbs |
| SBT 1-1/2 CS/SS | Stainless Steel | Carbon Steel | 250 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every SBT 1-1/2 Series part number:
- NSBT-1 1/2 CS – nylon, 250 lbs
- NSBT-1 1/2 CS/SS – nylon
- SBT-1 1/2 CS – carbon steel, 250 lbs
- SBT-1 1/2 CS/SS – stainless steel, 250 lbs
