Description

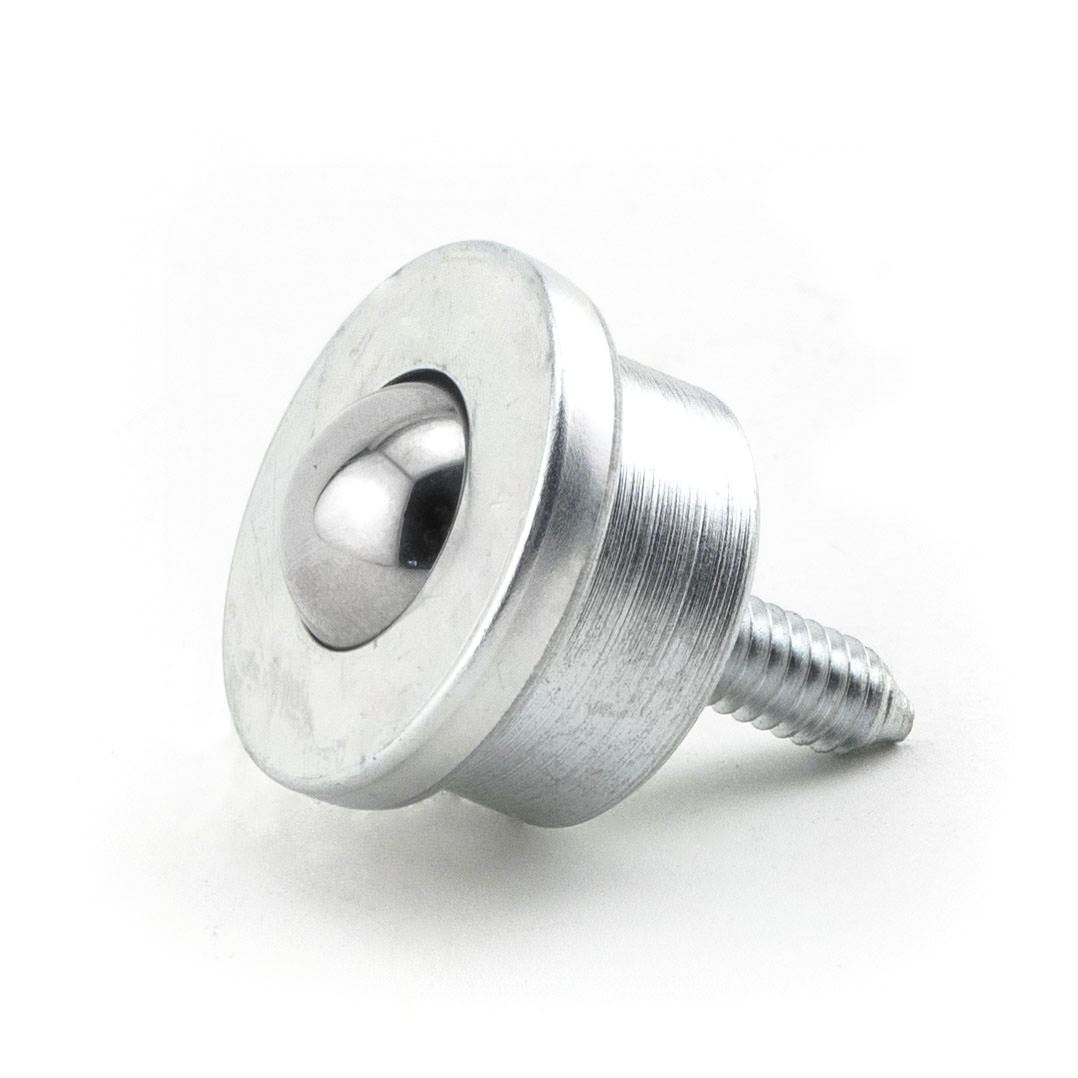

STUD-MOUNTED, SOLID MACHINED, ALL-STEEL
- Carbon steel ball support cup is machined from solid steel and is hardend and plated.
- 5/8” Main ball rotates on 3/32” support balls.
- Available in stainless steel for additional corrosion resistance.
Download the SMBT 5/8 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|
| SMBT 5/8 CS | Carbon Steel | Carbon Steel | 125 lbs |

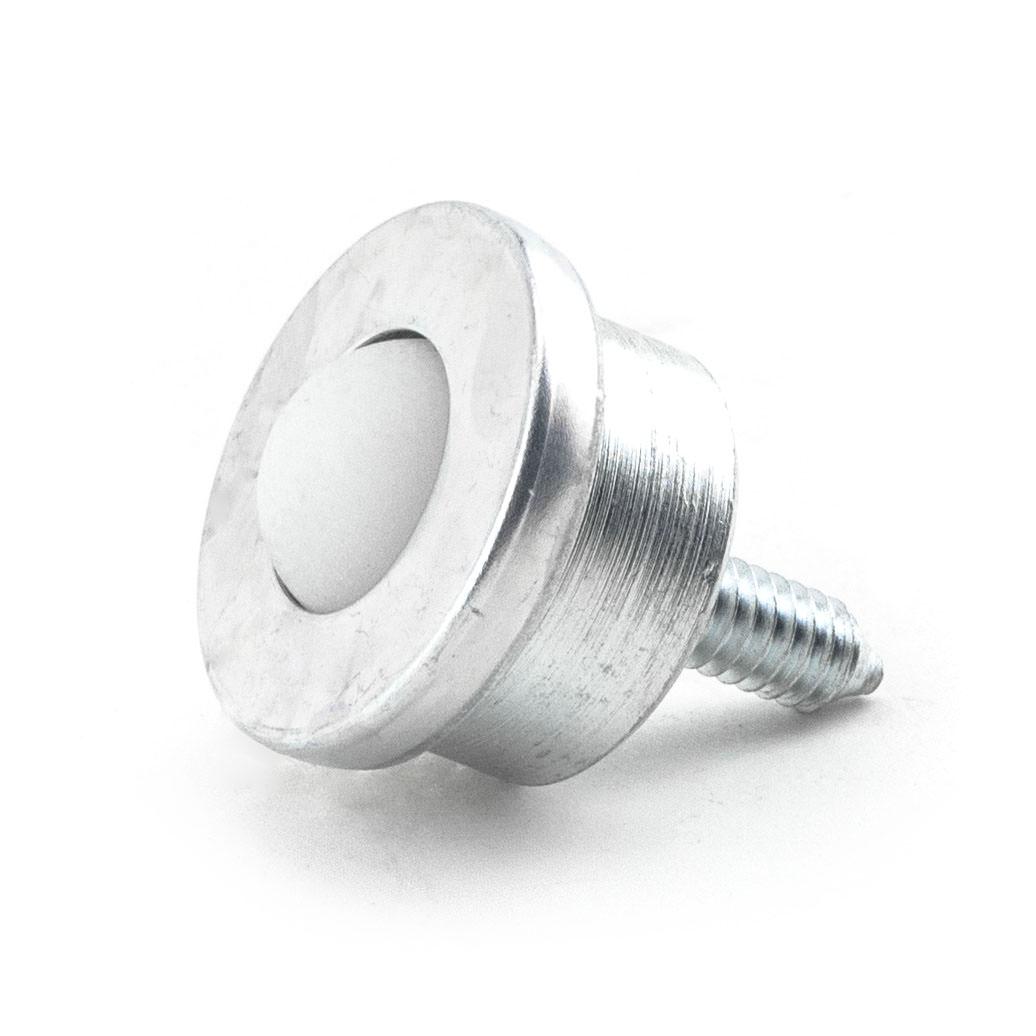

| NSMBT 5/8 CS | Nylon | Carbon Steel | 125 lbs |
| SMBT 5/8 CS/SS | Stainless Steel | Carbon Steel | 125 lbs |
| SMBT 5/8 SS | Stainless Steel | Stainless Steel | 125 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every SMBT 5/8 Series part number:
- NSMBT 5/8 SS – nylon
- NSMBT-5/8CS – nylon, 125 lbs
- NSMBT-5/8CS/SS – nylon
- SMBT 5/8 SS – stainless steel, 125 lbs
- SMBT-5/8 CS/SS – stainless steel, 125 lbs
- SMBT-5/8CS – carbon steel, 125 lbs
