Description

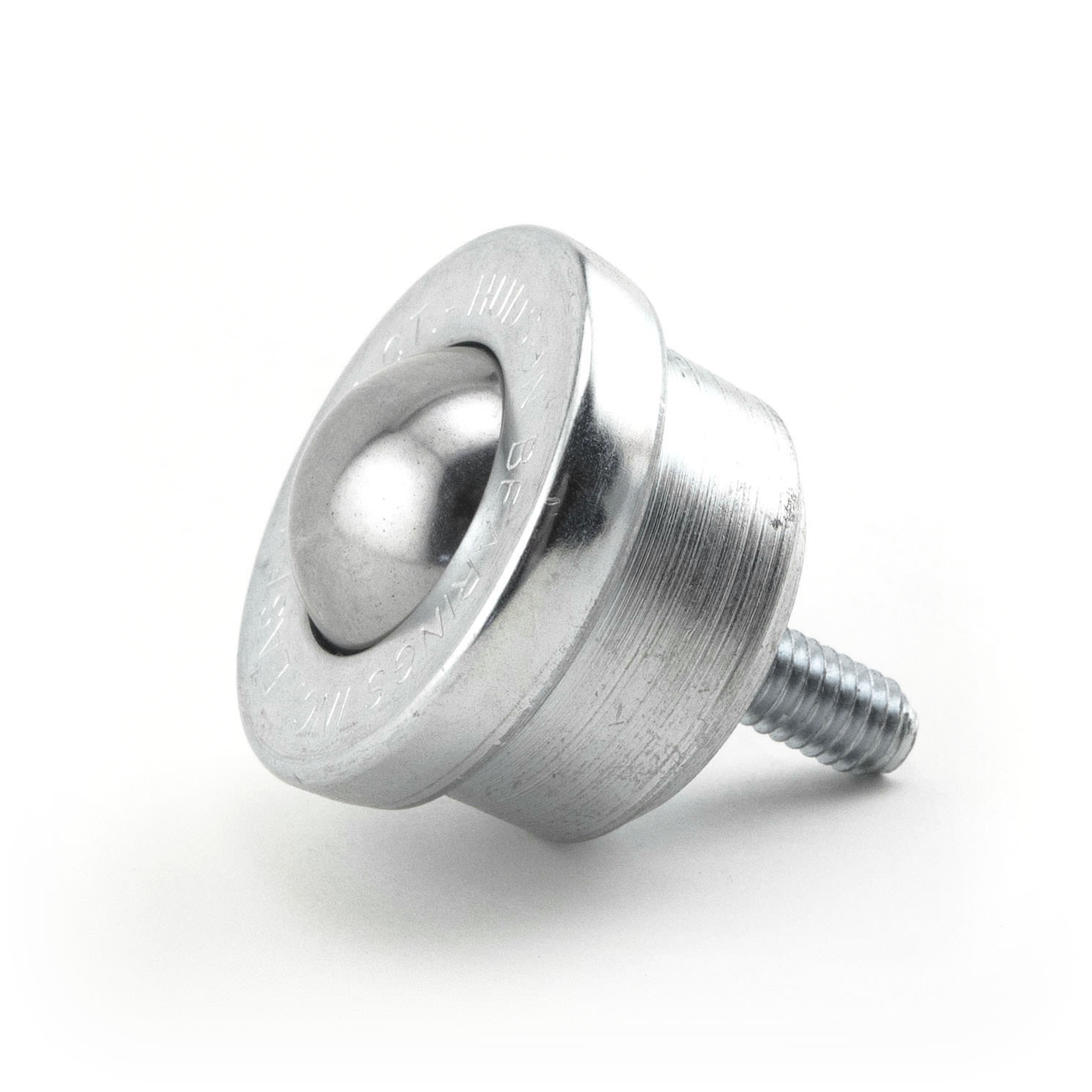

STUD-MOUNTED, SOLID MACHINED, ALL-STEEL
- Carbon steel ball support cup is machined from solid steel and is hardened and plated.
- 1” Main ball rotates on 1/8” support balls.
- Available in stainless steel for additional corrosion resistance.
Download the SMBT-1 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

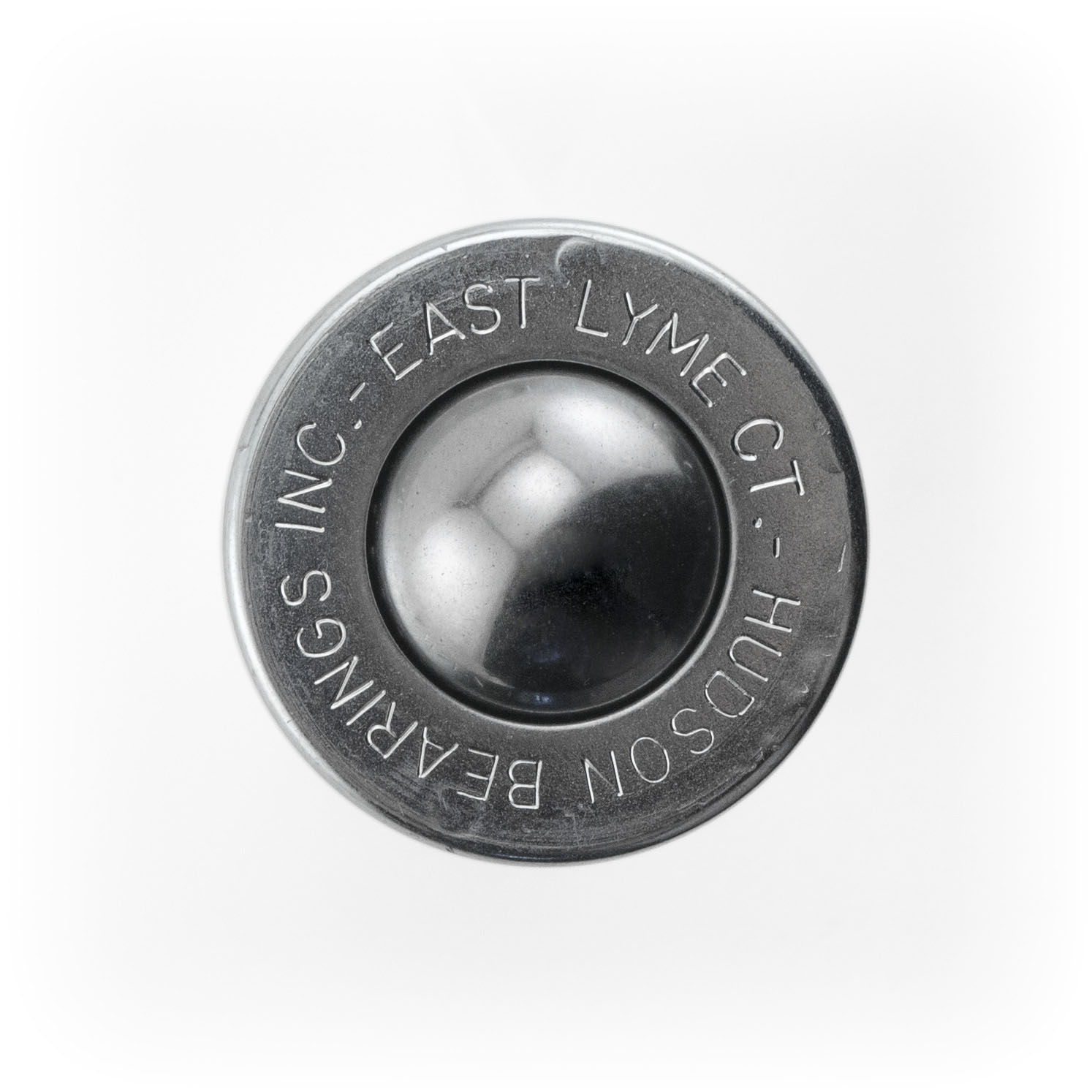

| SMBT 1 CS | Carbon Steel | Carbon Steel | 200 lbs |

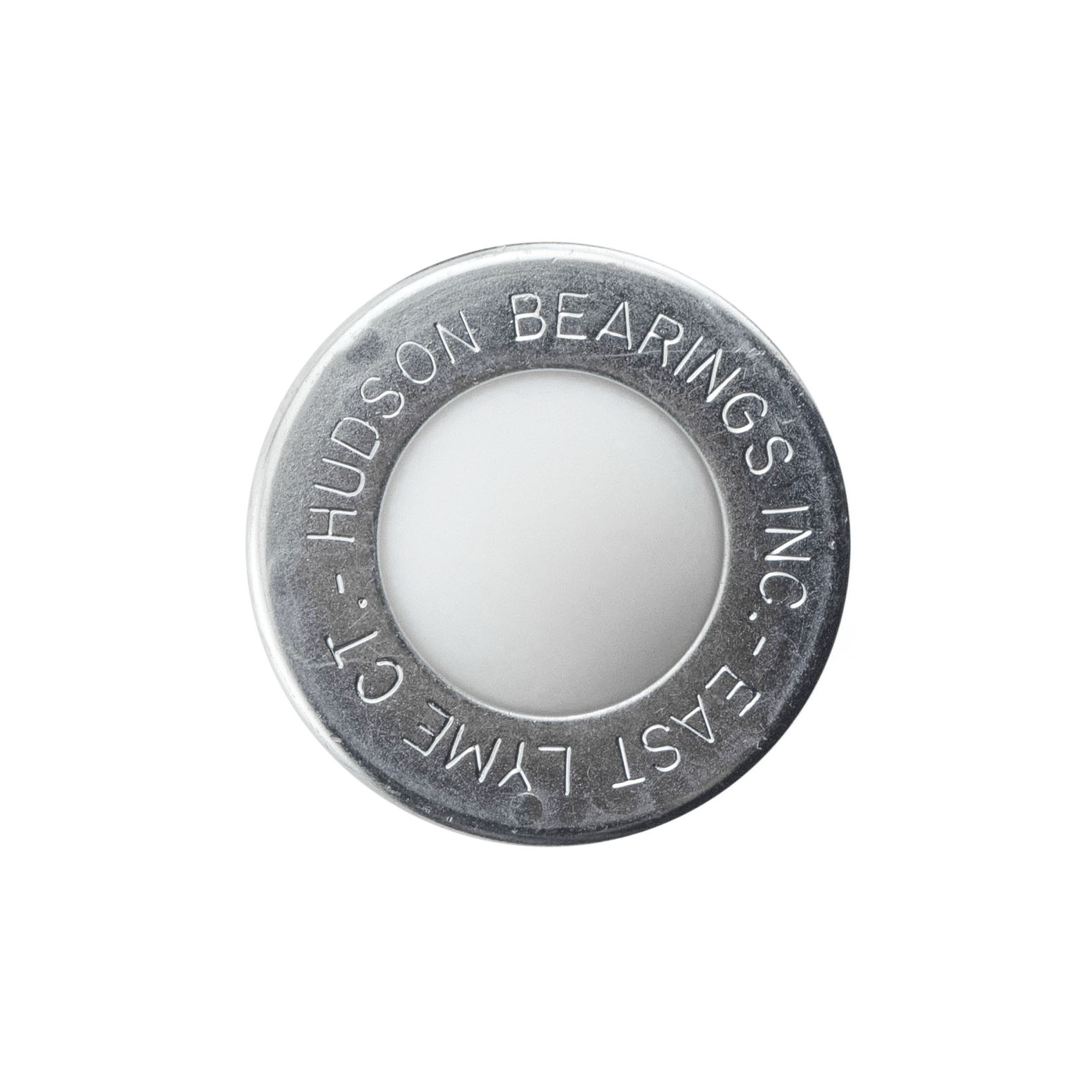

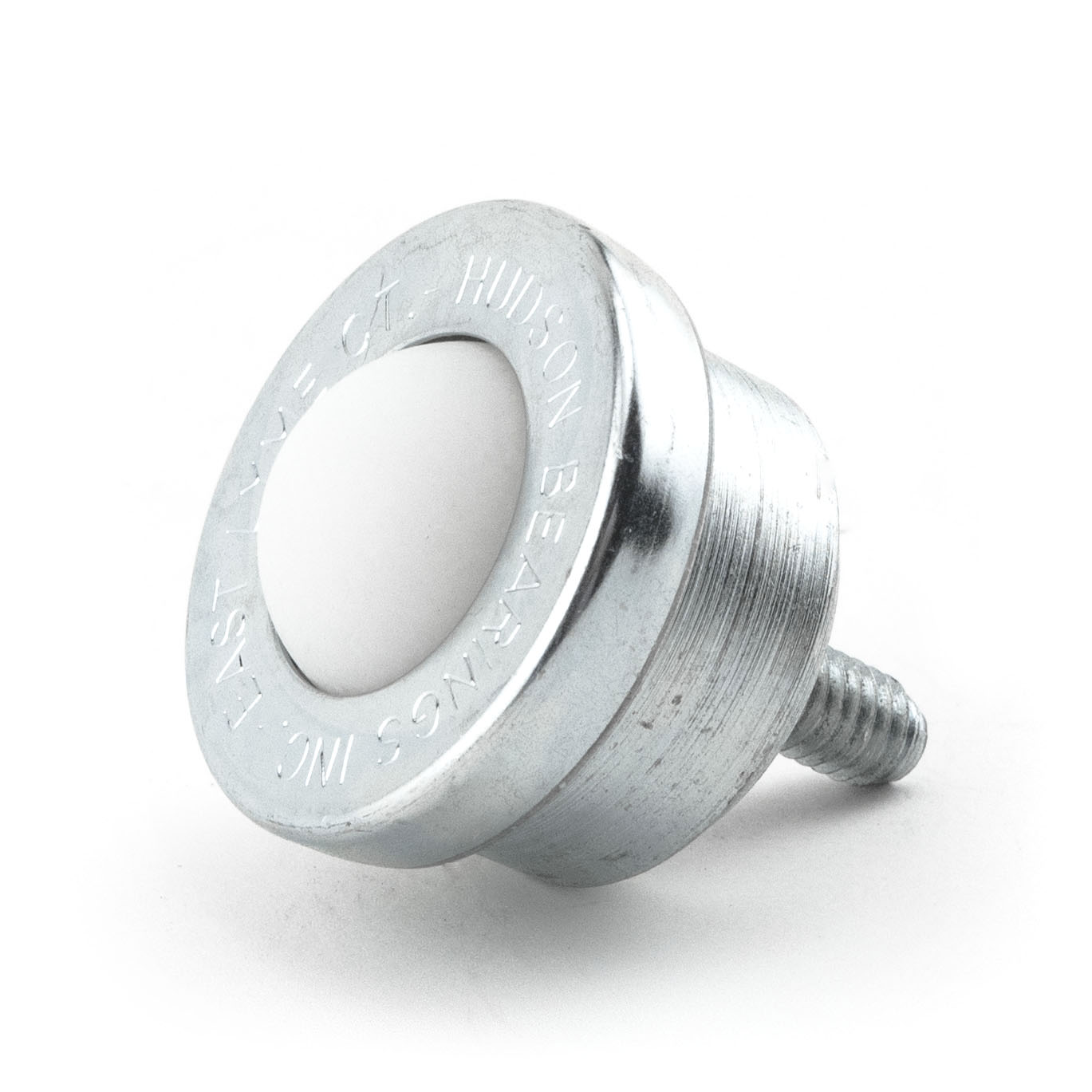

| NSMBT 1 CS | Nylon | Carbon Steel | 200 lbs |

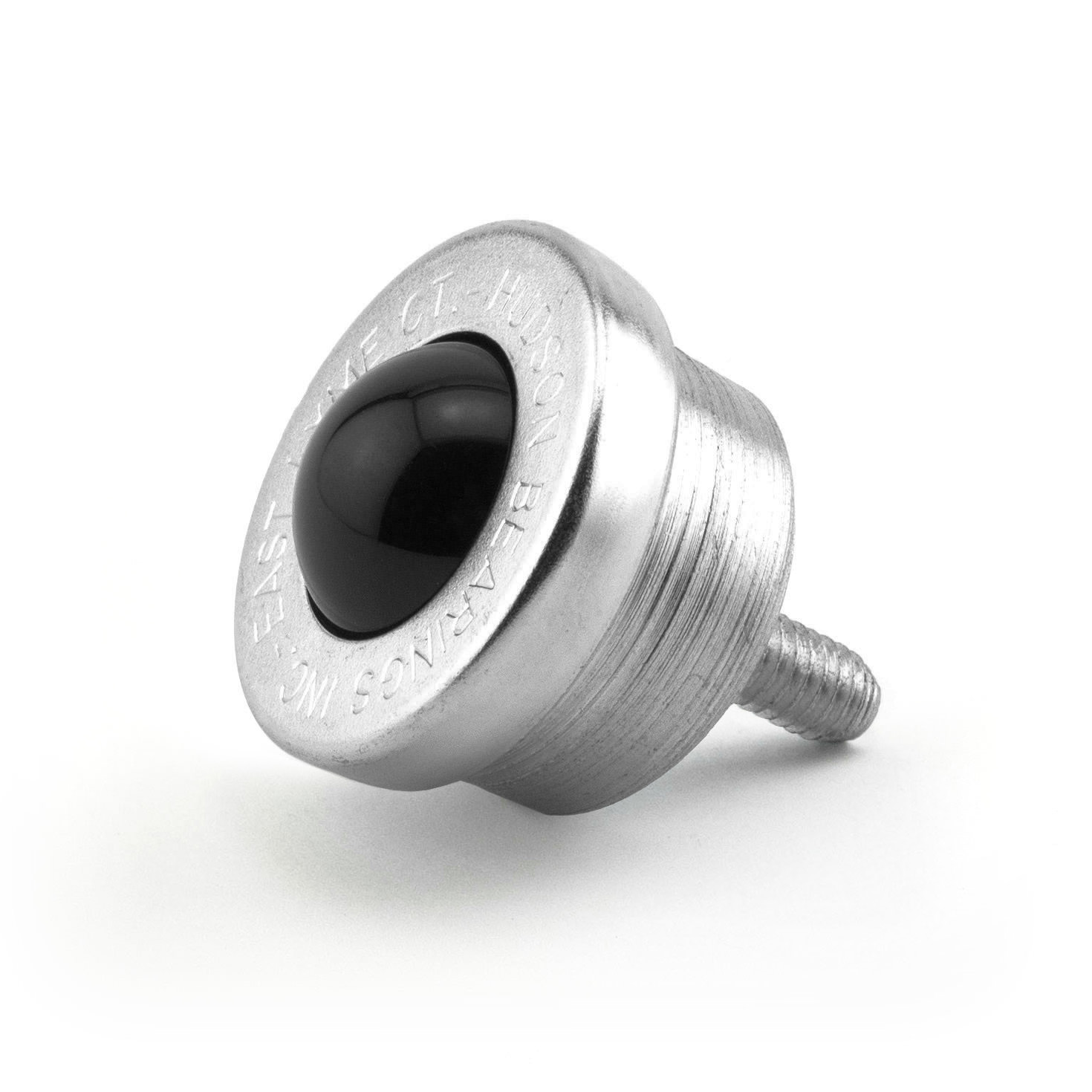

| SMBT 1 CS/SS | Stainless Steel | Carbon Steel | 200 lbs |
| SMBT 1SS | Stainless Steel | Stainless Steel | 200 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every SMBT-1 Series part number:
- NSMBT-1CS – nylon, 200 lbs
- NSMBT-1SS – nylon
- SMBT 1 SS – stainless steel, 200 lbs
- SMBT-1CS – carbon steel, 200 lbs
- SMBT-1CS/SS – stainless steel, 200 lbs
