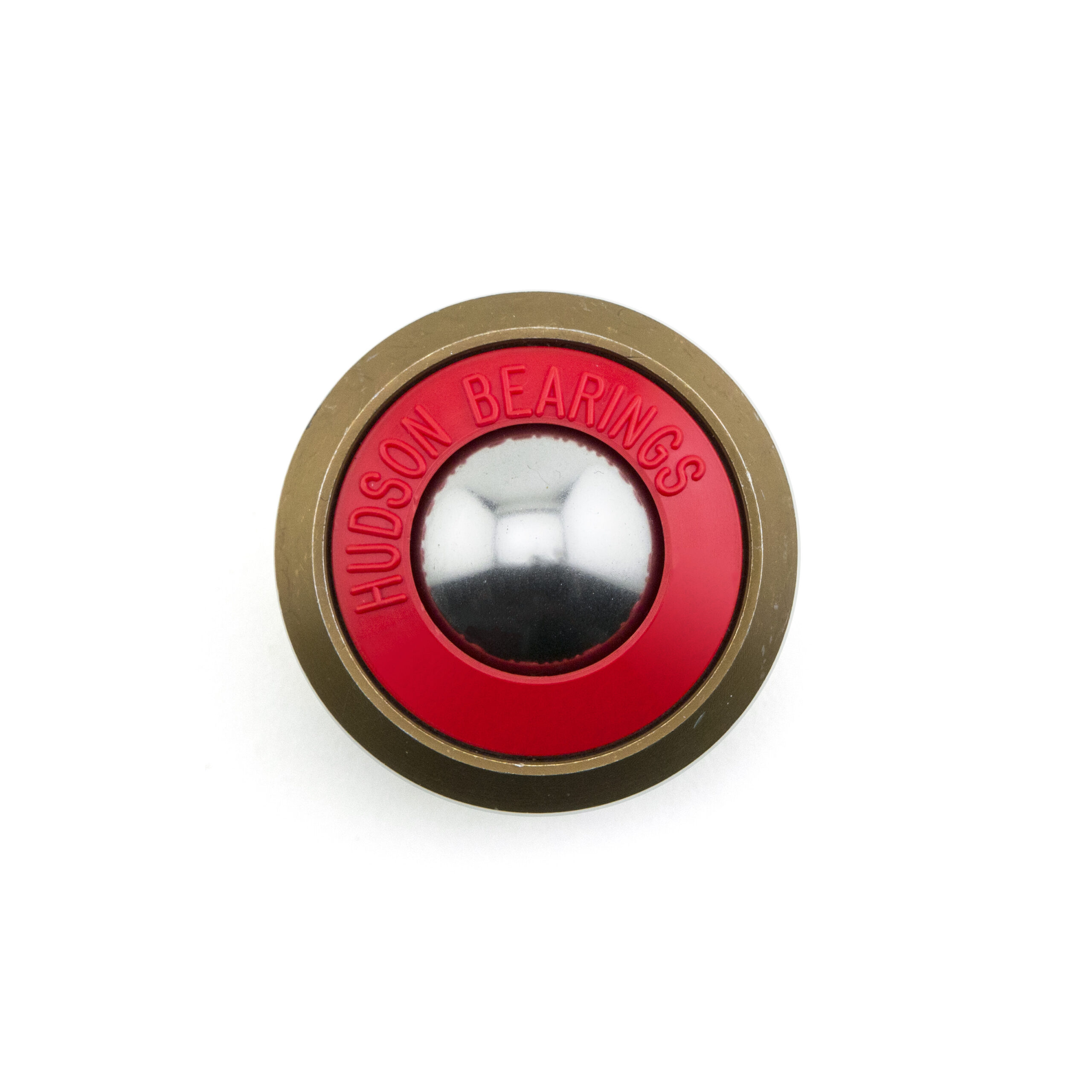

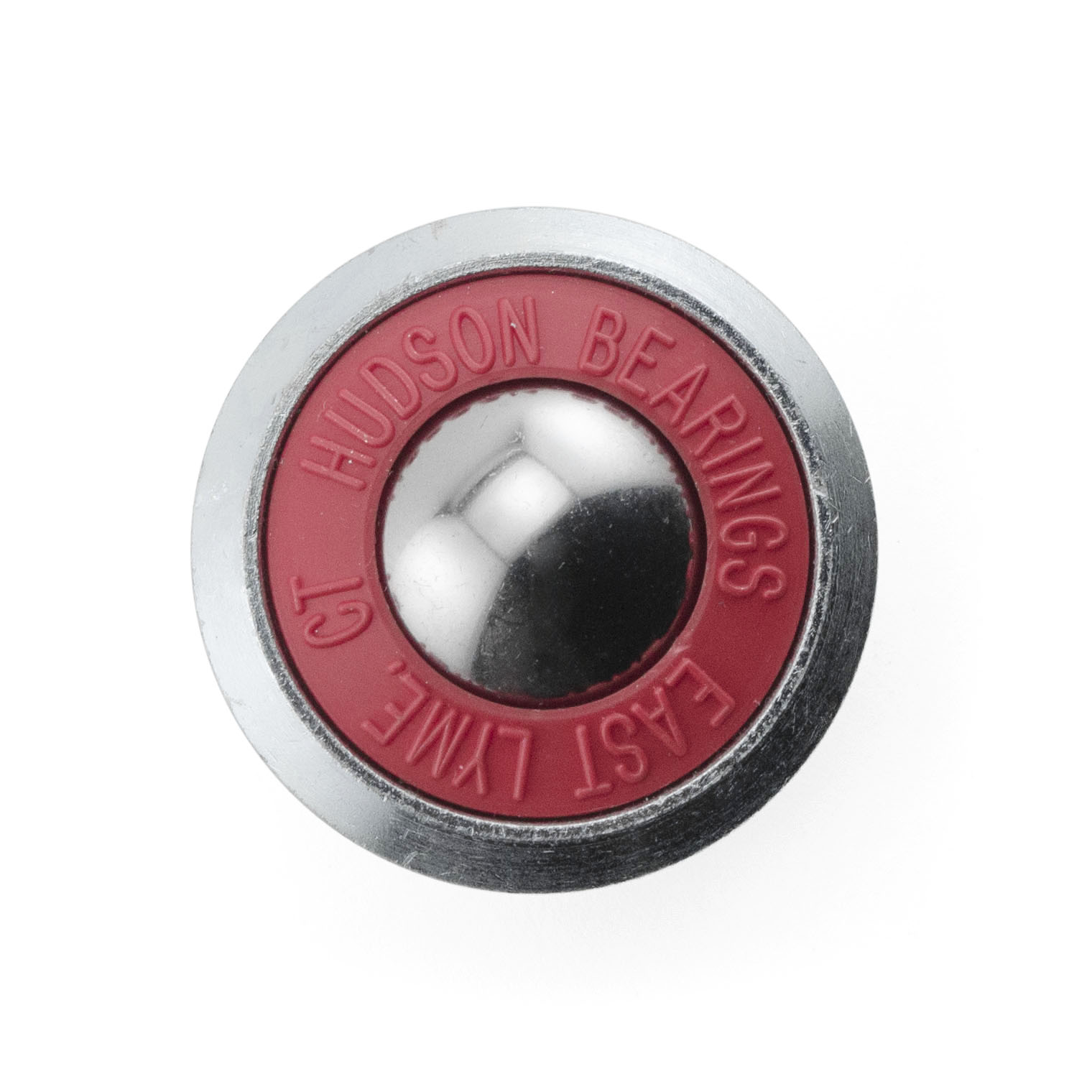

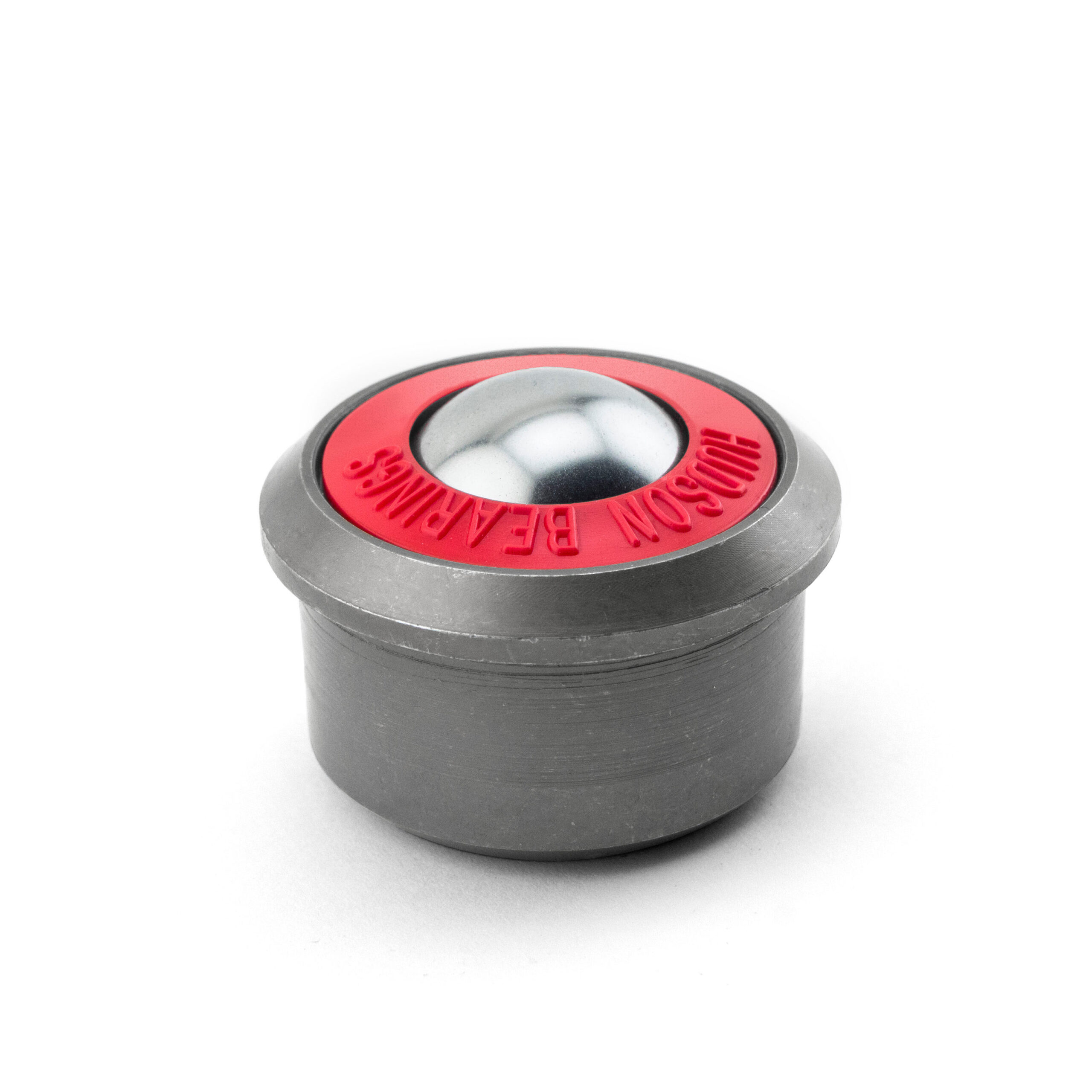

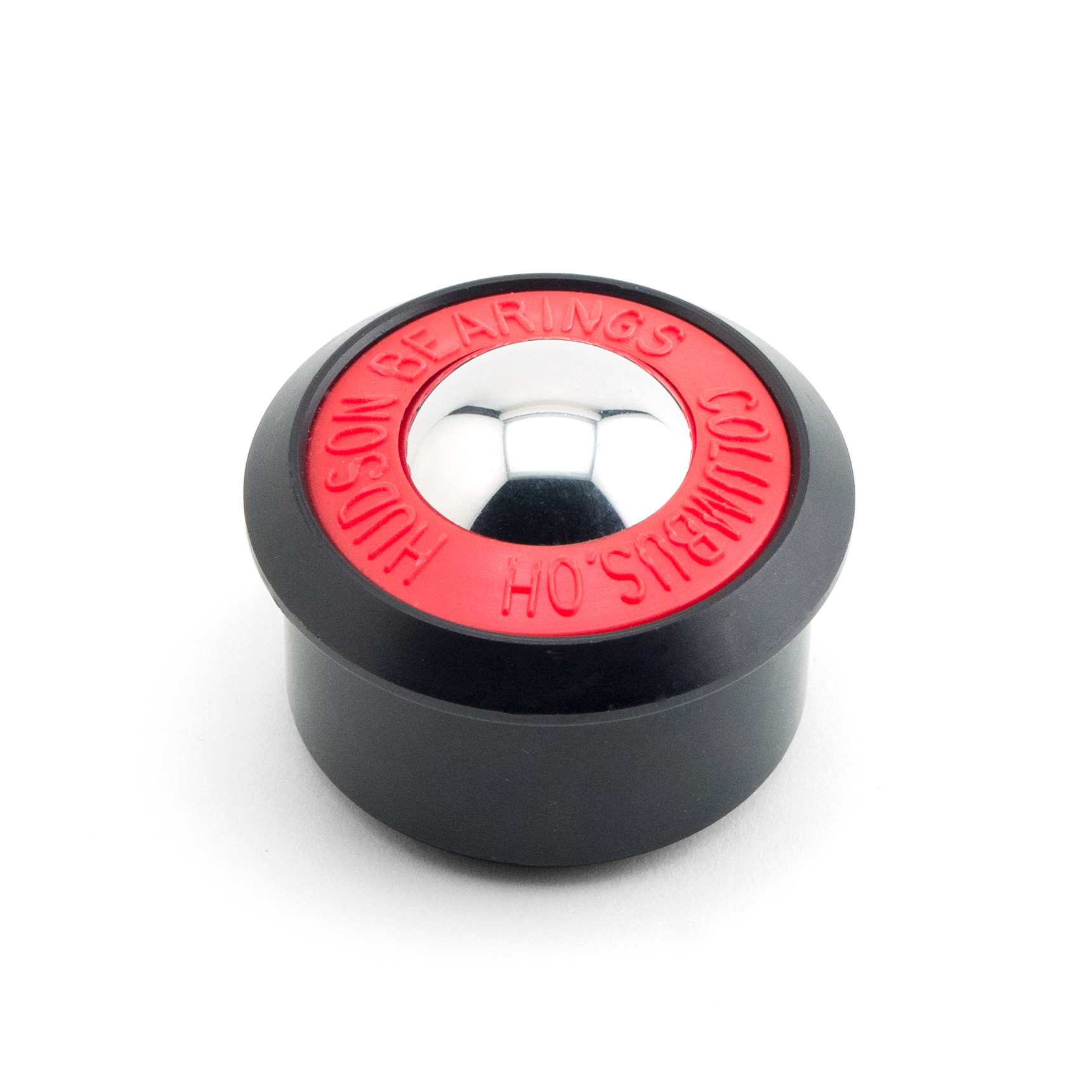

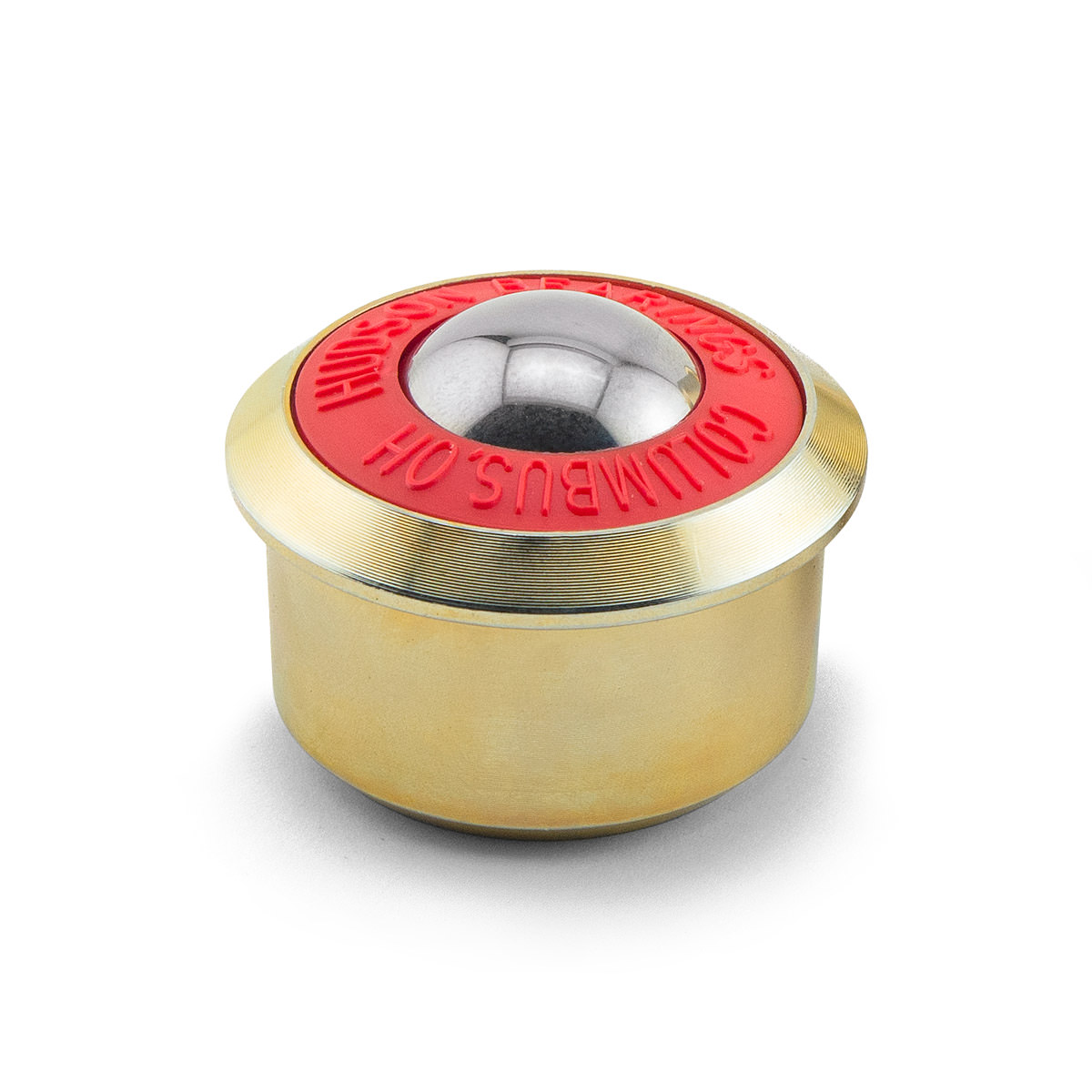

Description
550 LB. CAPACITY
- Integral flange at top allows unit to be dropped into 1-13/16″ diameter hole.
- 1-3/16″ Main ball rotates on 1/8″ support balls.
- Ball support cup is machined from solid steel and is hardened and plated.
- Available in stainless steel for additional corrosion resistance.
Download the HDBT 1-3/16 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

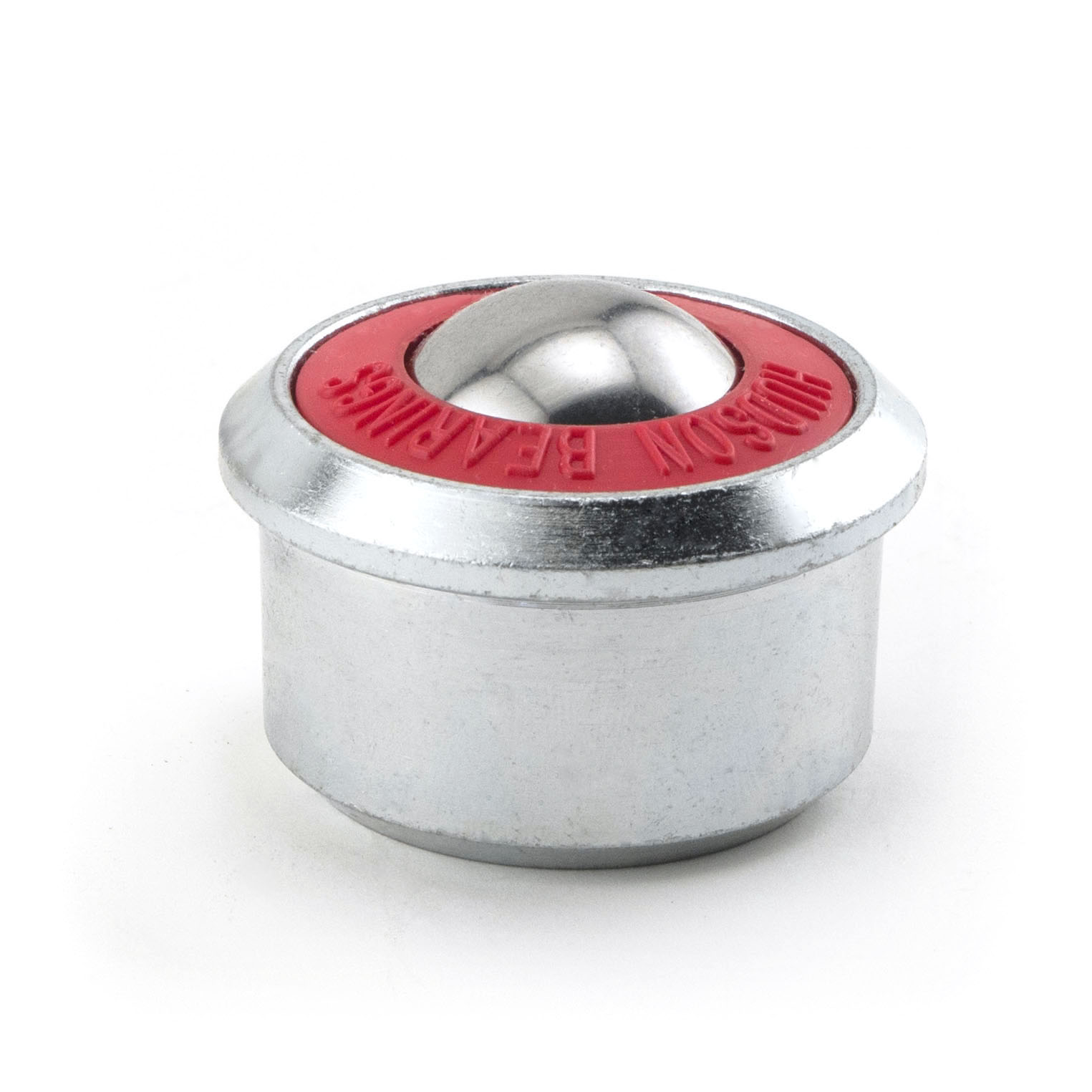

| HDBT-1-3/16CS | Carbon Steel | Carbon Steel | 550 lbs |

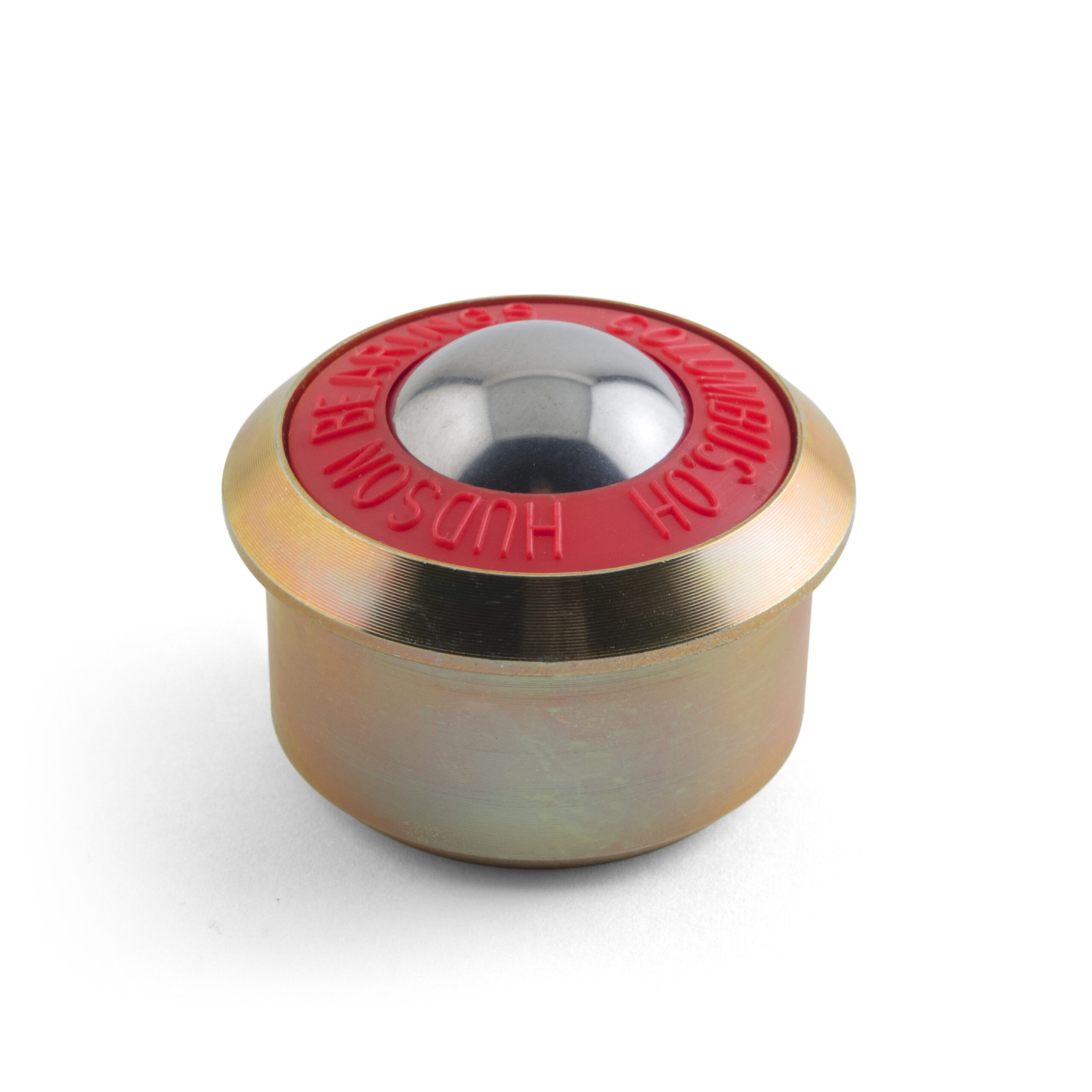

| HDBT-1-3/16CS/SS | Stainless Steel | Carbon Steel | 550 lbs |

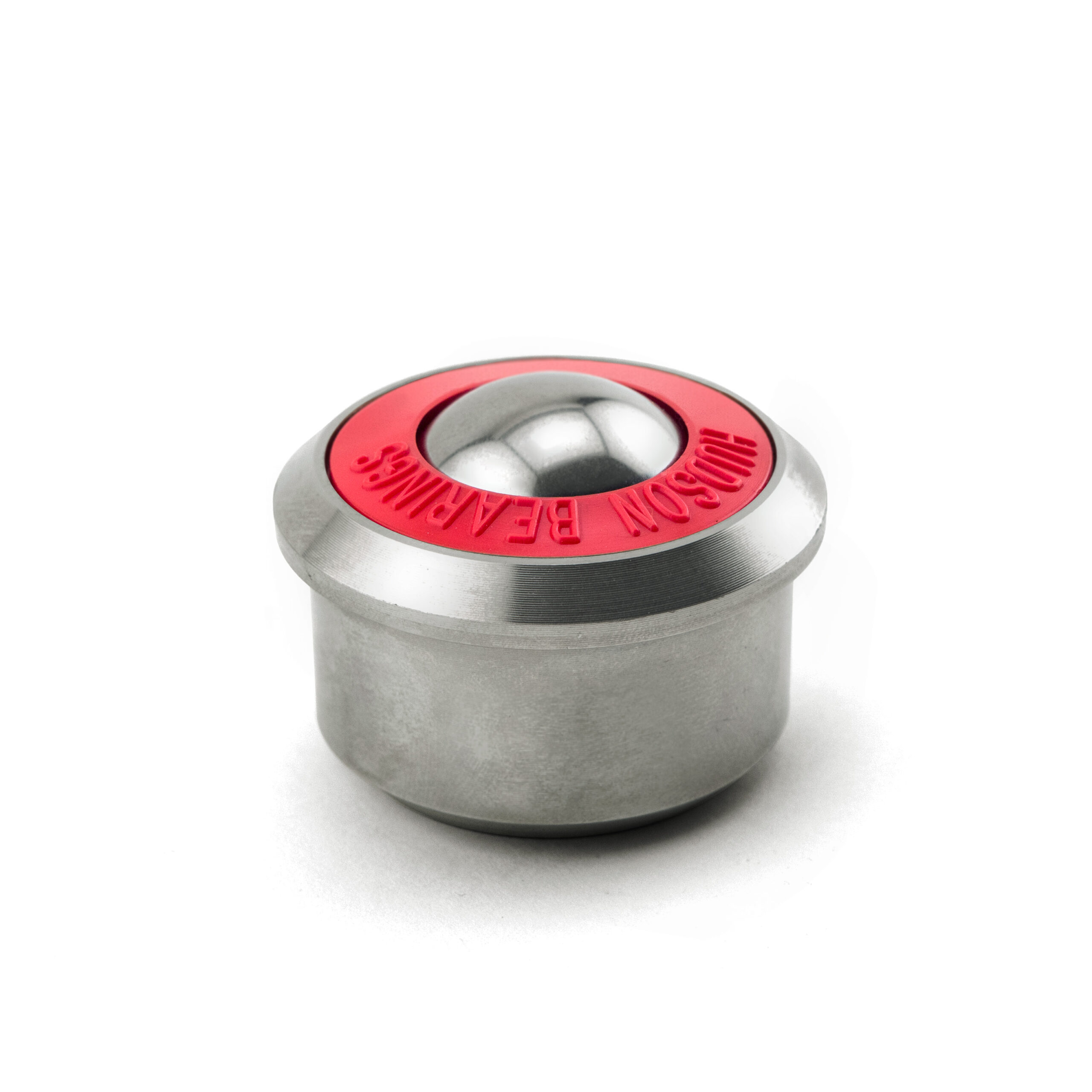

| HDBT-1-3/16SS | Stainless Steel | Stainless Steel | 550 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every HDBT 1-3/16 Series part number:
- HDBT 1 3/16″CS RED – carbon steel
- HDBT 1 3/16″CS/SS – stainless steel, 550 lbs
- HDBT CS/SS MWH – stainless steel
- HDBT-1 3/16 SS RED – stainless steel

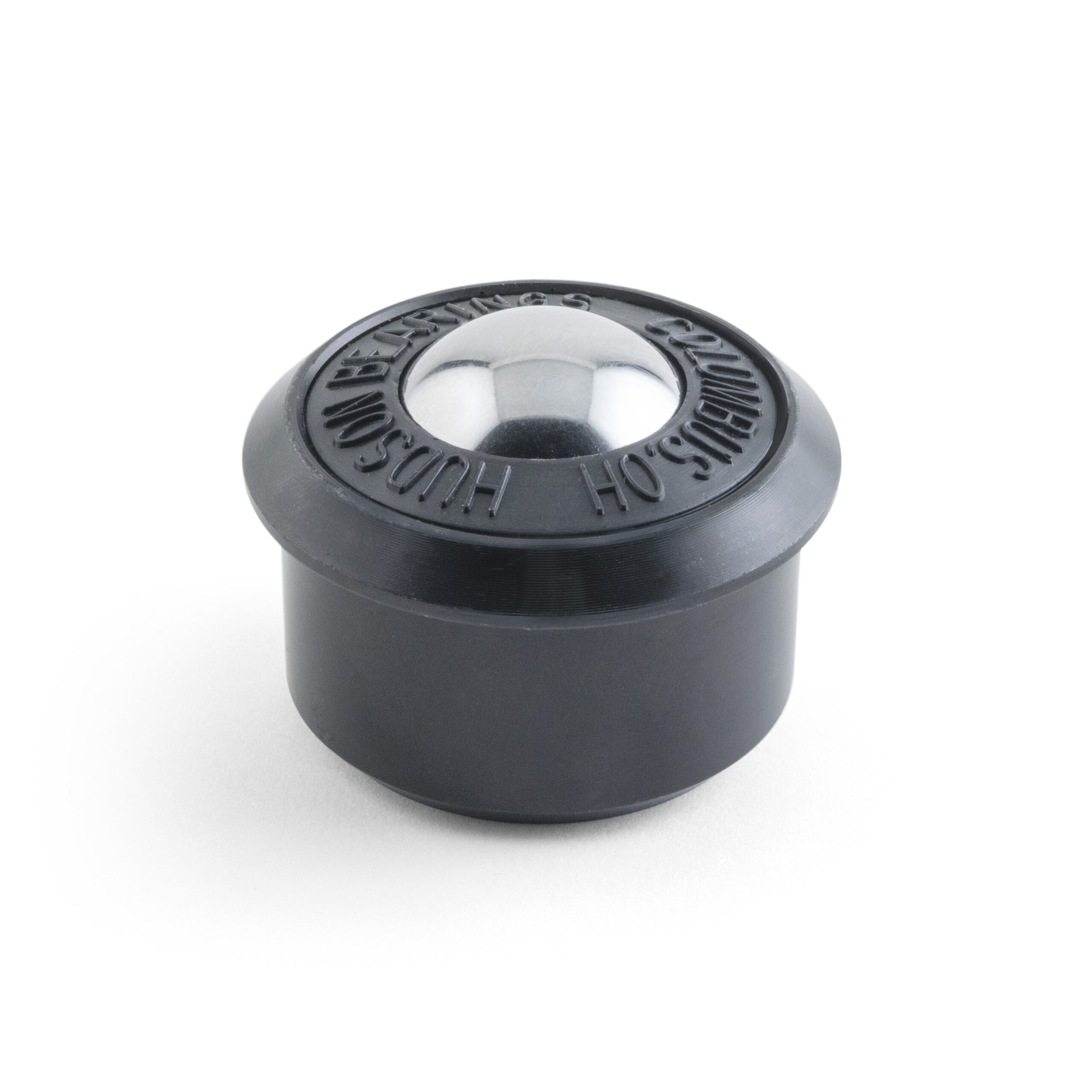

- HDBT-IR AL/SS – stainless steel
- HDBT-IR CS/SS – stainless steel

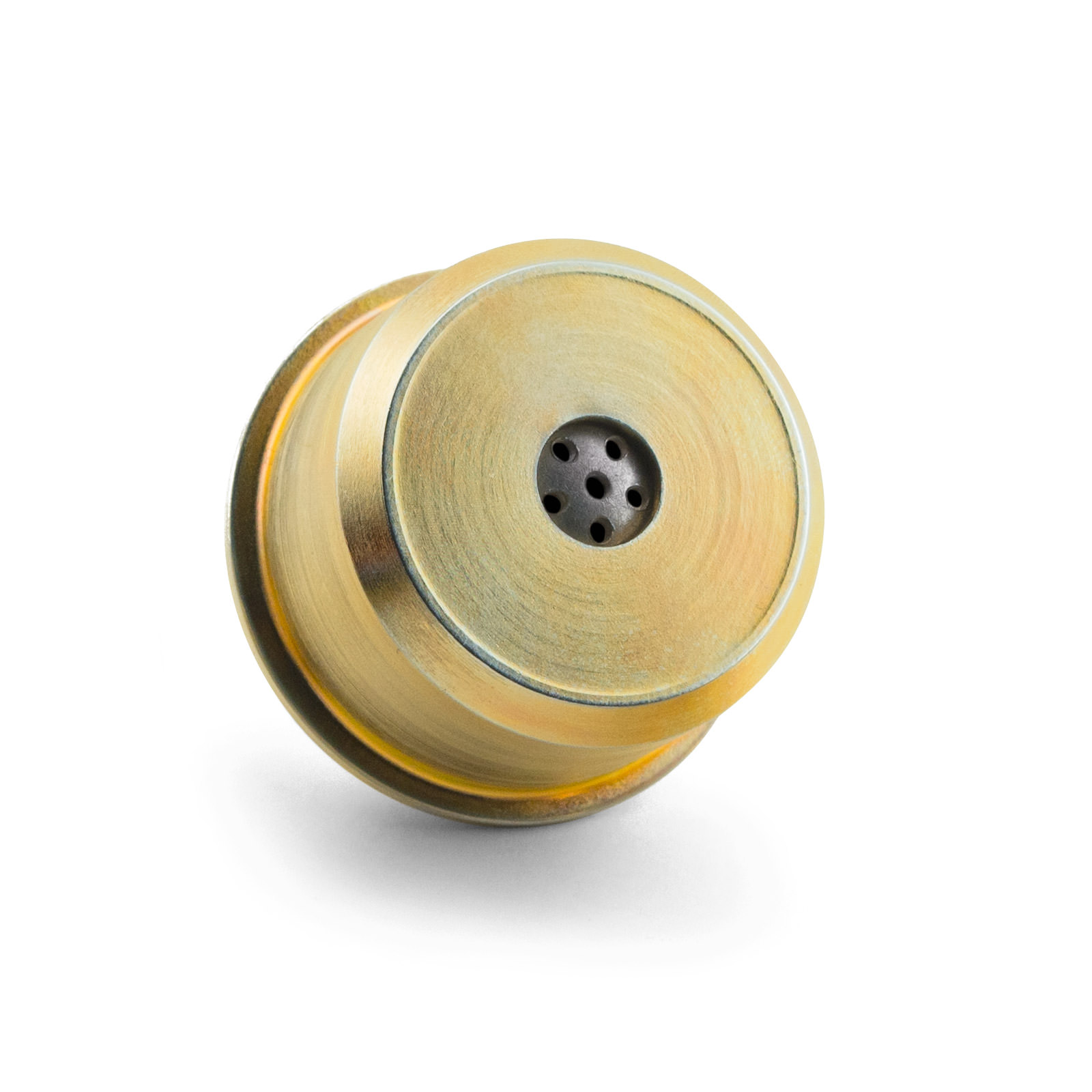

- HDBT-IR CS/SS MW – stainless steel
