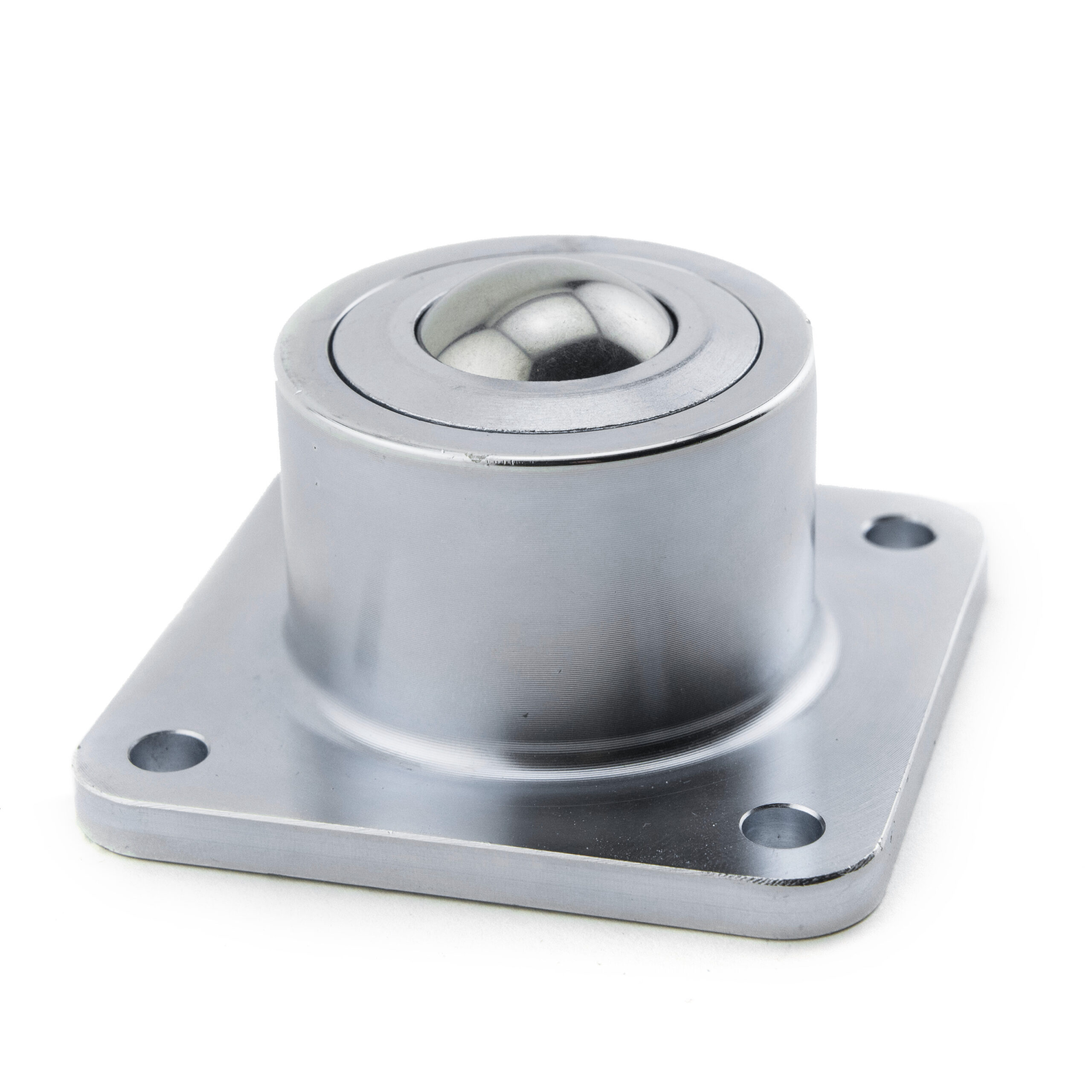

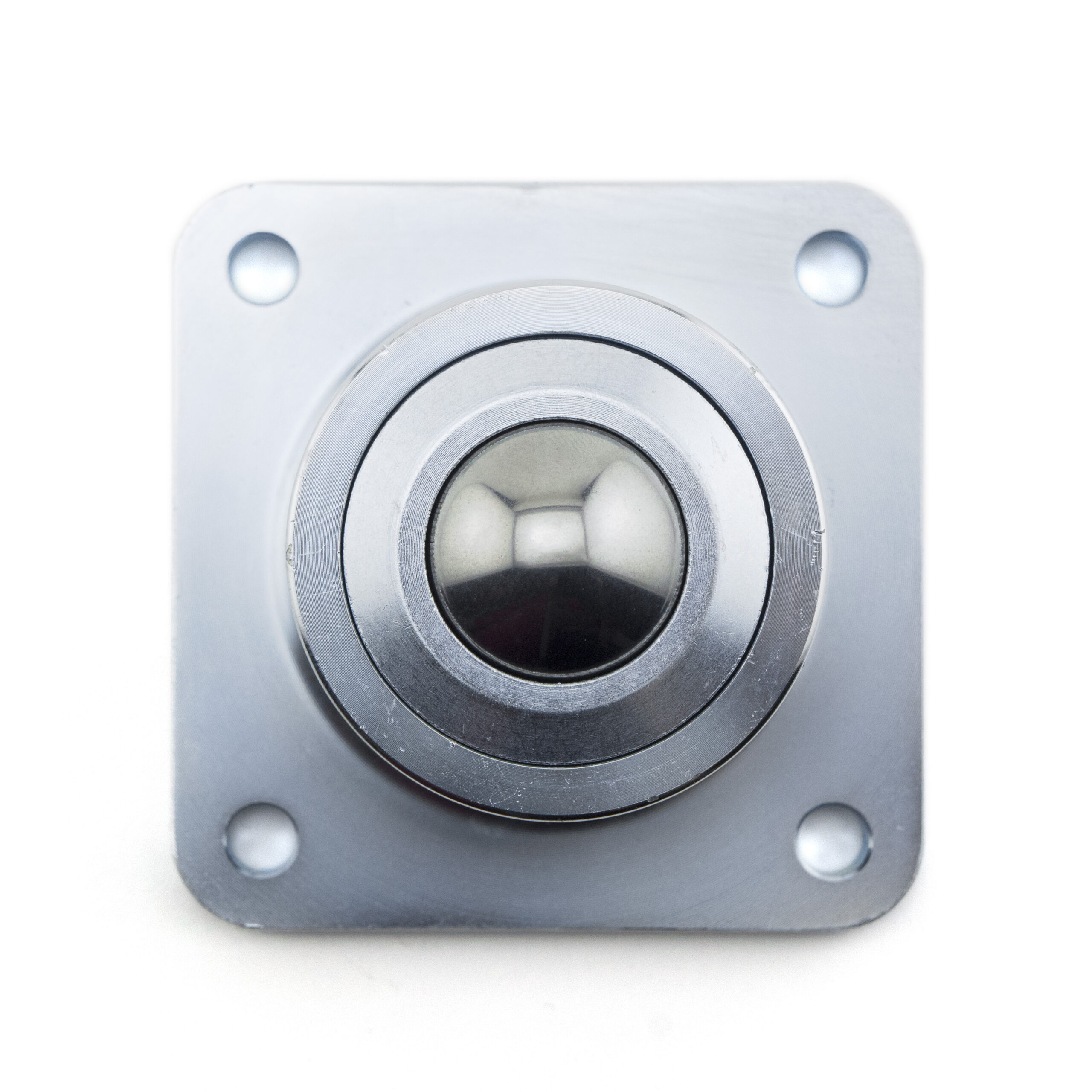

Description
750 LB. CAPACITY
- Metal cap for additional strength and durability.
- Integral flange at top allows unit to be dropped into 1-13/16” diameter hole.
- 1-3/16” Main ball rotates on 1/8” support balls.
- Carbon steel ball support cup is machined from solid steel and is hardened and plated.
- Retaining ring is solid metal.
- Available in stainless steel for additional corrosion resistance.
Download the FHDBTM 1-3/16 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|
| FHDBTM 1-3/16 CS | Carbon Steel | Carbon Steel | 750 lbs |
| FHDBTM 1-3/16 CS/SS | Stainless Steel | Carbon Steel | 750 lbs |
| FHDBTM 1-3/16 SS | Stainless Steel | Stainless Steel | 750 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every FHDBTM 1-3/16 Series part number:
- FHDBTM-3 hole CS/SS – stainless steel
- FHDBTM-CS – carbon steel
- FHDBTM-CS/SS – stainless steel
- FHDBTM-SS – stainless steel
