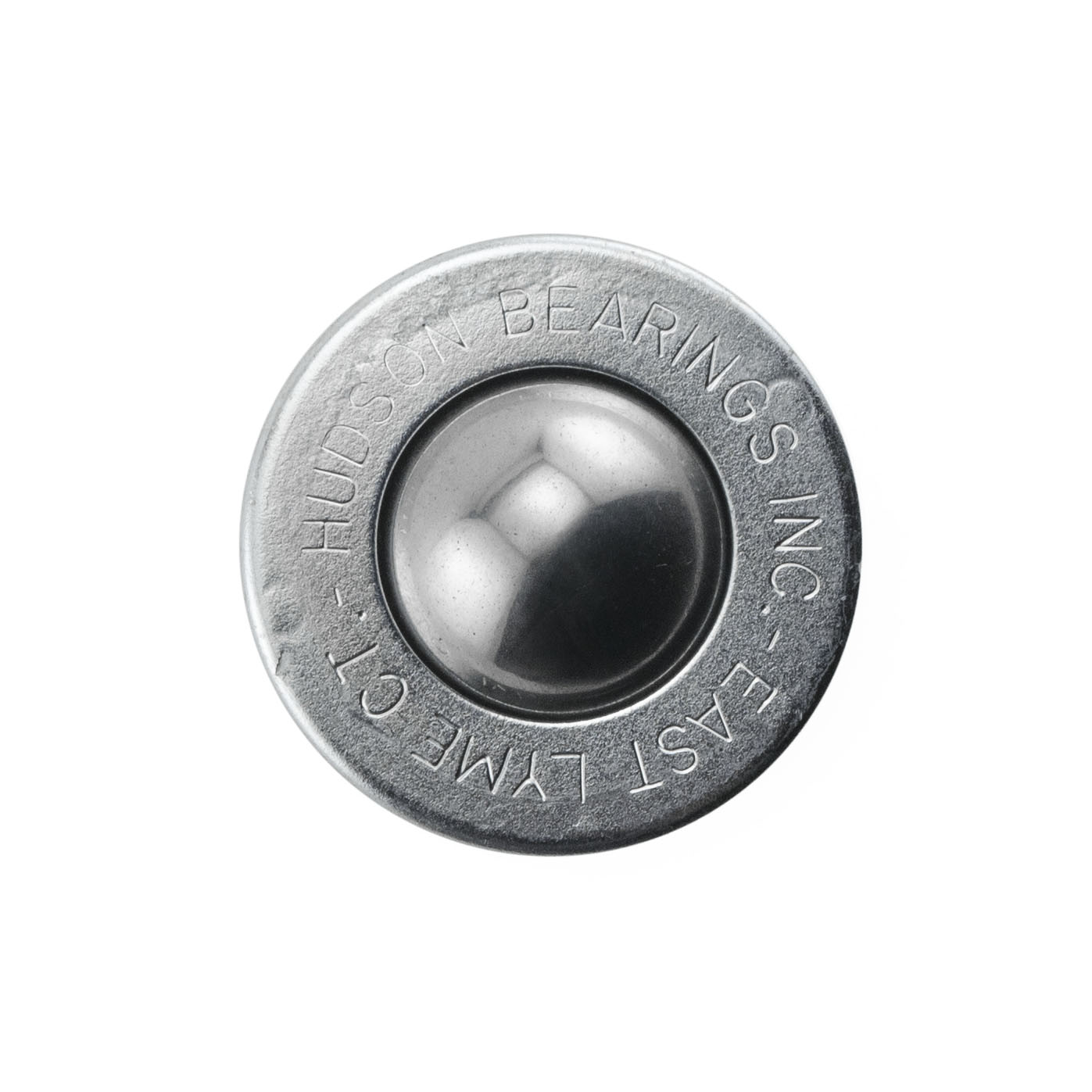

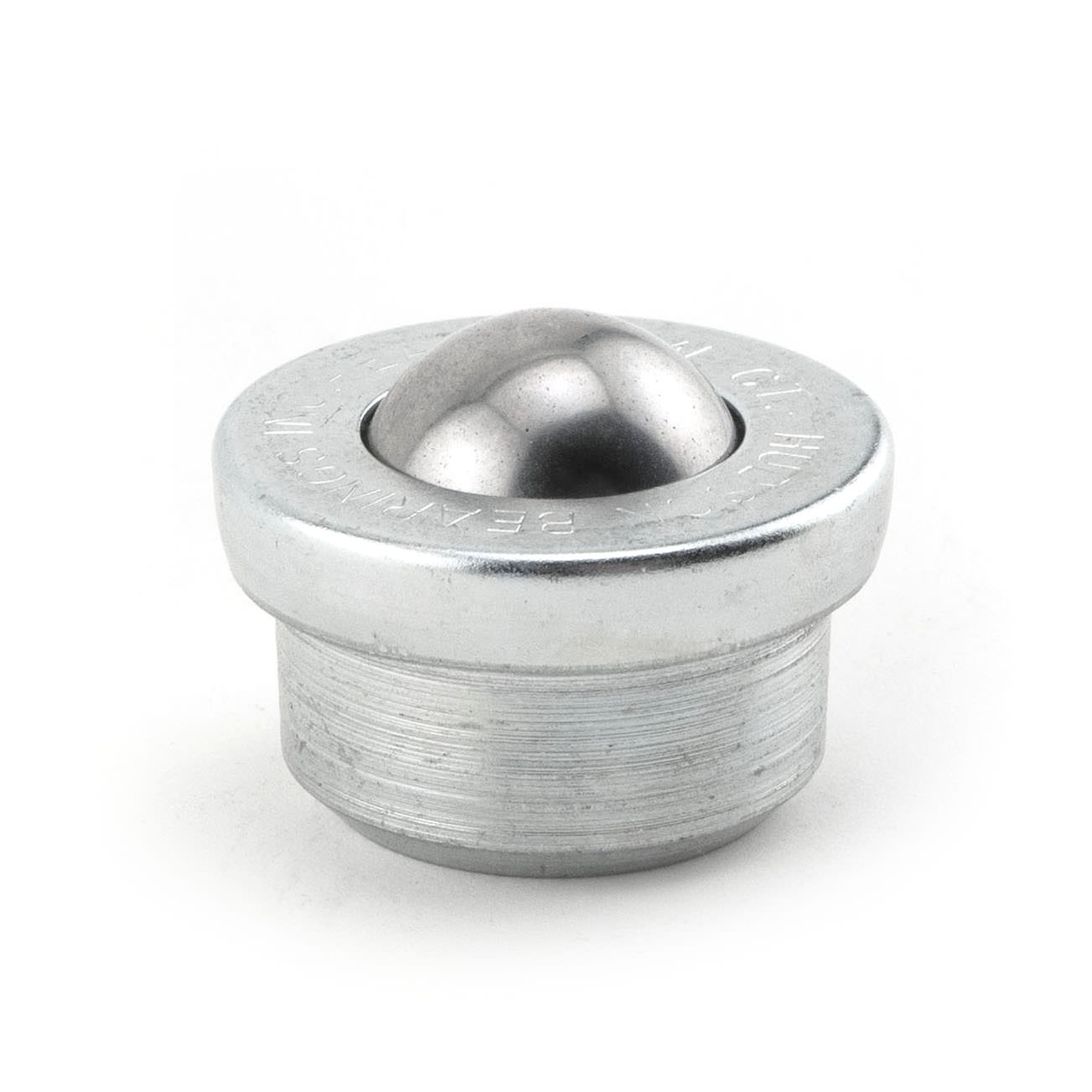

Description
SOLID MACHINED, ALL-STEEL
- Integral flange at top allows unit to be dropped into 1-13/32” diameter hole.
- 1” Main ball rotates on 1/8” support balls.
- Carbon steel ball support cup is machined from solid steel and is hardened and plated.
- Plated steel cover.
- Available in stainless steel for additional corrosion resistance.
Download the MBT-1 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|
| MBT 1CS | Carbon Steel | Carbon Steel | 200 lbs |

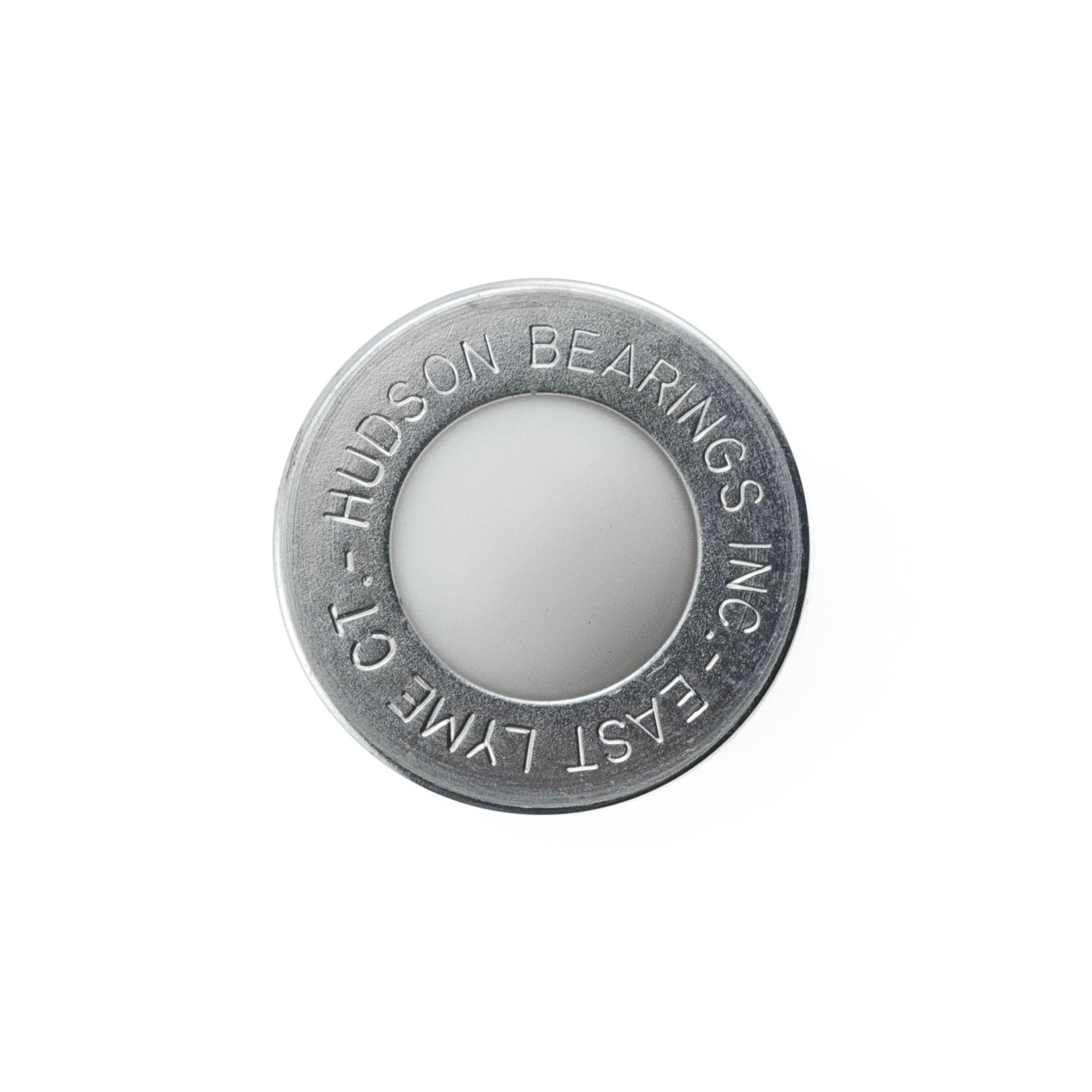

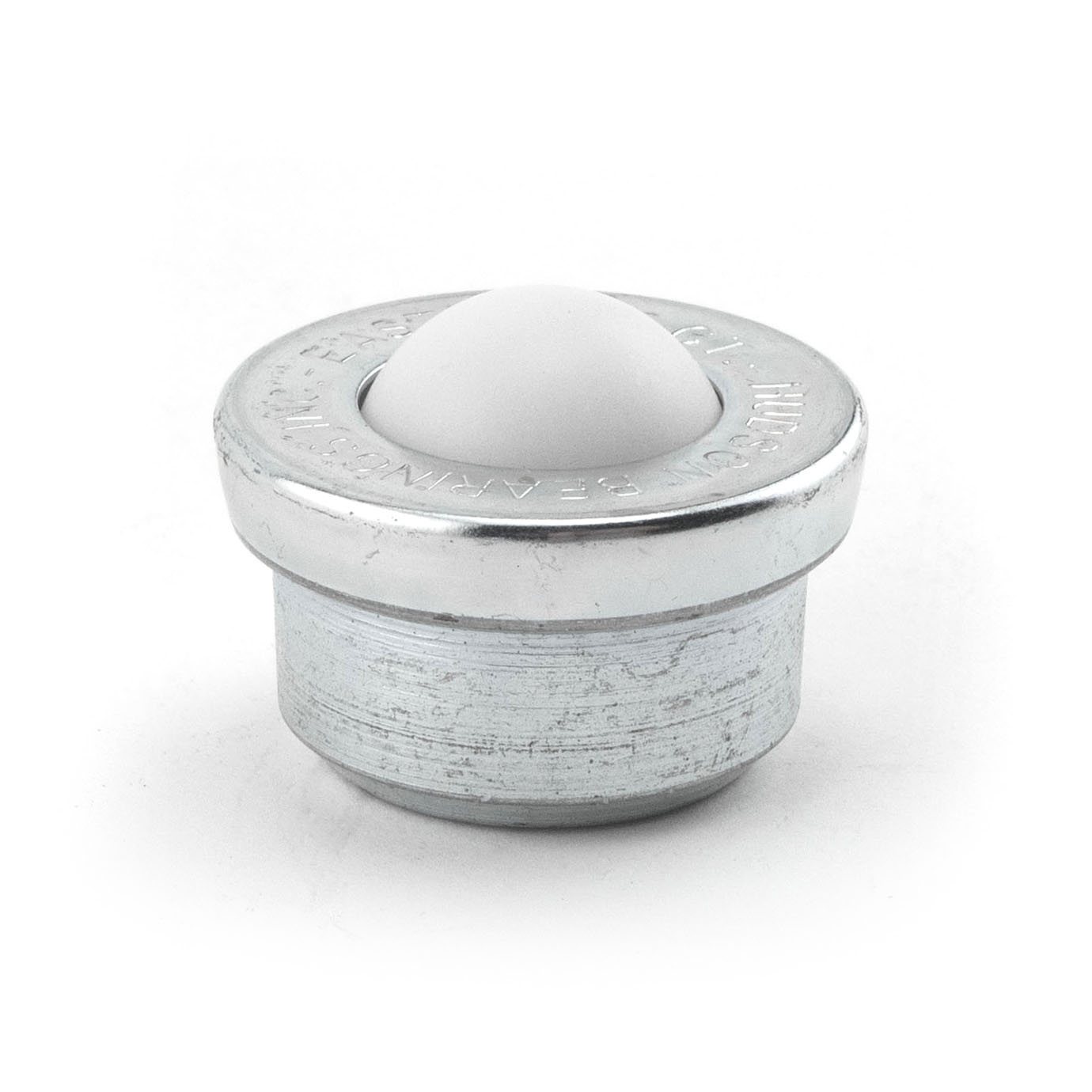

| NMBT 1CS | Nylon | Carbon Steel | 200 lbs |
| MBT 1CS/SS | Stainless Steel | Carbon Steel | 200 lbs |

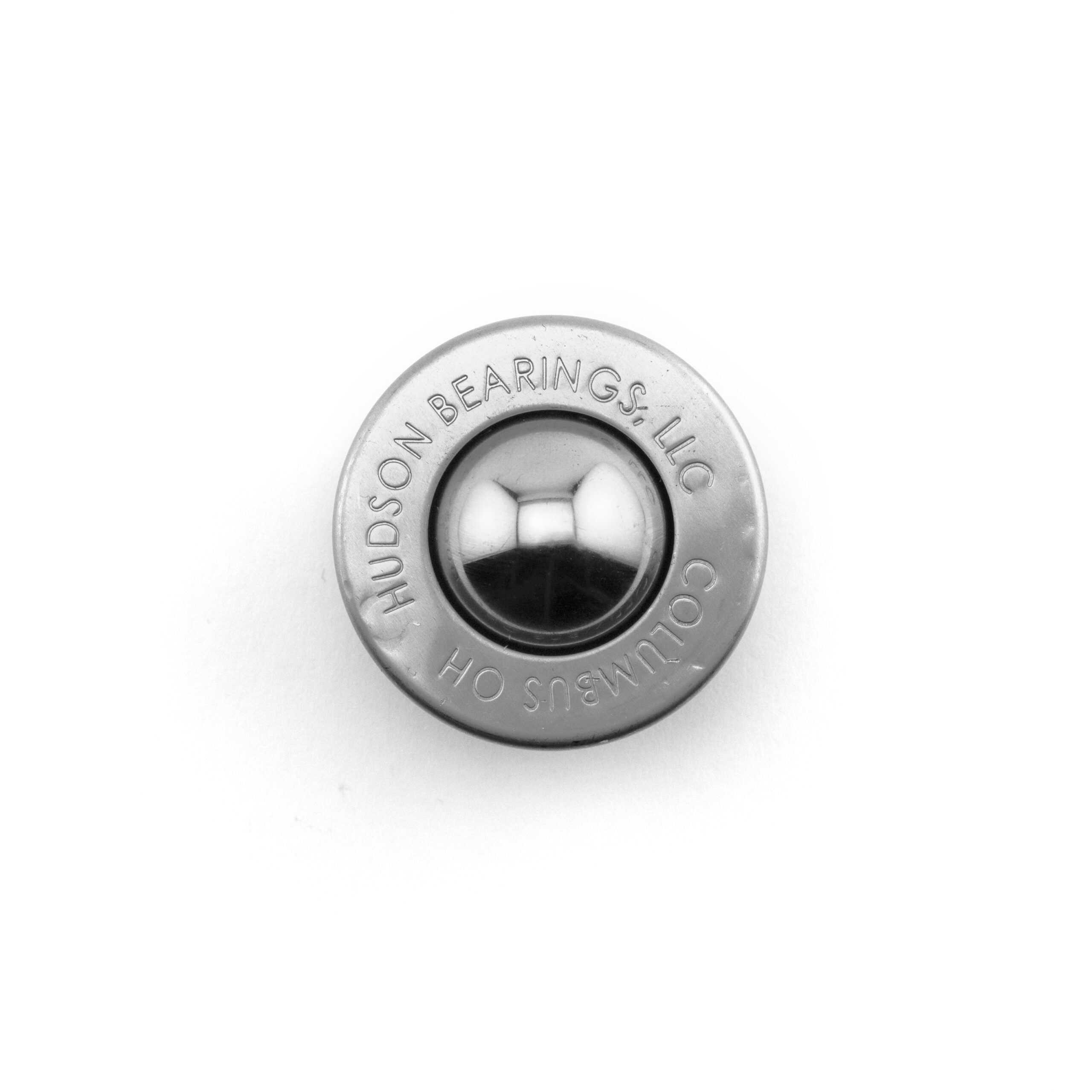

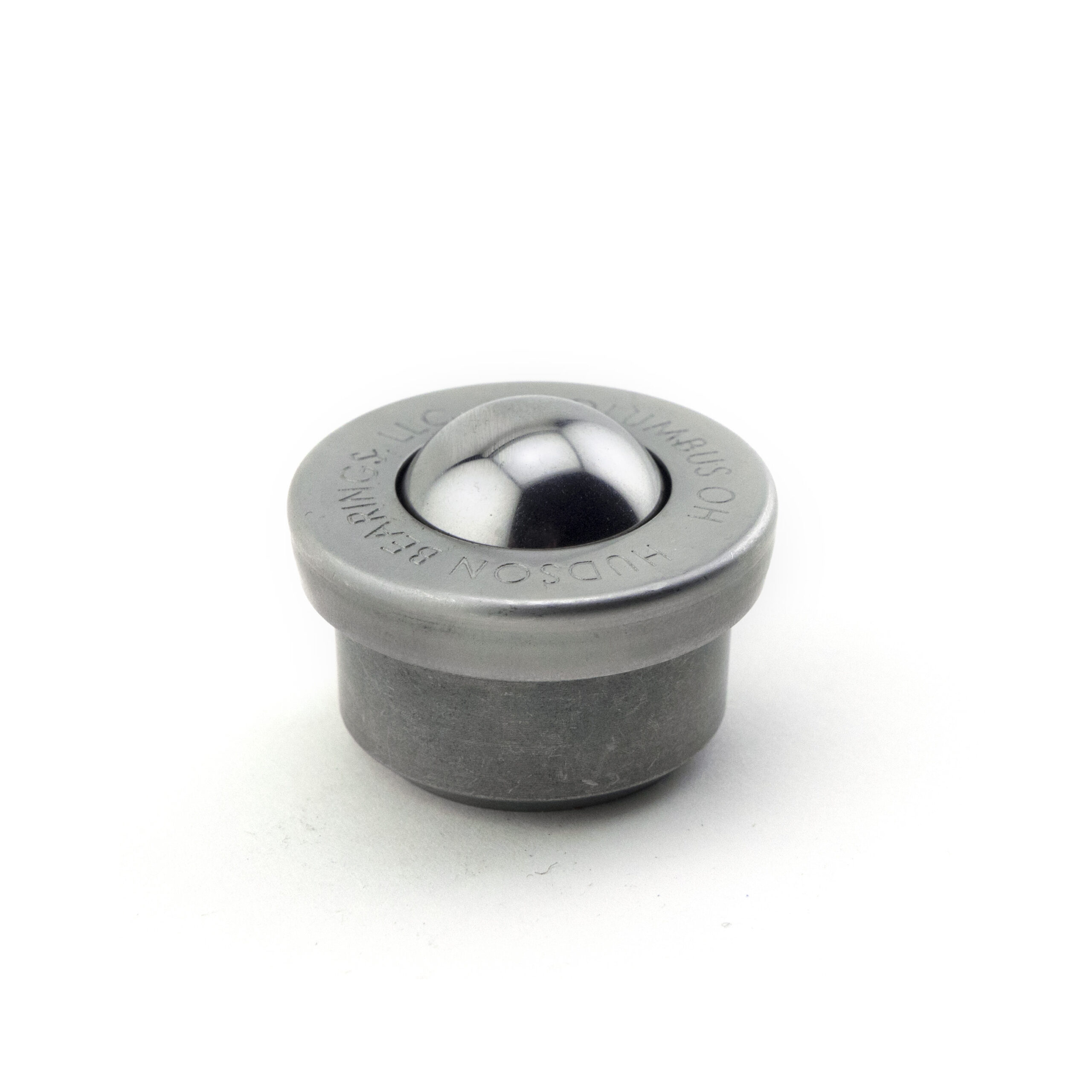

| MBT 1SS | Stainless Steel | Stainless Steel | 200 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every MBT-1 Series part number:
- MBT 1 SS – stainless steel, 200 lbs
- MBT-1CS – carbon steel, 200 lbs
- MBT-1CS/SS – stainless steel, 200 lbs
- NMBT 1 SS – nylon
- NMBT-1CS – nylon, 200 lbs
- NMBT-1CS/SS – nylon
