Description
SOLID MACHINED, ALL-STEEL
- Integral flange at top allows unit to be dropped into 1” diameter hole.
- 5/8” Main ball rotates on 3/32” support balls.
- Carbon steel ball support cup is machined from solid steel and is hardened and plated.
- Plated steel cover.
- Available in stainless steel for additional corrosion resistance.
Download the MBT 5/8 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

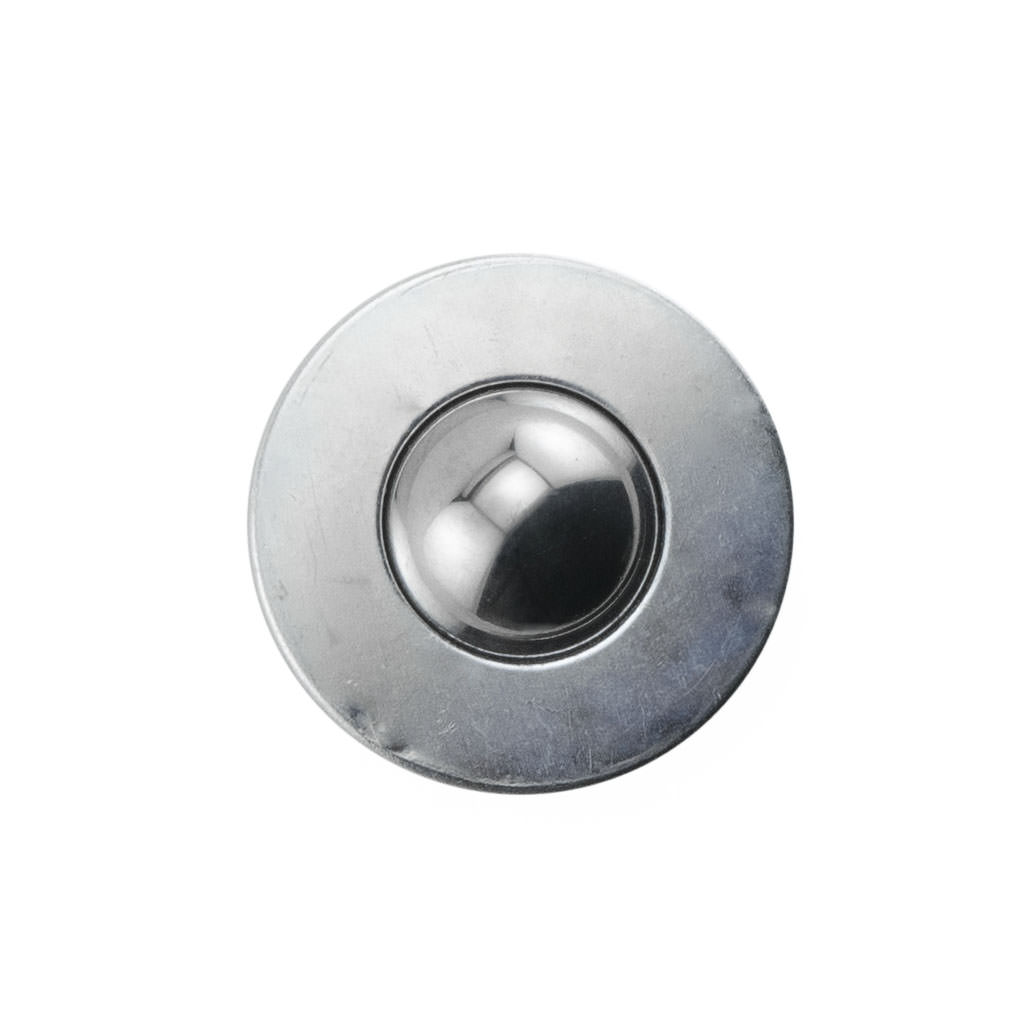

| MBT 5/8 CS | Carbon Steel | Carbon Steel | 125 lbs |

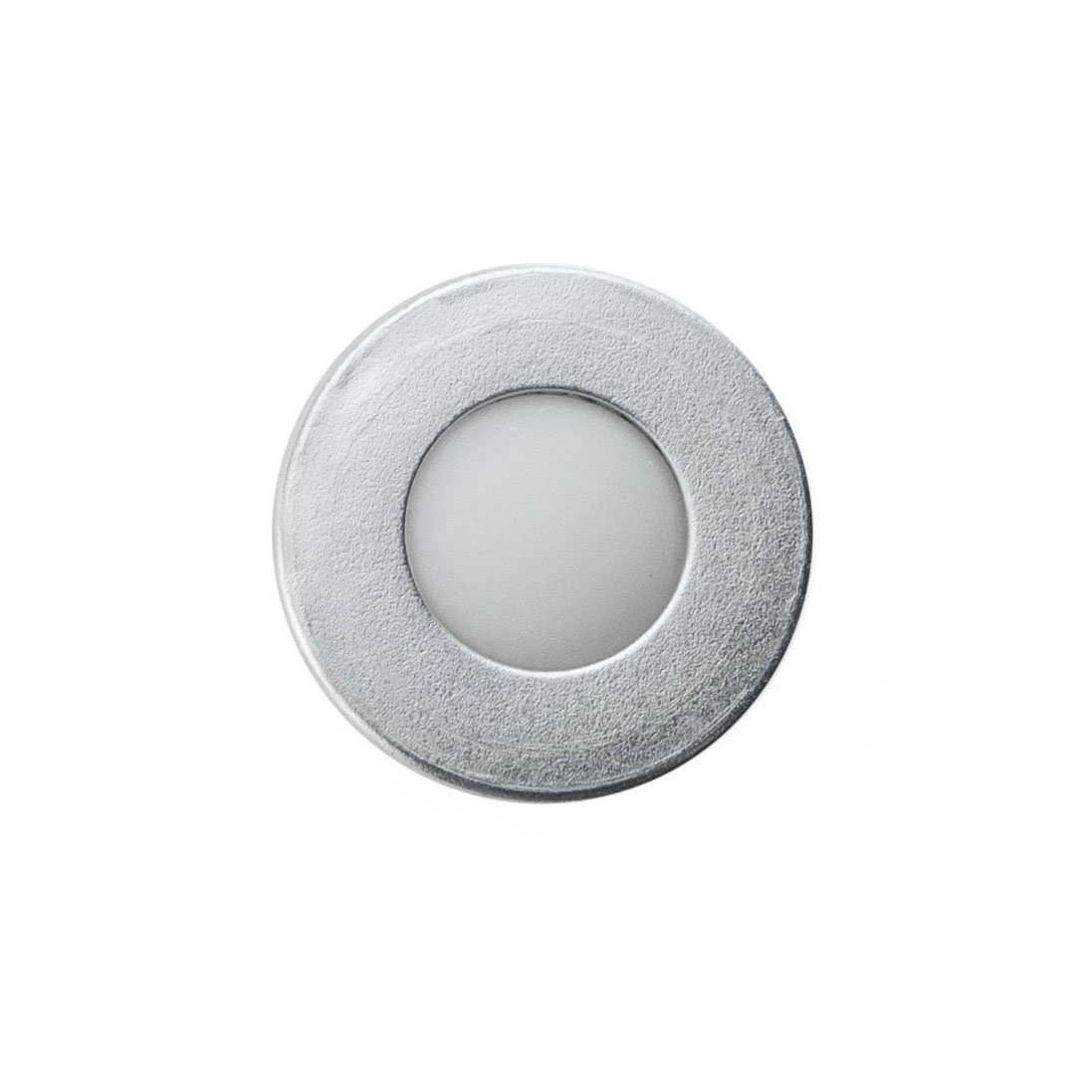

| NMBT 5/8 CS | Nylon | Carbon Steel | 125 lbs |
| MBT 5/8 CS/SS | Stainless Steel | Carbon Steel | 125 lbs |
| MBT 5/8 SS | Stainless Steel | Stainless Steel | 125 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every MBT 5/8 Series part number:
- MBT-5/8CS – carbon steel, 125 lbs
- MBT-5/8CS/SS – stainless steel, 125 lbs
- MBT-5/8SS – stainless steel, 125 lbs
- NMBT-5/8CS – nylon, 125 lbs
