Description
VERSATILE, COMPACT, ALL-STEEL
- Can be recessed into the surface of the application forming a smooth, multi-directional rolling surface.
- Precision-formed steel housing.
- Integral mounting holes for ease of installation.
- Available with stainless steel balls for additional corrosion resistance.
Download the FSBT Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

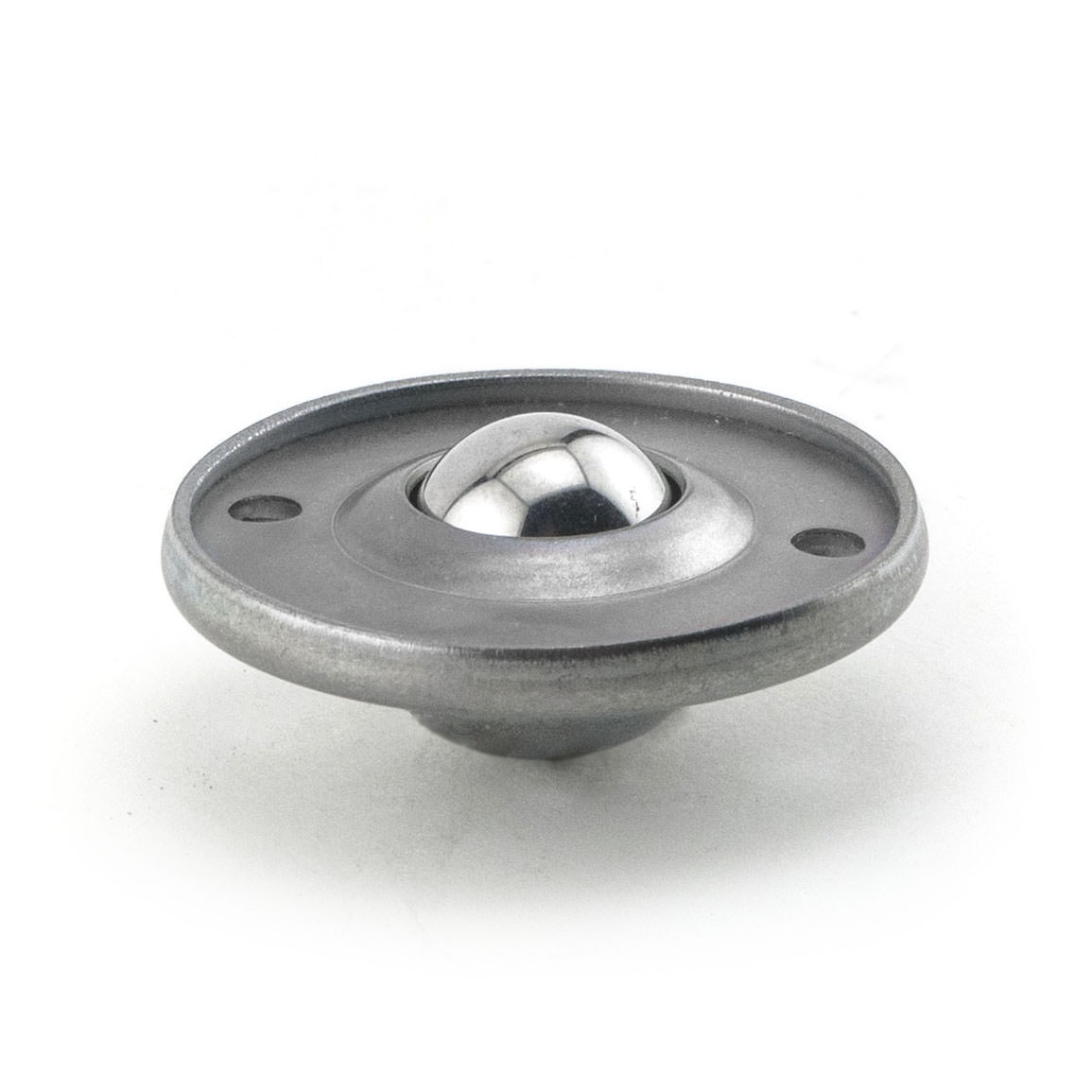

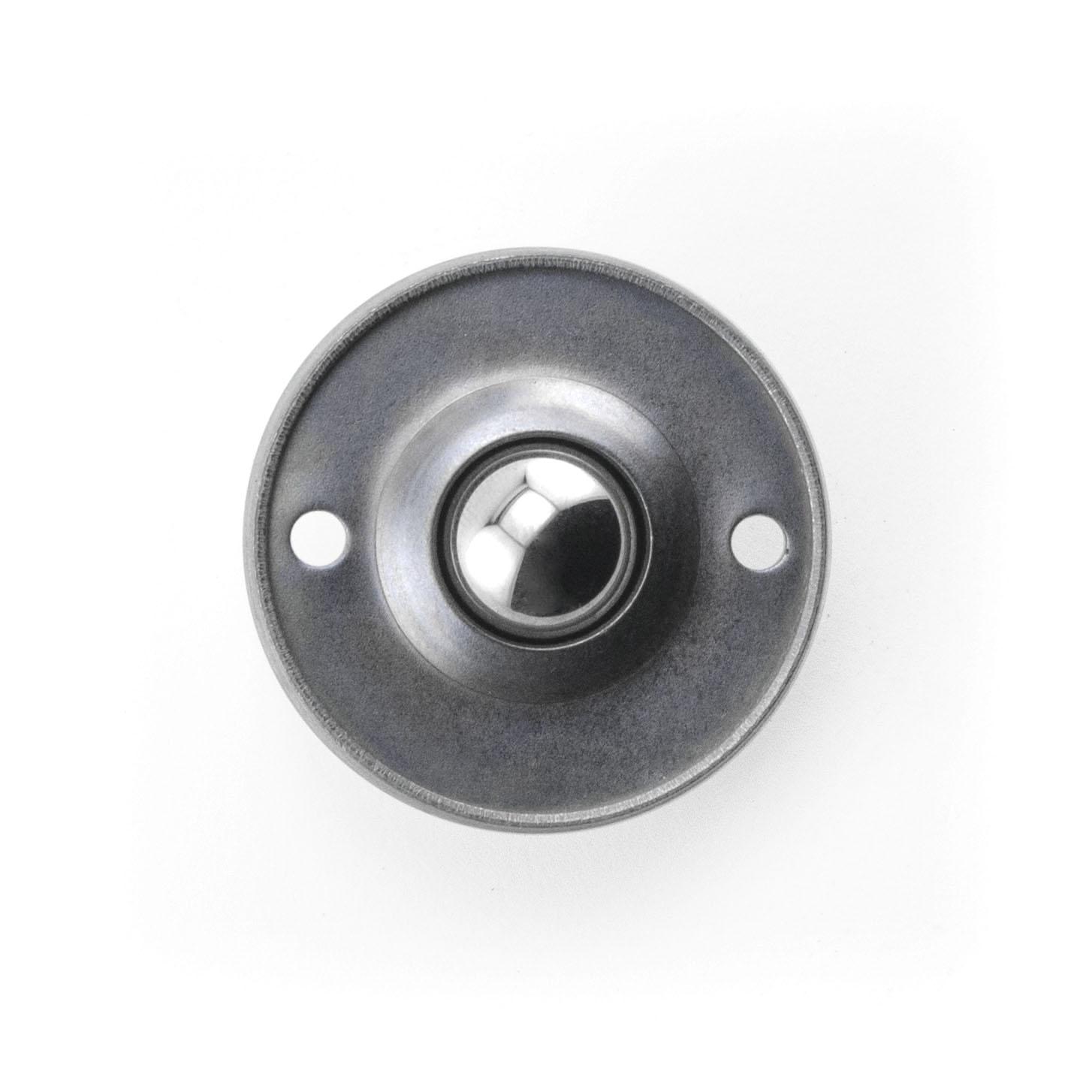

| FSBT 5/8 CS | Carbon Steel | Carbon Steel | 40 lbs |

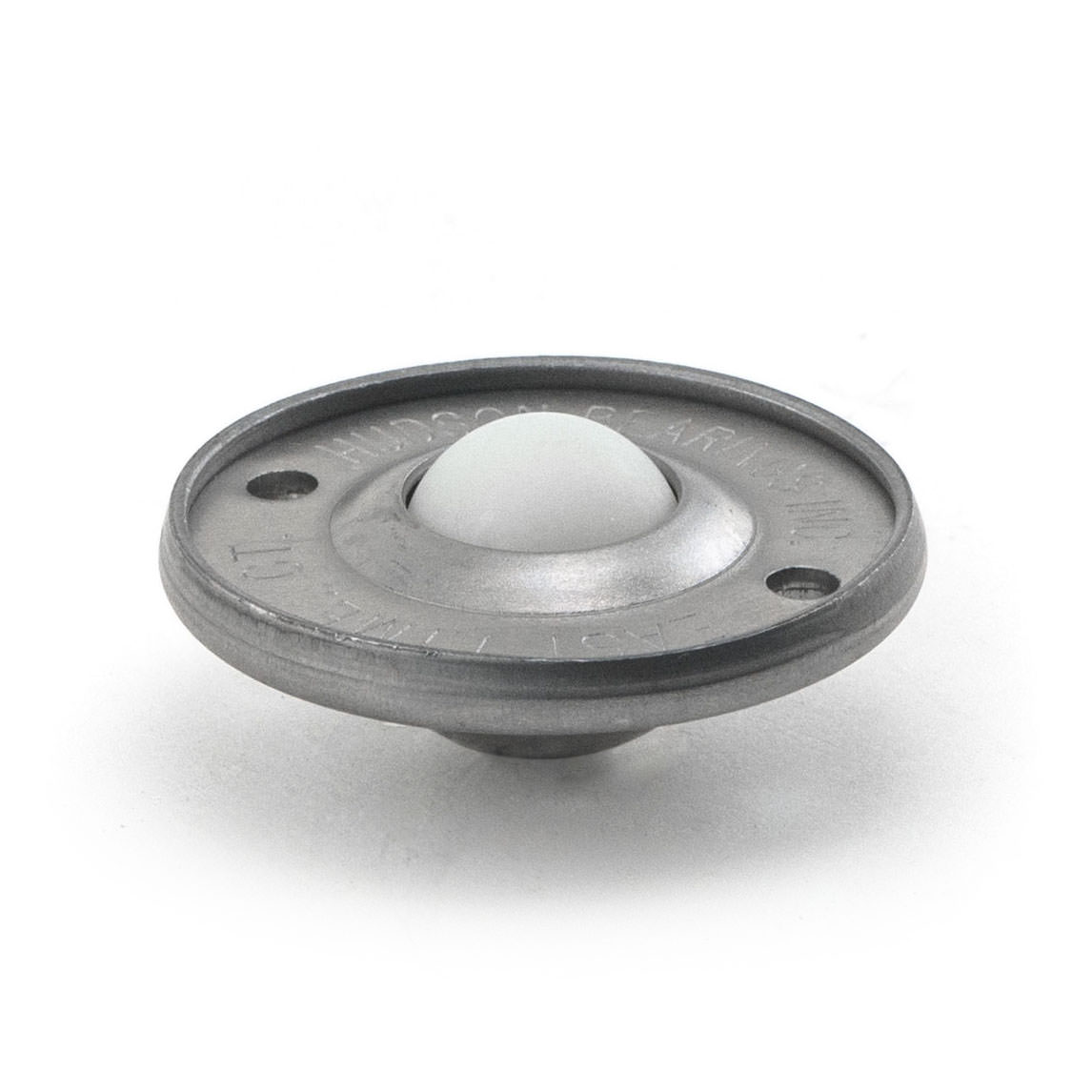

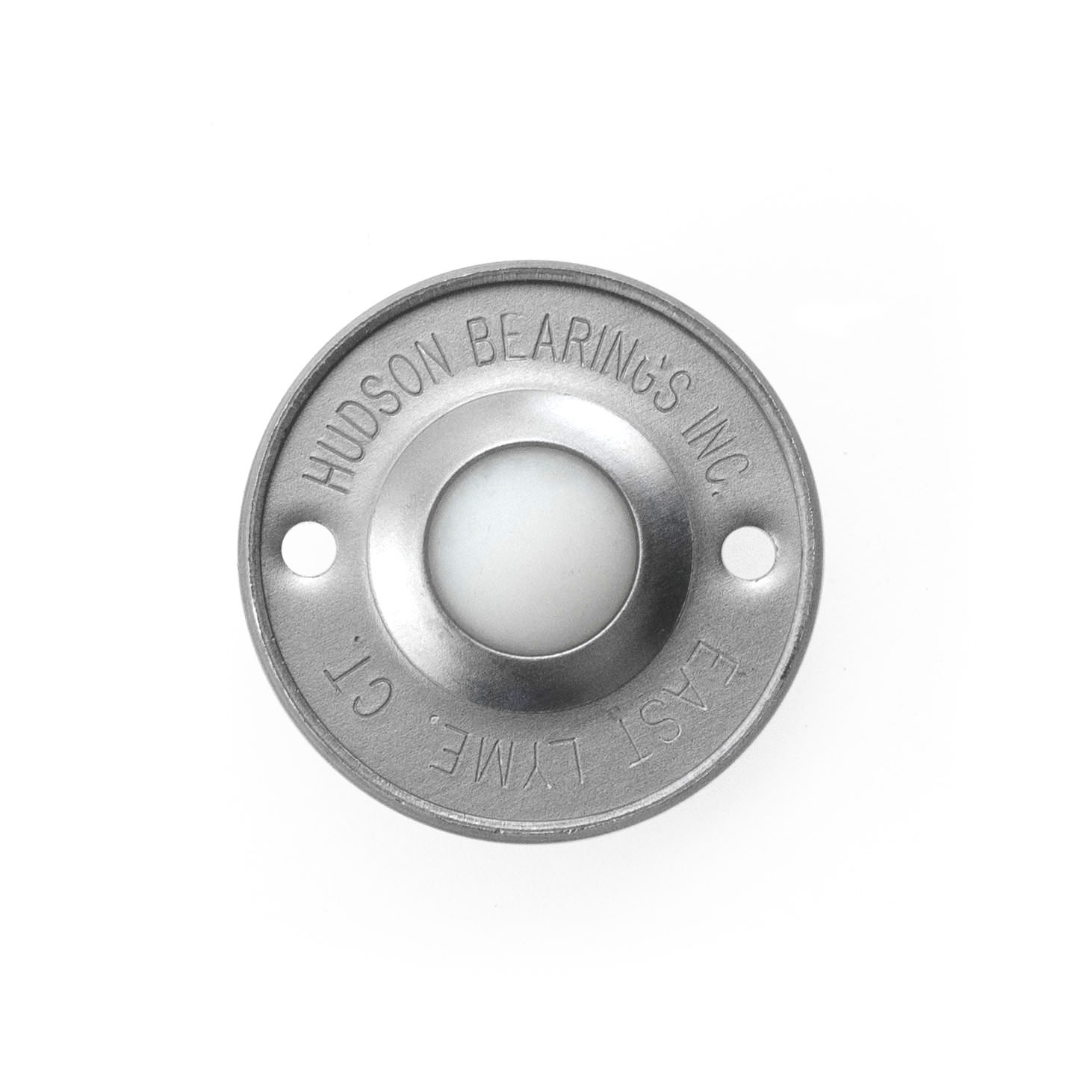

| NFSBT 5/8 CS | Nylon | Carbon Steel | 40 lbs |
| FSBT 5/8 CS/SS | Stainless | Carbon Steel | 40 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every FSBT 5/8 Series part number:
- FSBT 5/8 SS – stainless steel
- FSBT-5/8 CS – carbon steel, 40 lbs
- FSBT-5/8 CS/SS – stainless, 40 lbs
- NFSBT-5/8 CS – nylon, 40 lbs
