Description

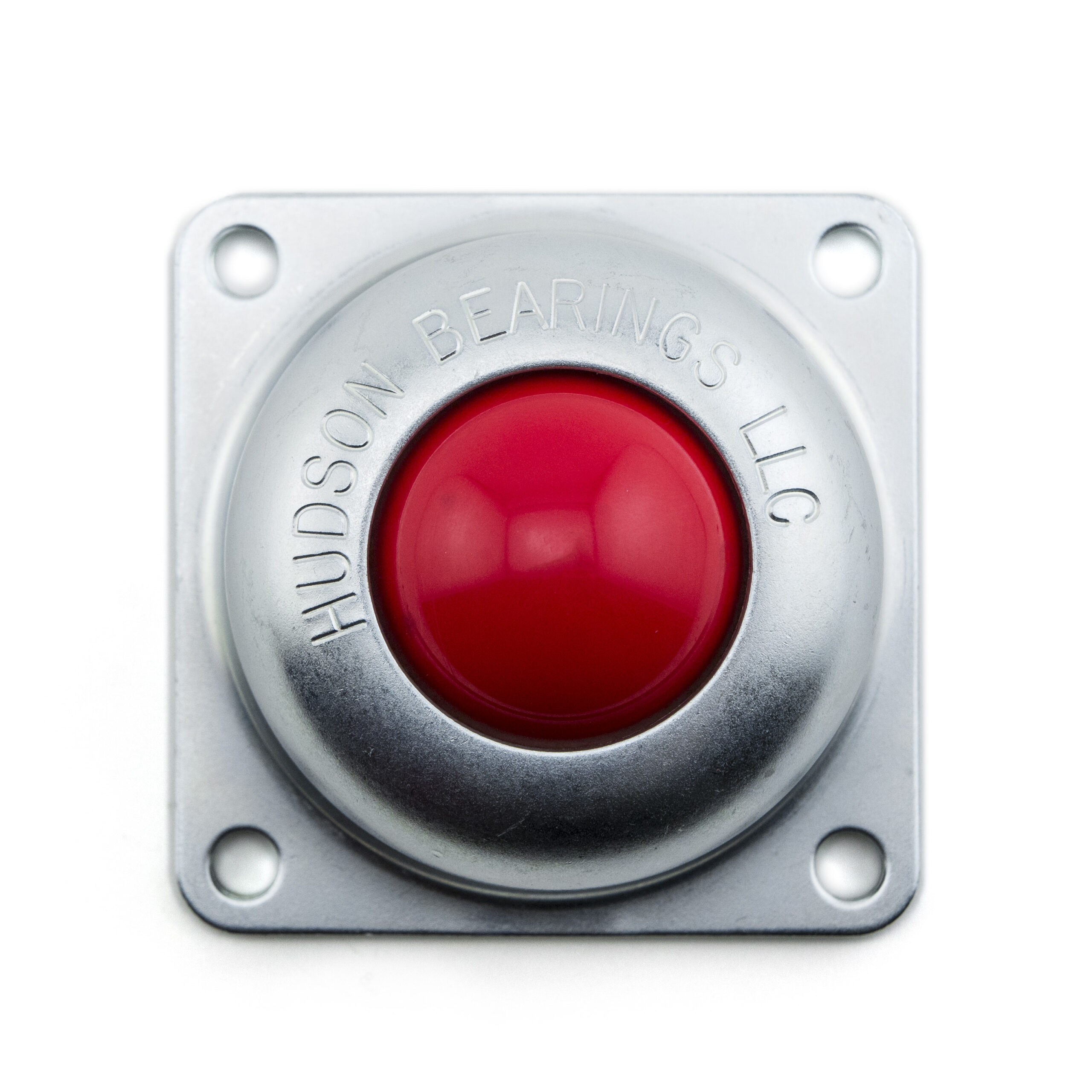

FOUR-HOLE, FLANGE MOUNTED, ALL-STEEL
- 1-1/2” Main ball rotates on 3/16” support balls.
- Ball support cup is hardened and plated.
- Protective cover assures low torque and longevity.
- Available in stainless steel for additional corrosion resistance.

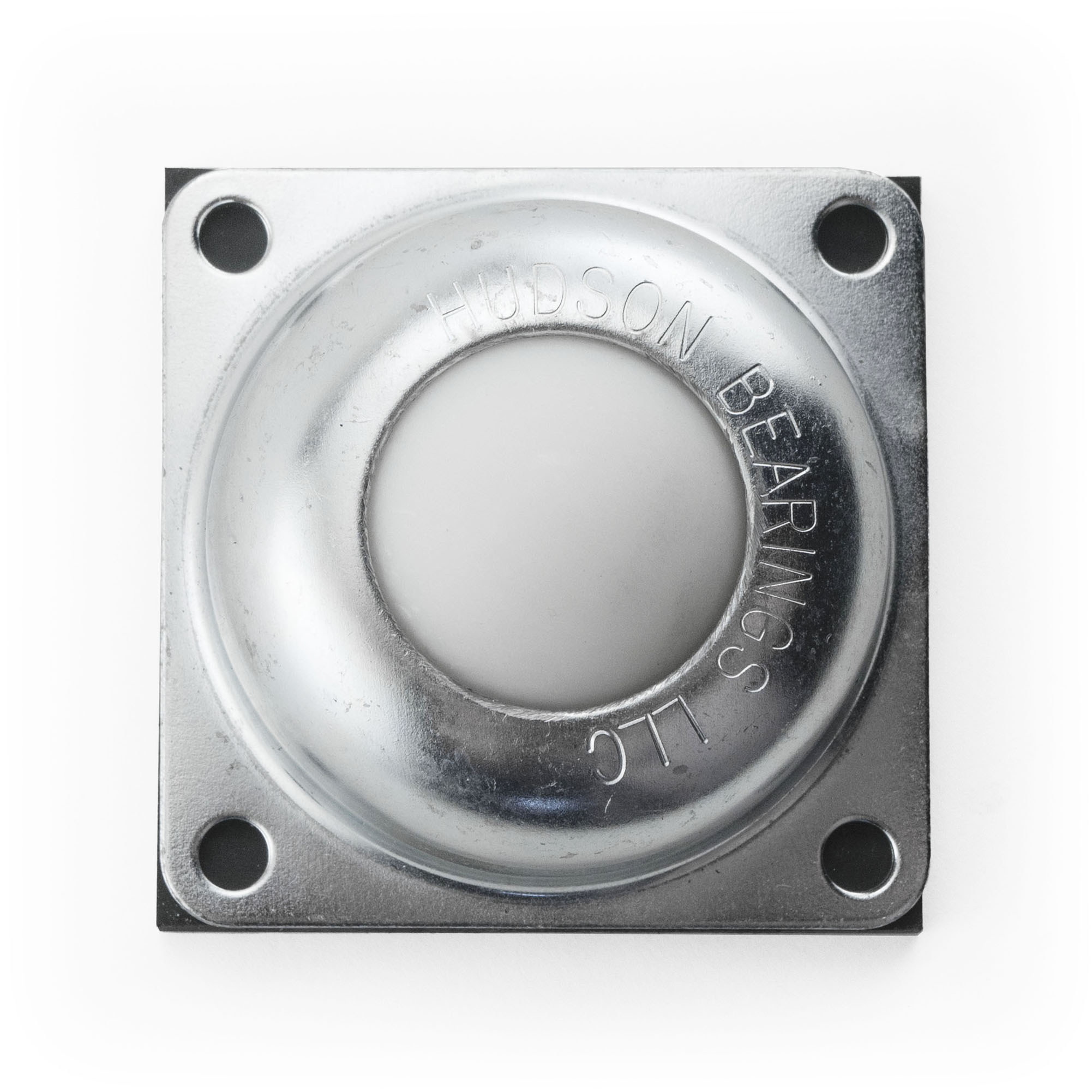

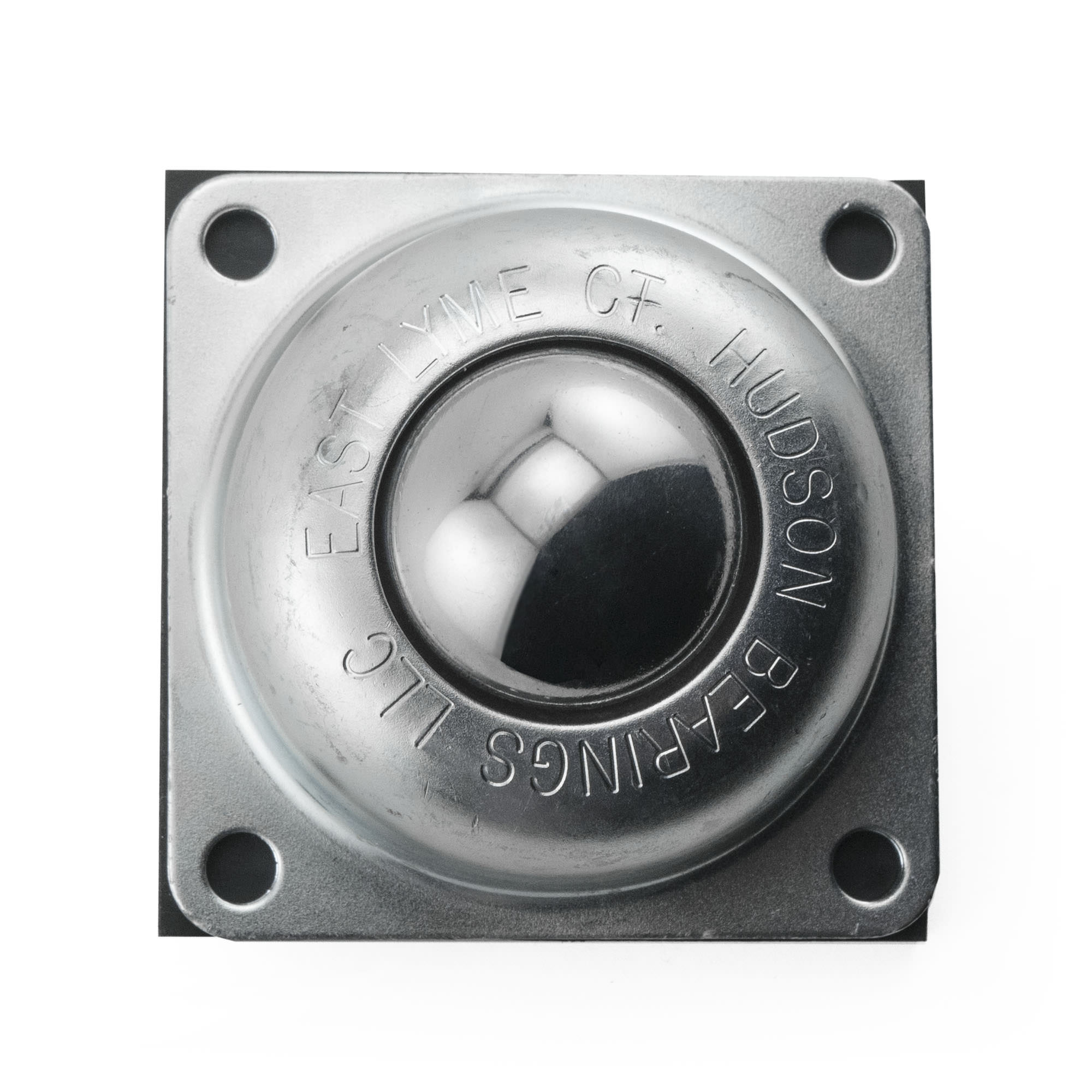

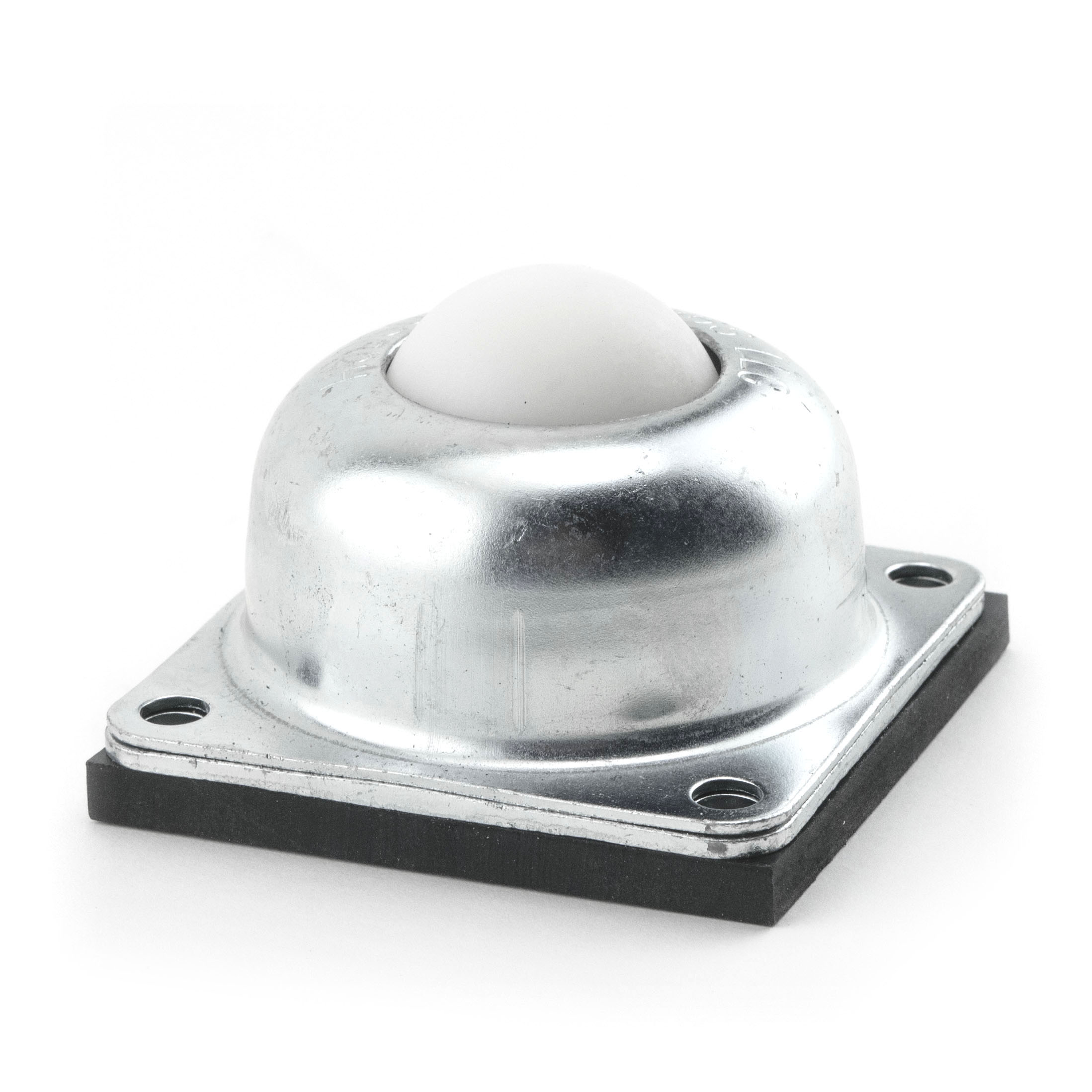

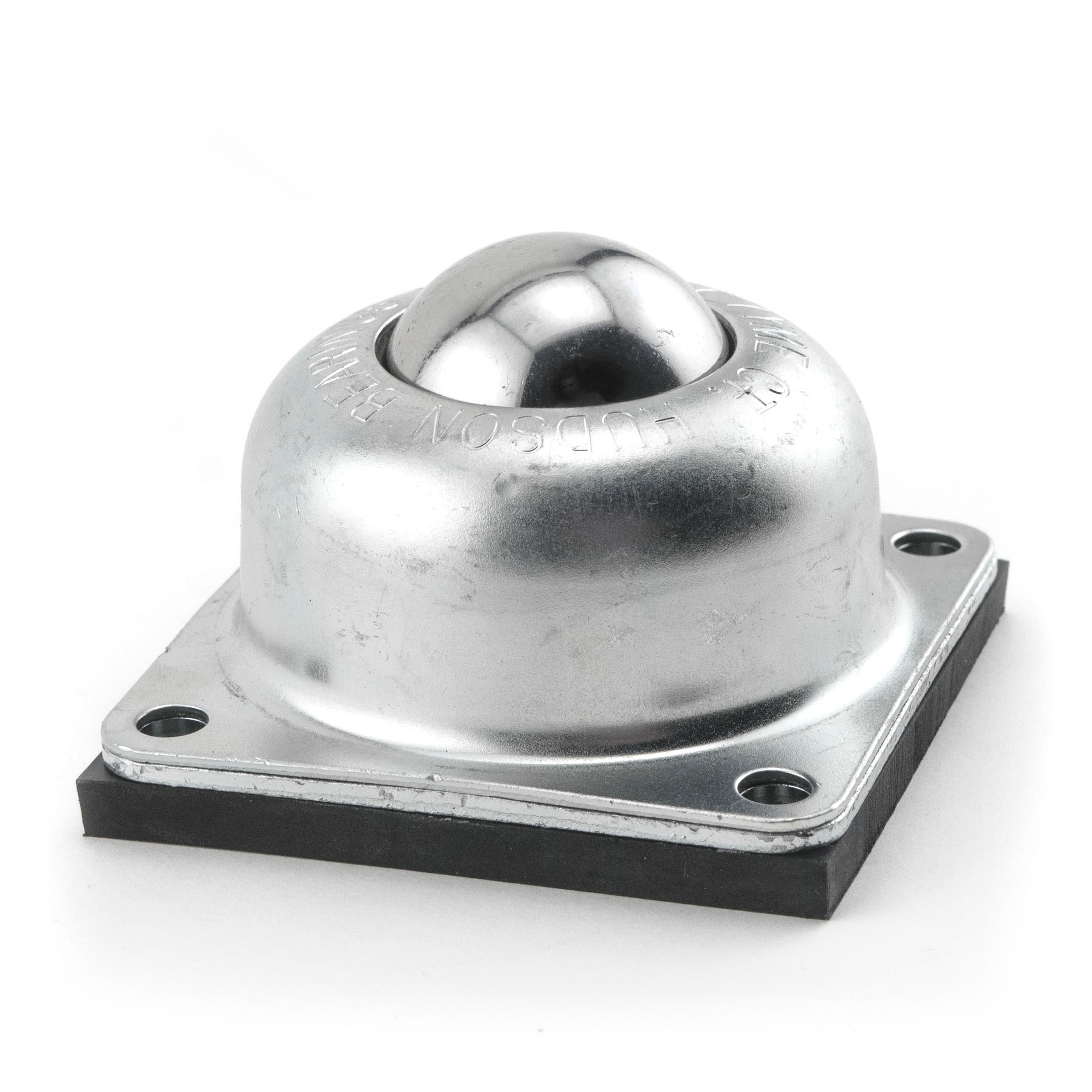

NOTE: Neoprene cushion available to permit vertical deflection and assist with uniform load distribution. (Part number CBT 1-1/2)
Download the BT 1-1/2 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

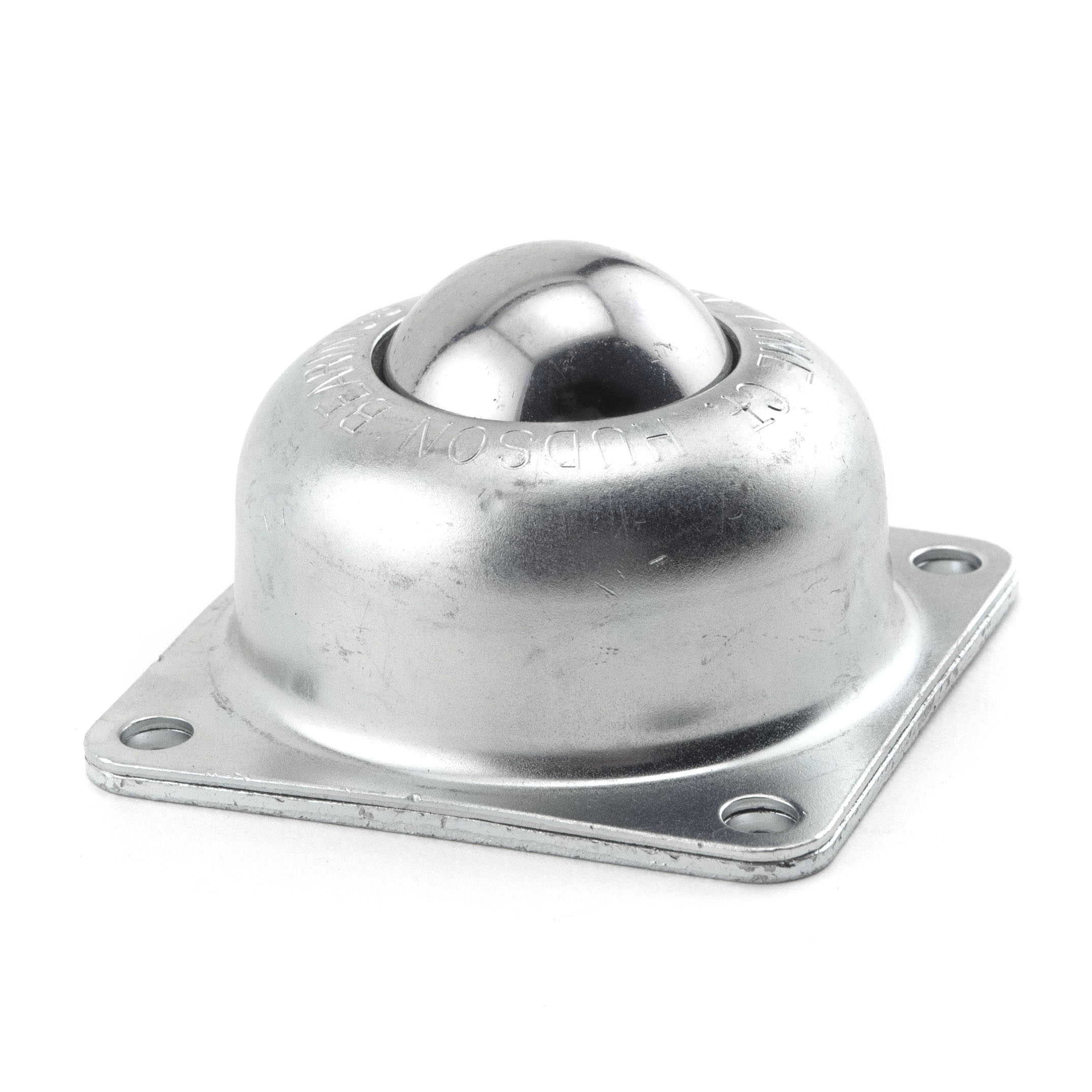

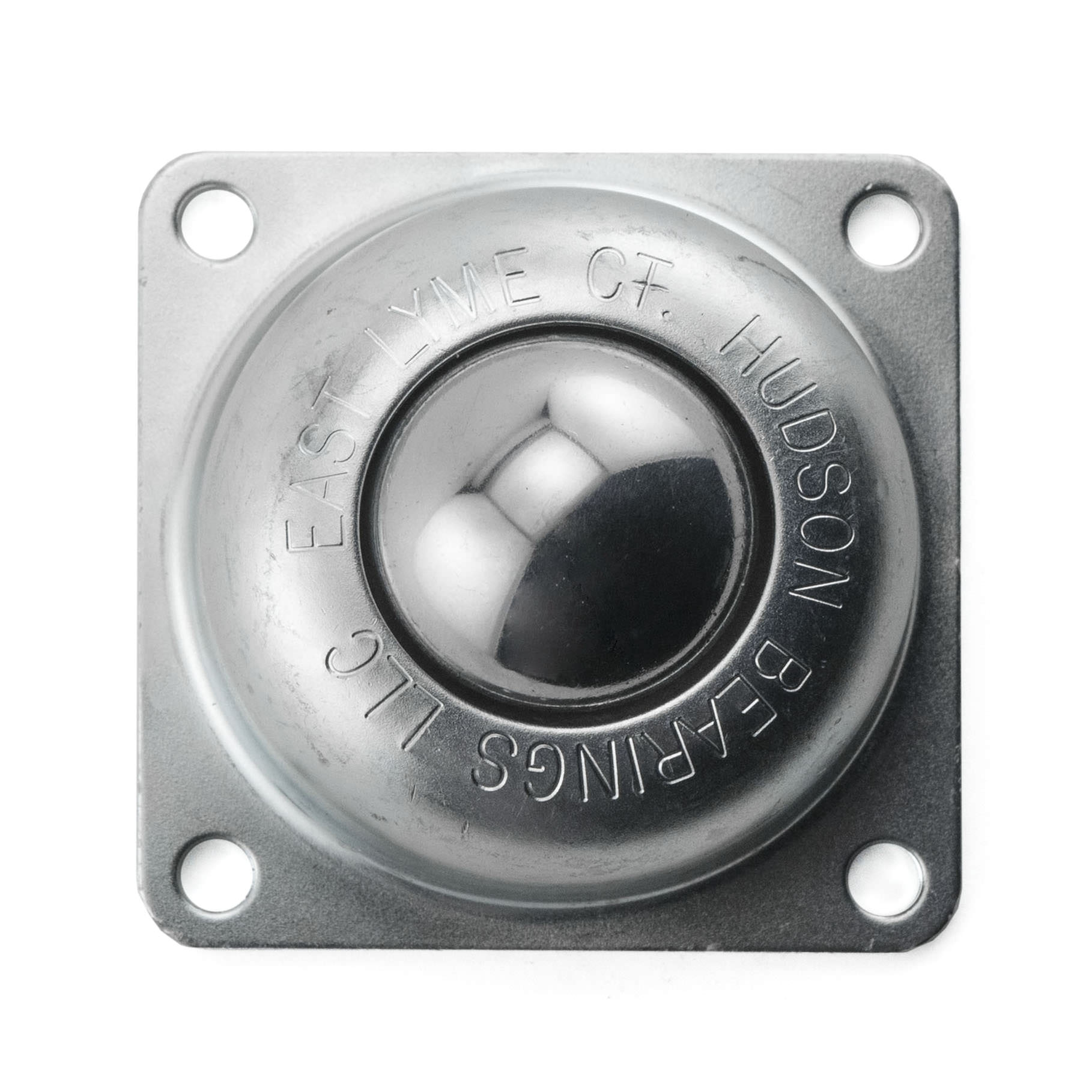

| BT 1-1/2 CS | Carbon Steel | Carbon Steel | 250 lbs |

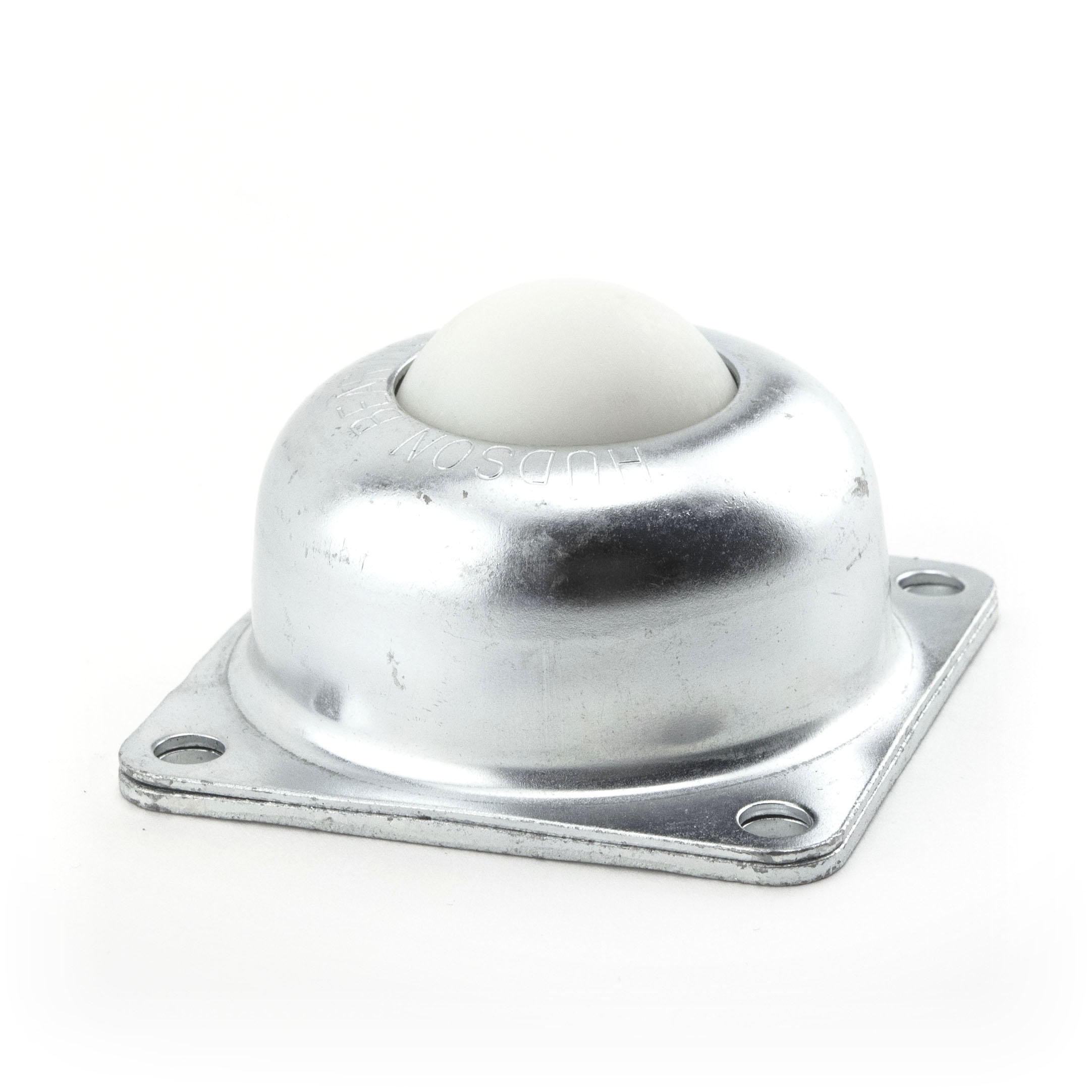

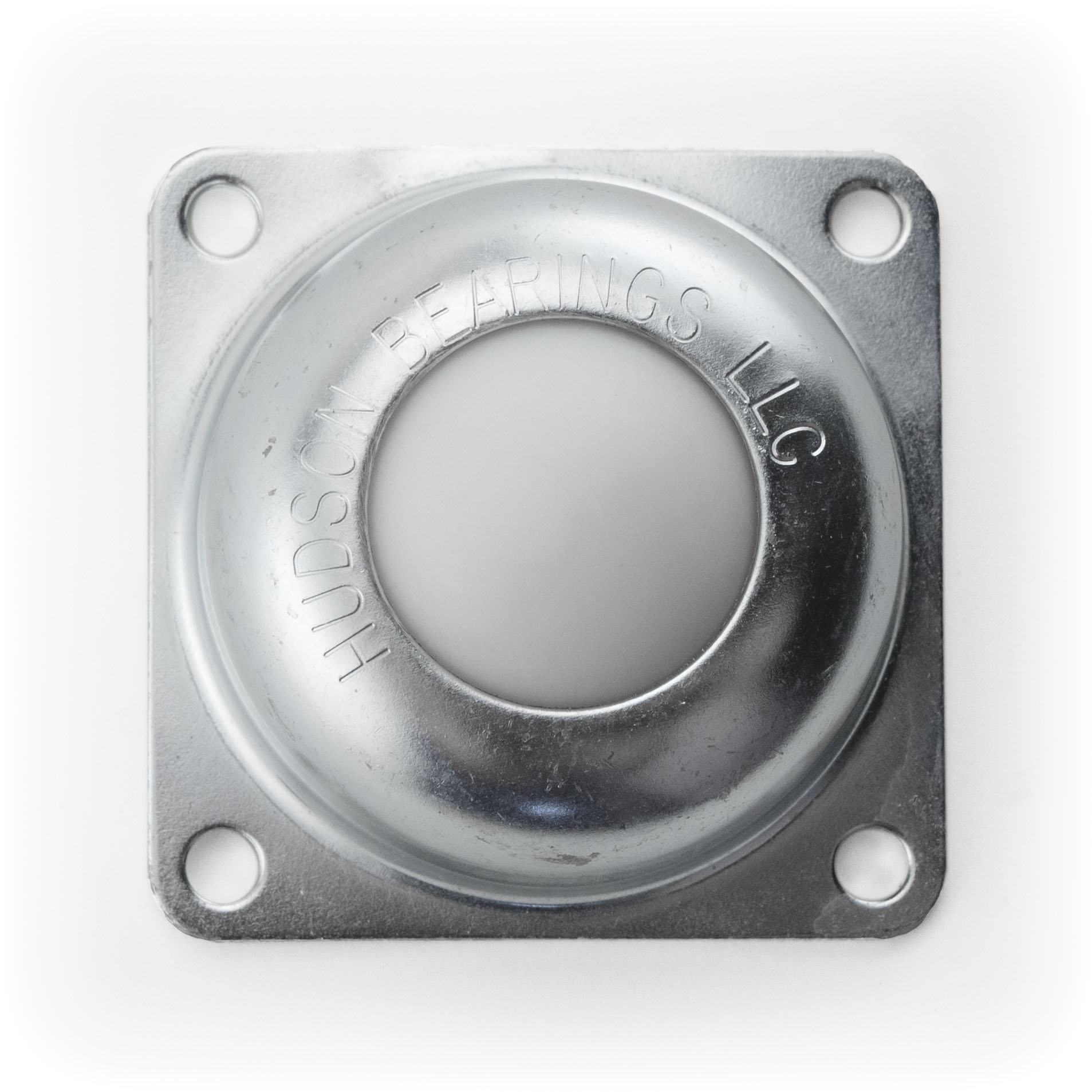

| NBT 1-1/2 CS | Nylon | Carbon Steel | 250 lbs |
| BT 1-1/2 CS/SS | Stainless Steel | Carbon Steel | 250 lbs |
| BT 1-1/2 SS | Stainless Steel | Stainless Steel | 250 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every BT 1-1/2 Series part number:
- BT 1 1/2 SS – stainless steel, 250 lbs
- BT-1 1/2 CS – carbon steel, 250 lbs
- BT-1 1/2 CS/SS – stainless steel, 250 lbs
- NBT 1 1/2 CS – nylon, 250 lbs
- NBT 1 1/2 CS/SS – nylon
- NBT-1 1/2 SS – nylon
