Description
TWO-HOLE, FLANGE MOUNTED, ALL-STEEL
- 1” Main ball rotates on 1/8” support balls.
- Ball support cup is hardened and plated.
- Protective cover assures low torque and longevity.
- Available in stainless steel for additional corrosion resistance.
Download the BT-1 Series sales sheet.
Part Numbers
| Part Number | Ball Material | Housing Material | Load Capacity |
|---|---|---|---|

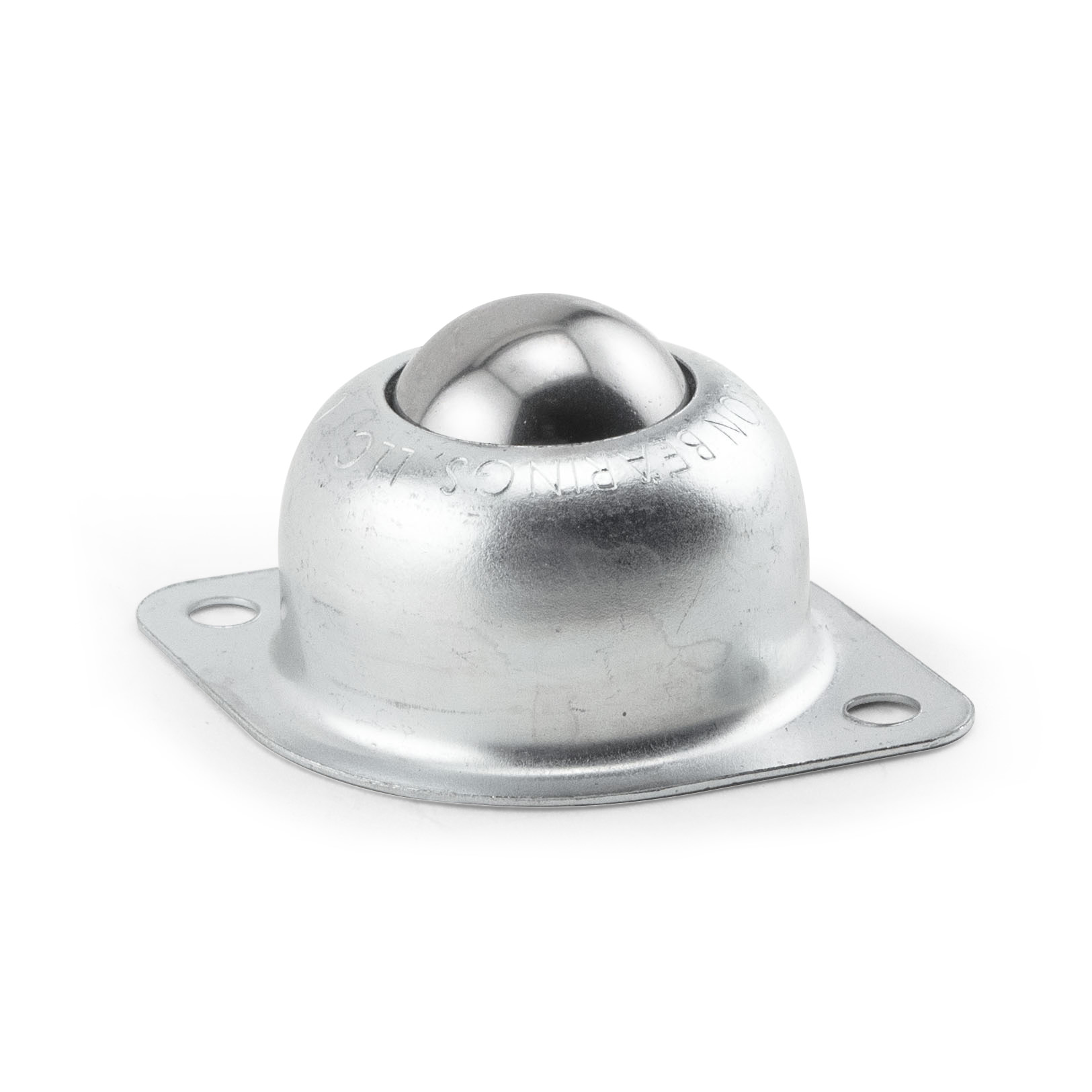

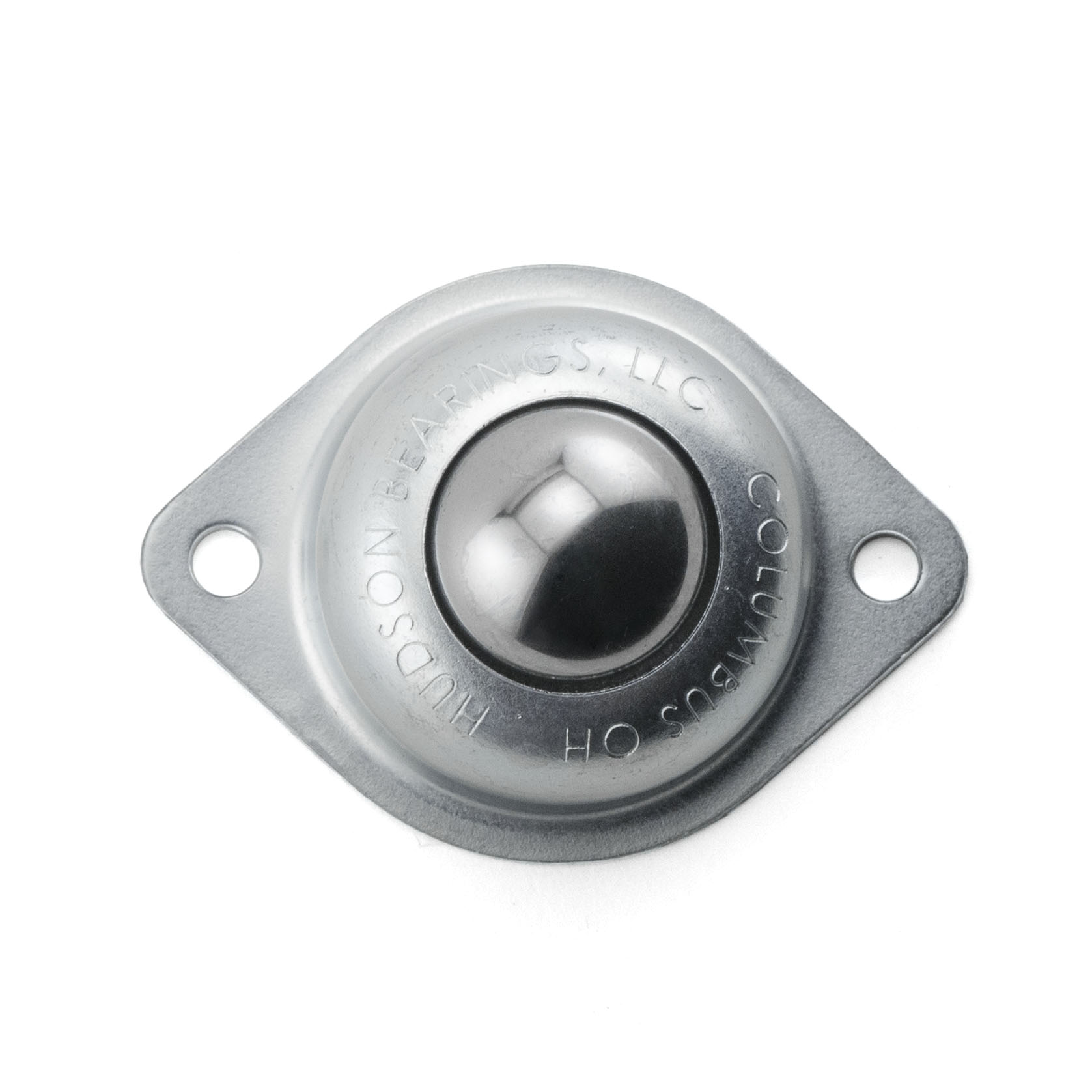

| BT-1 CS | Carbon Steel | Carbon Steel | 75 lbs |

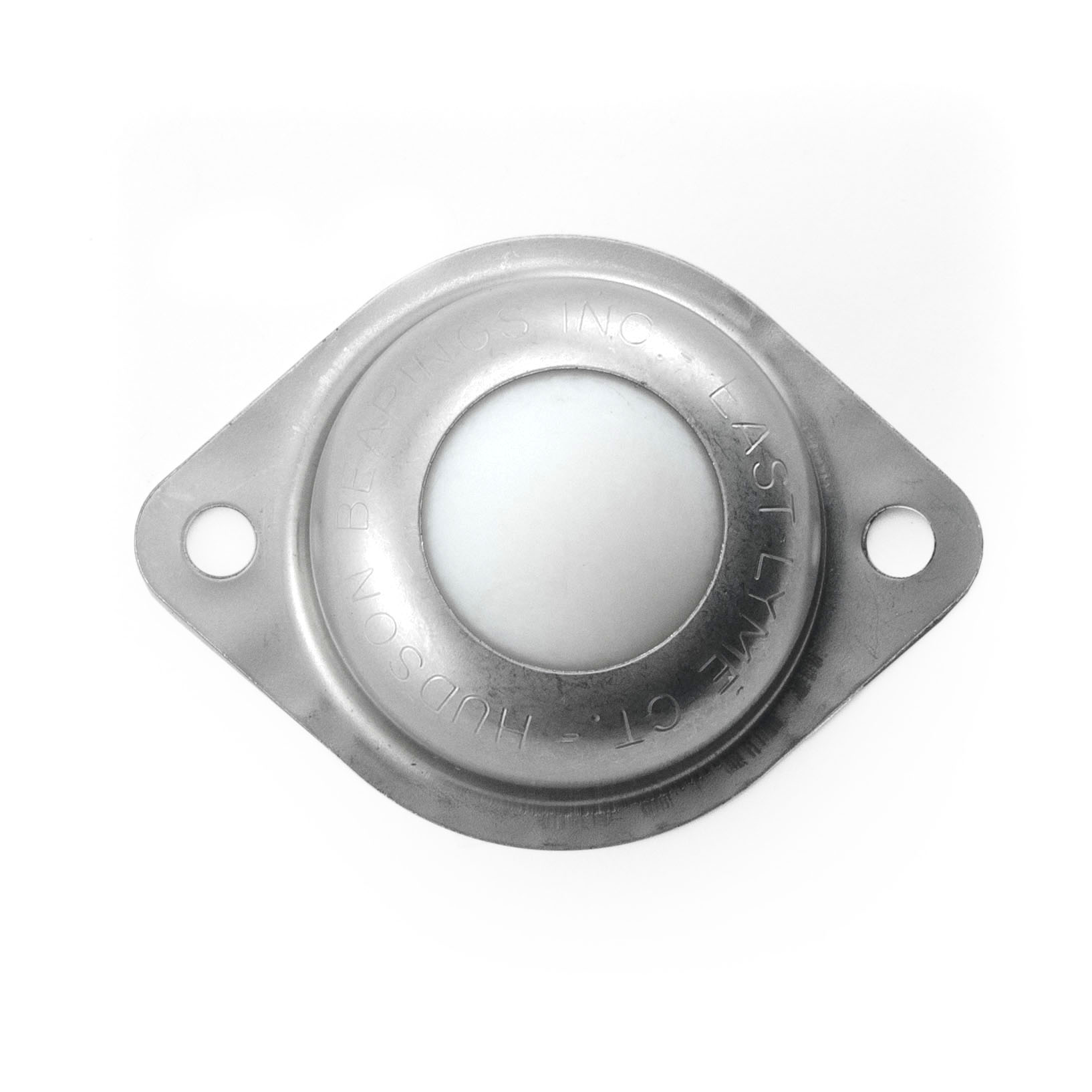

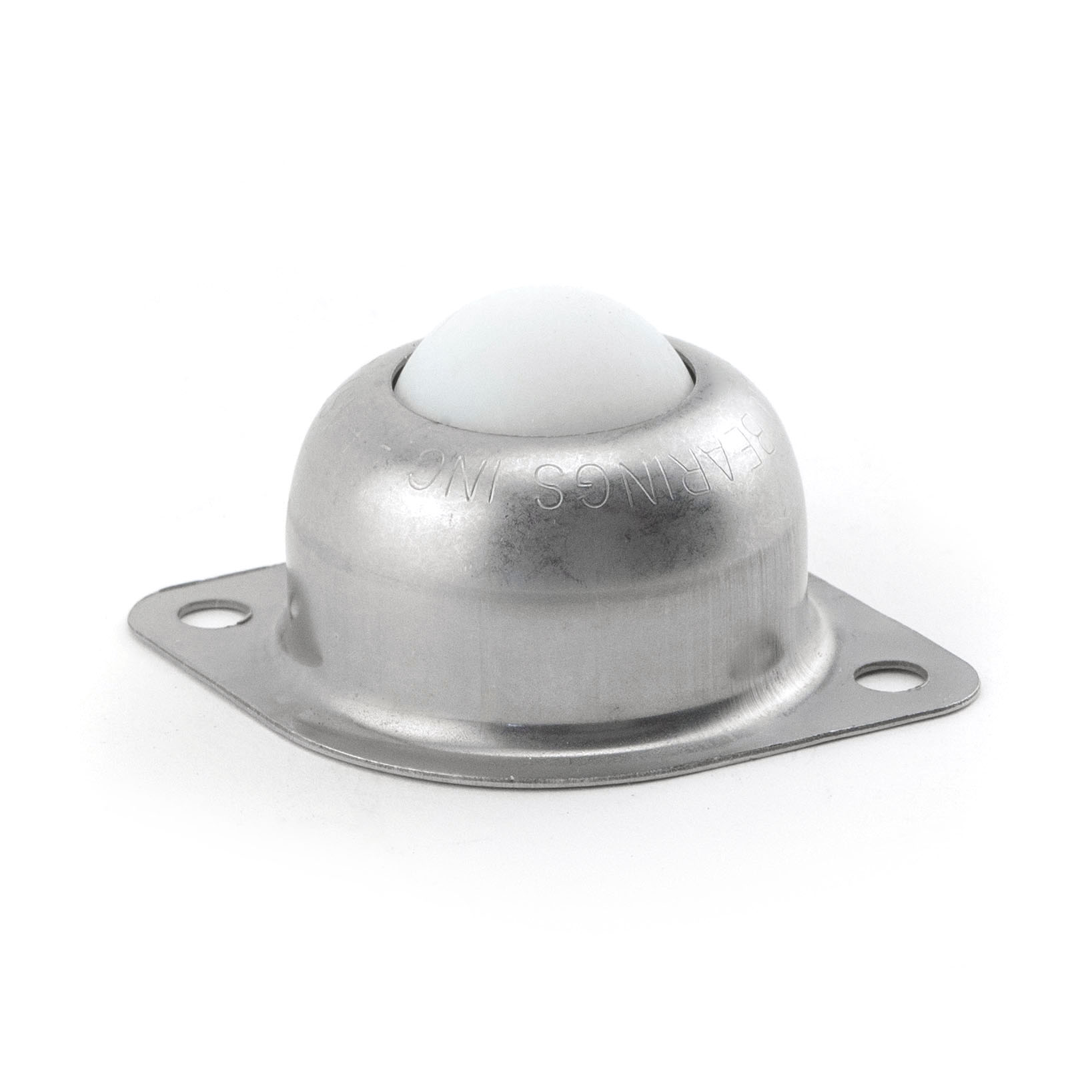

| NBT-1 CS | Nylon | Carbon Steel | 75 lbs |
| BT-1 CS/SS | Stainless Steel | Carbon Steel | 75 lbs |
| BT-1 SS | Stainless Steel | Stainless Steel | 75 lbs |
Download the technical drawing (PDF)
Specifications by part number
Full specifications, materials and load ratings for every BT-1 Series part number:
